Xerox Phaser 4600

04/2016
4-11
Phaser 4600/4620/4622 Printer Service Manual
REP 2.1
4 Repairs and Adjustments
Revised
REP 2.1 Control Panel Assembly
Parts List on PL 2.10 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the Waste Toner Cartridge.
3. Remove the Left Cover, REP 28.3.
4. Remove the Right Cover, REP 28.2.
5. Remove the Top Cover, REP 28.5.
6. Release the Control Panel harness from the hooks, Figure 1.

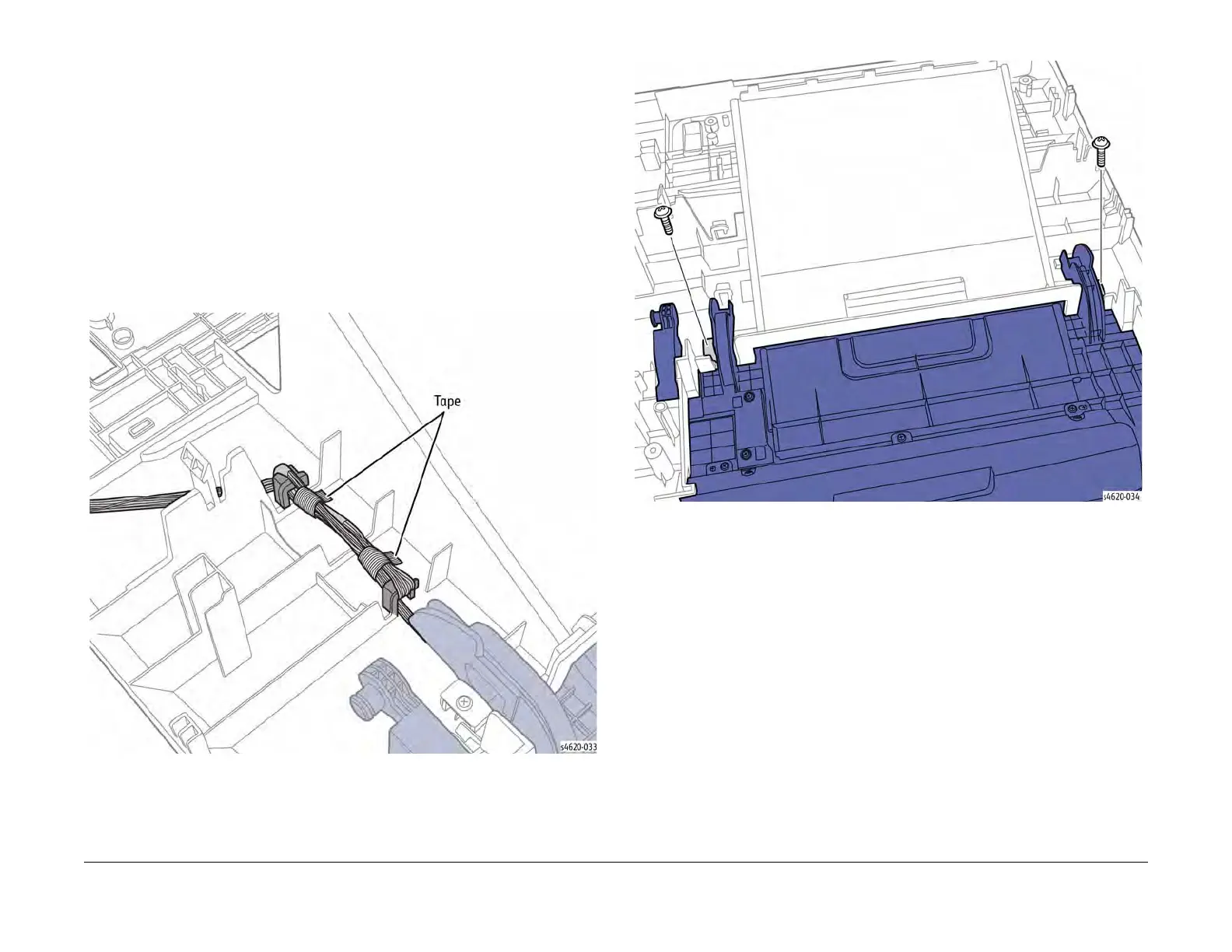

Figure 1 Release the Control Panel harness
7. Remove 2 screws (plastic) that secure the Top Door hinges to the Top Cover, Figure 2.
Figure 2 Remove the Top Door hinges
8. Release 2 bosses that secure the Top Door to the Top Cover, Figure 3.
