Xerox Phaser 4600 Service Manual

04/2016
4-89
Phaser 4600/4620/4622 Printer Service Manual
REP 10.5, REP 10.6
4 Repairs and Adjustments
Revised

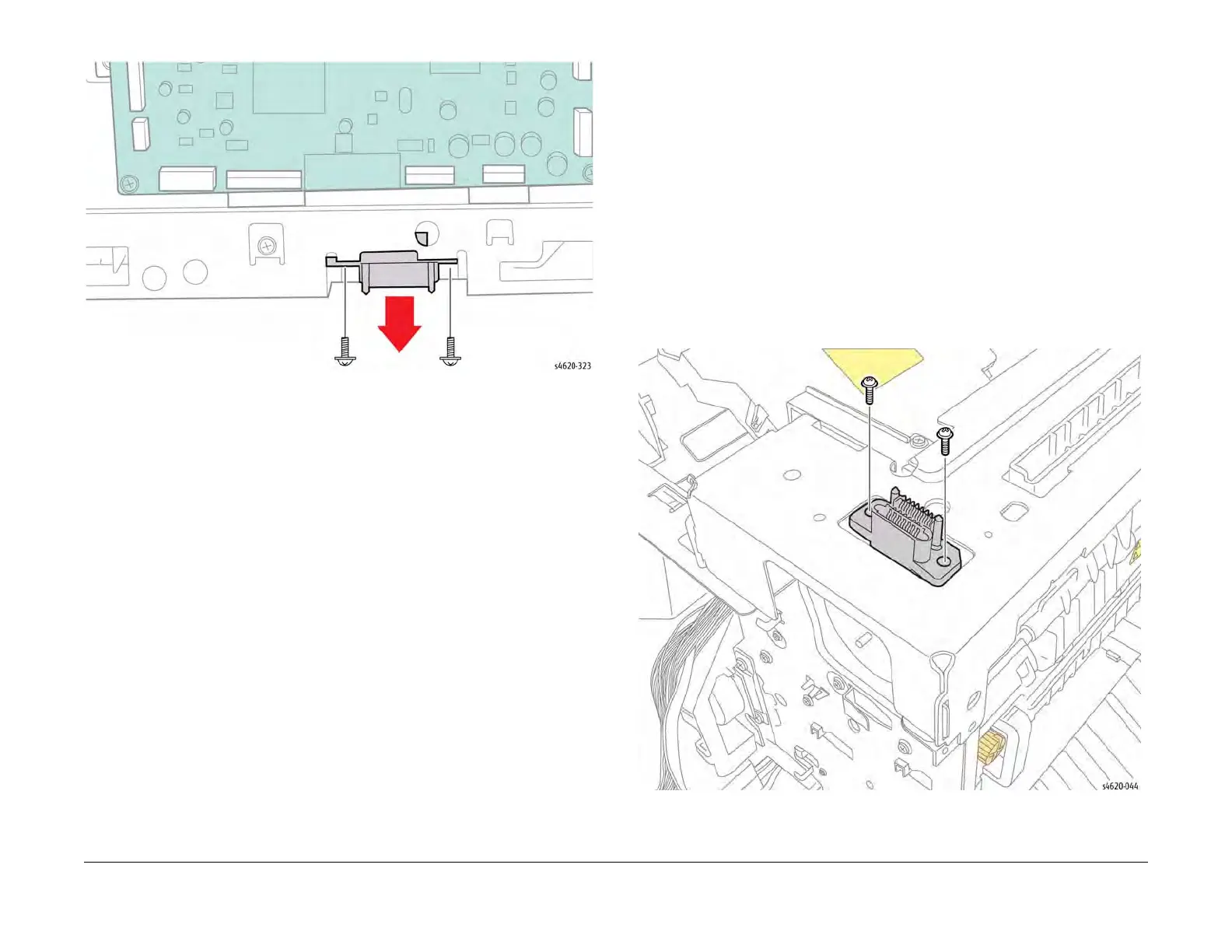

Figure 2 Remove the Lower Option Connector
REP 10.6 Exit Assembly
Parts List on PL 10.30 Item 25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the IP Board Cover, REP 28.1.
3. Remove the Right Cover, REP 28.2.
4. Remove the Waste Toner Cartridge.
5. Remove the Left Cover, REP 28.3.
6. Remove the IP Board Cage, REP 3.5.
7. Remove the Top Cover, REP 28.5.
8. Remove 2 screws that secure the Upper Option Connector to the chassis, Figure 1.
Figure 1 Remove the Upper Option Connector screws
9. Remove 5 screws (2 plastic, 3 metal) that secure the rear support bracket to the chassis.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
