5 Parts List

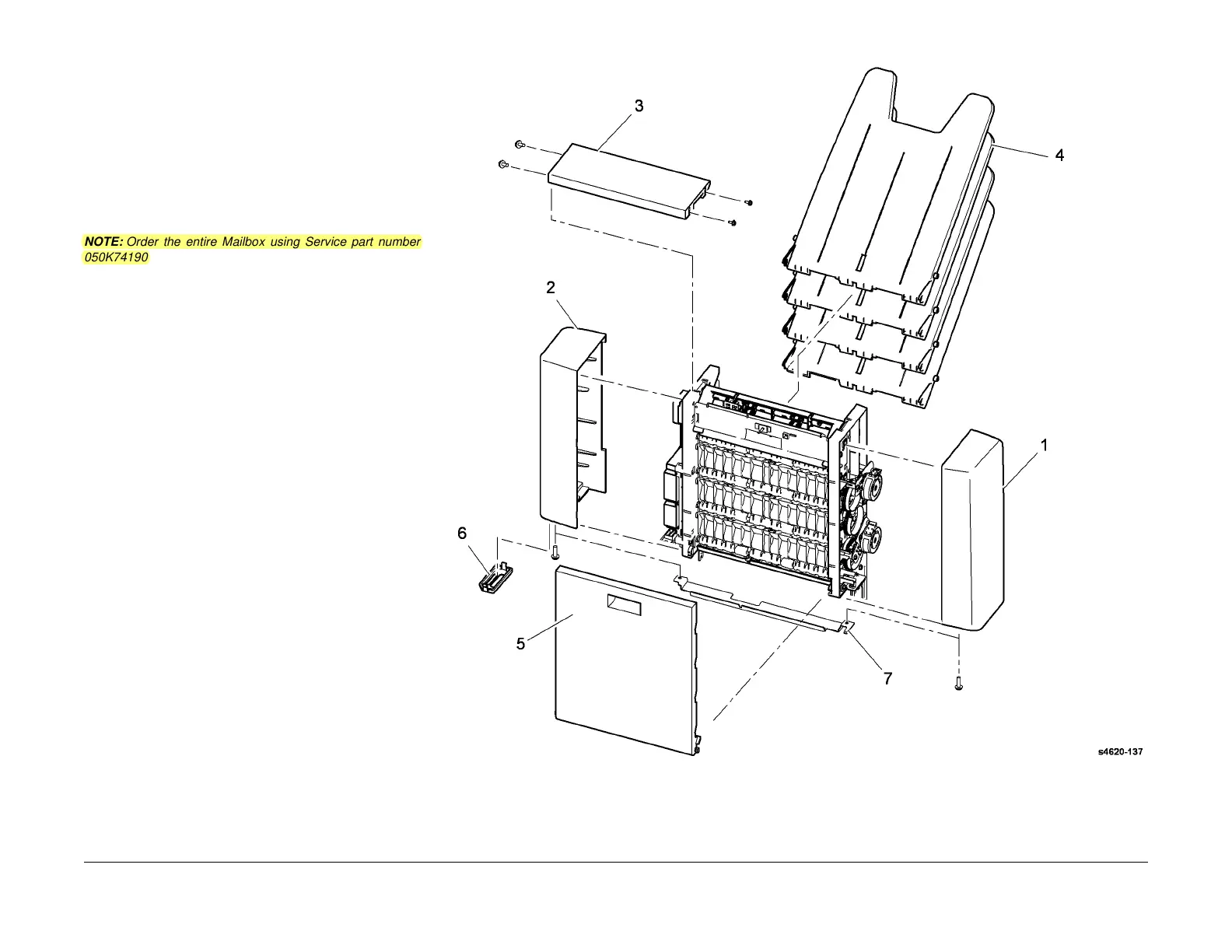

PL 11.10 Mailbox Covers
Item Part Description
1 – Left cover (Not Spared) (REP 11.2)
2 – Right cover (Not Spared) (REP
11.3)
3 – Top cover (Not Spared)
4 – Output tray assembly (Not Spared)
(REP 11.1)
5 – Rear door (Not Spared) (REP 11.4)
6 – Connector cover (Not Spared)
7 – Base plate (Not Spared)
NOTE: Order the entire Mailbox using Service part number
050K74190 or Salest number 097N01877.
