Xerox Phaser 4600 Service Manual

04/2016
5-19
Phaser 4600/4620/4622 Printer Service Manual
PL 8.15
5 Parts List
Revised

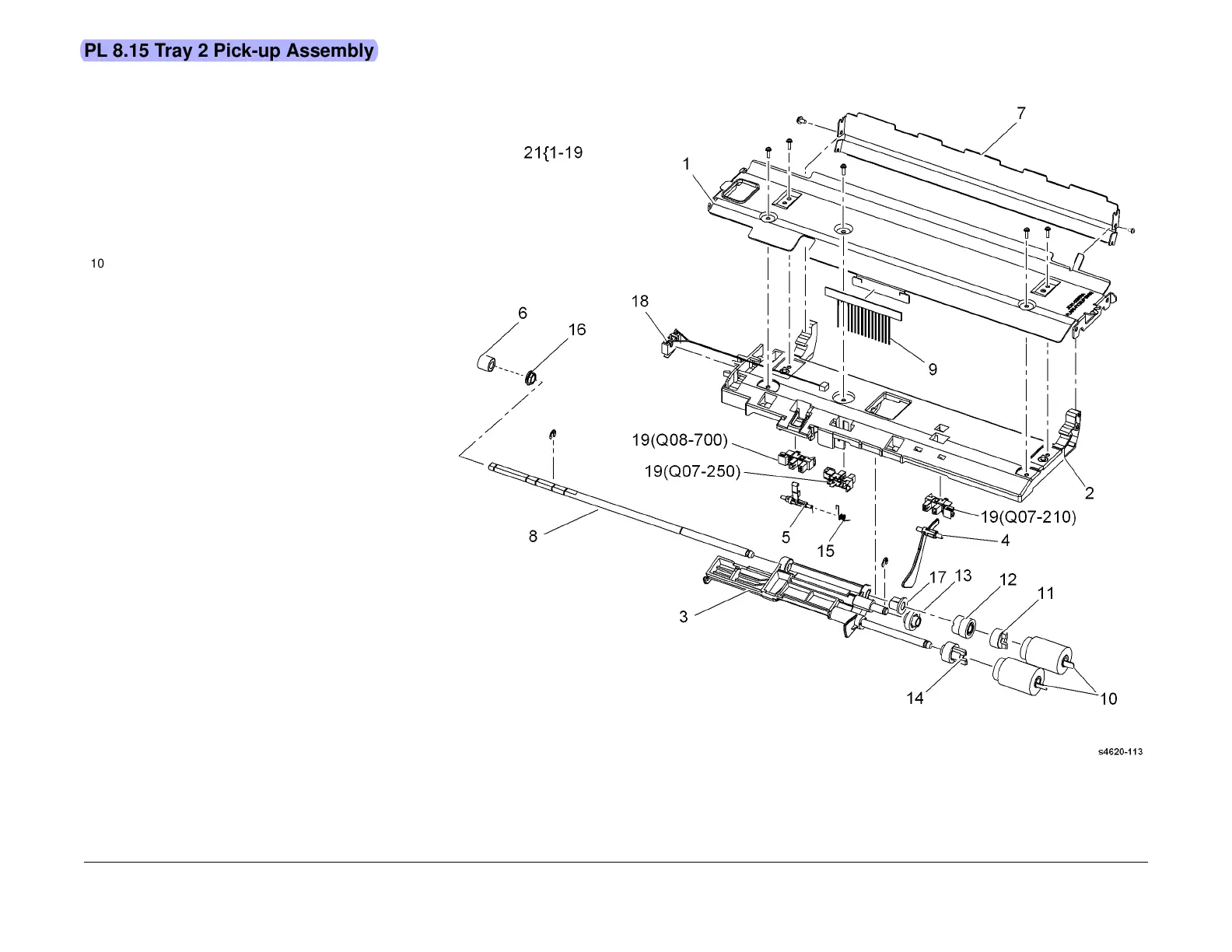

PL 8.15 Tray 2 Pick-up Assembly
Item Part Description
1 – Baseplate (P/O PL 8.15 Item 21)
2 – Holder (P/O PL 8.15 Item 21)
3 – Housing (P/O PL 8.15 Item 21)
4 120N00541 No paper sensor actuator
5 – Duplex feed sensor actuator (P/O
PL 8.15 Item 21)
6 – Drive gear (P/O PL 8.15 Item 21)
7 – Paper guide (P/O PL 8.15 Item 21)
8 – Shaft (P/O PL 8.15 Item 21)
9 – Static eliminator (P/O PL 8.15 Item
21)
10 022N02232 Feed roller (See NOTE 1)
11 – Idle forward roller (P/O PL 8.15
Item 21)
12 – One way gear (P/O PL 8.15 Item
21)
13 – Feed idle gear (P/O PL 8.15 Item
21)
14 – Feed joint gear (P/O PL 8.15 Item
21)
15 – Spring (P/O PL 8.15 Item 21)
16 – Bearing (P/O PL 8.15 Item 21)
17 – Bearing (P/O PL 8.15 Item 21)
18 – Tray up limit switch (P/O PL 8.15
Item 21)
19 130N01628 Duplex feed sensor (Q08-700)/
Stack Height sensor (Q07-250)/ No
paper sensor (Q07-210)
20 – Not Used
21 001N00527 Feed assembly
NOTE: 1. Order 3 of the 022N02232, since it is recommended to
replace all the 3 Feed Rollers (Separator Roller, Nudger Roller,
and Pick Roller) at the same time.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
