Xerox Phaser 4600 Service Manual

04/2016
4-37
Phaser 4600/4620/4622 Printer Service Manual
REP 7.15
4 Repairs and Adjustments
Revised
REP 7.15 Tray 1 No Paper Sensor
Parts List on PL 8.10 Item 10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Cover the Drum Cartridge to prevent light exposure.
1. Remove Tray 2.
2. Open the Top Door.
3. Remove the Duplex Unit, REP 10.1.
4. Remove the IP Board Cover, REP 28.1.
5. Remove the Right Cover, REP 28.2.
6. Remove the Front Cover, REP 28.4.
7. Remove the Tray 1 Feeder Assembly, REP 7.0.
8. Remove 4 screws (plastic) that secure the top of the Feeder Assembly., Figure 1.

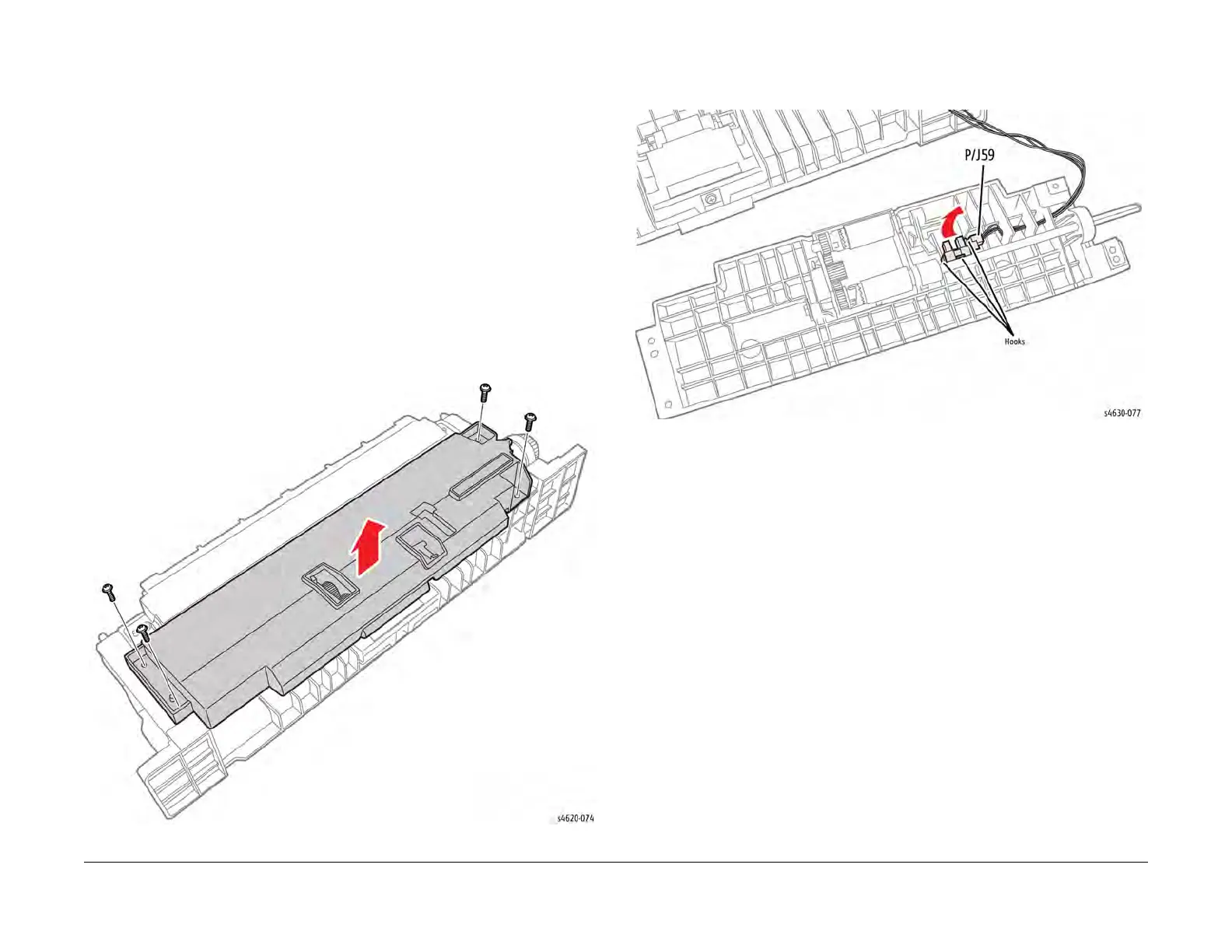

Figure 1 Remove the Feeder Assembly top screws
9. Disconnect the spring from the Pick Assembly.
10. Remove 2 E-clips and 2 bearings, then rotate the shaft 180 degrees and slide to the right
to release the assembly from the top of the Feeder Assembly, Figure 2.
Figure 2 Remove the Tray 1 No Paper Sensor

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
