04/2016
4-140
Phaser 4600/4620/4622 Printer Service Manual
REP 12.11, REP 12.12
Revised
4 Repairs and Adjustments

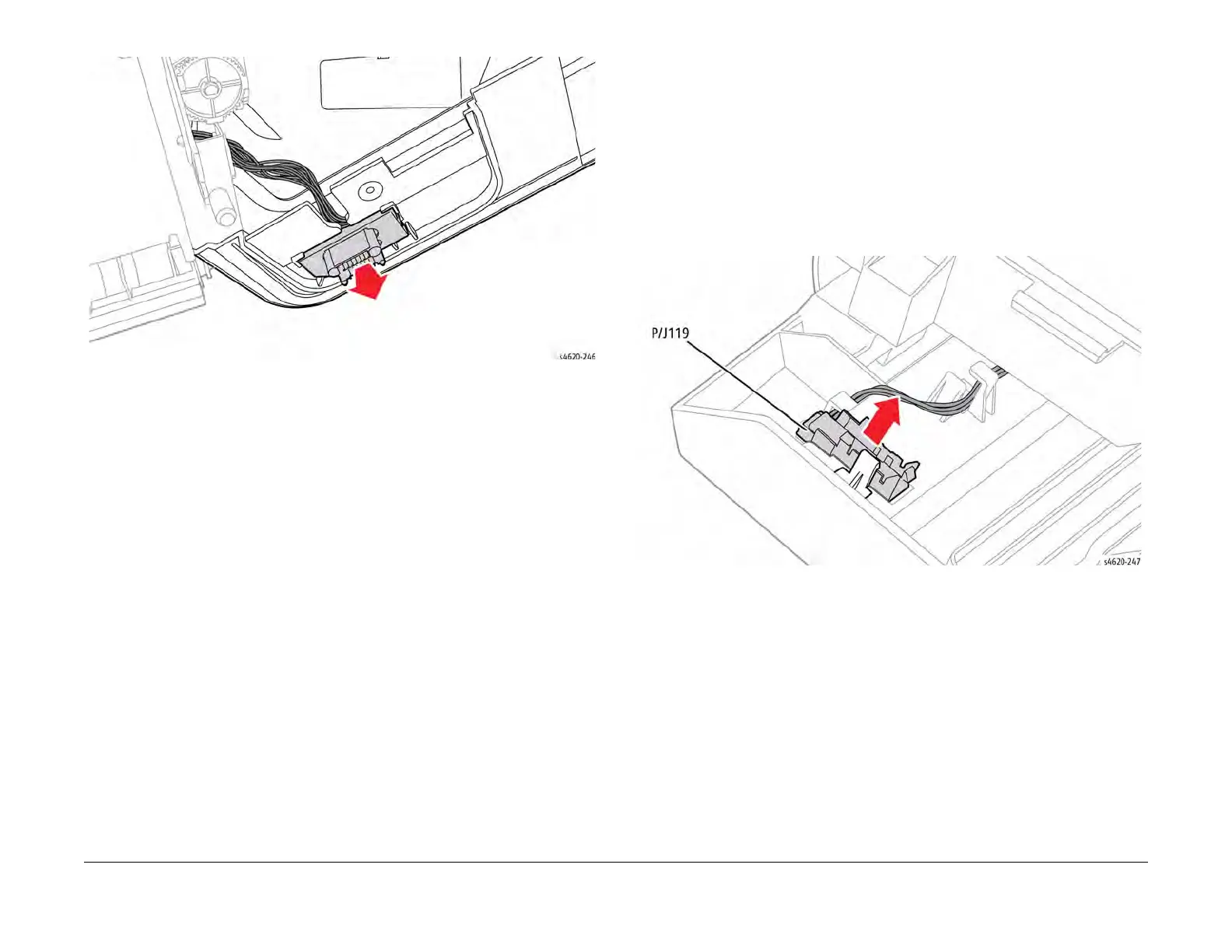

Figure 2 Release the option connector and harness
REP 12.12 Right Tamper Home Position Sensor
Parts List on PL 12.35 Item 10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the Right Cover, REP 12.11.
3. Release the hook and disconnect P/J119 to remove the sensor., Figure 1.
Figure 1 Remove the Right Tamper Home Position Sensor
To Next Page
