04/2016
4-17
Phaser 4600/4620/4622 Printer Service Manual
REP 3.5, REP 3.6
4 Repairs and Adjustments
Revised

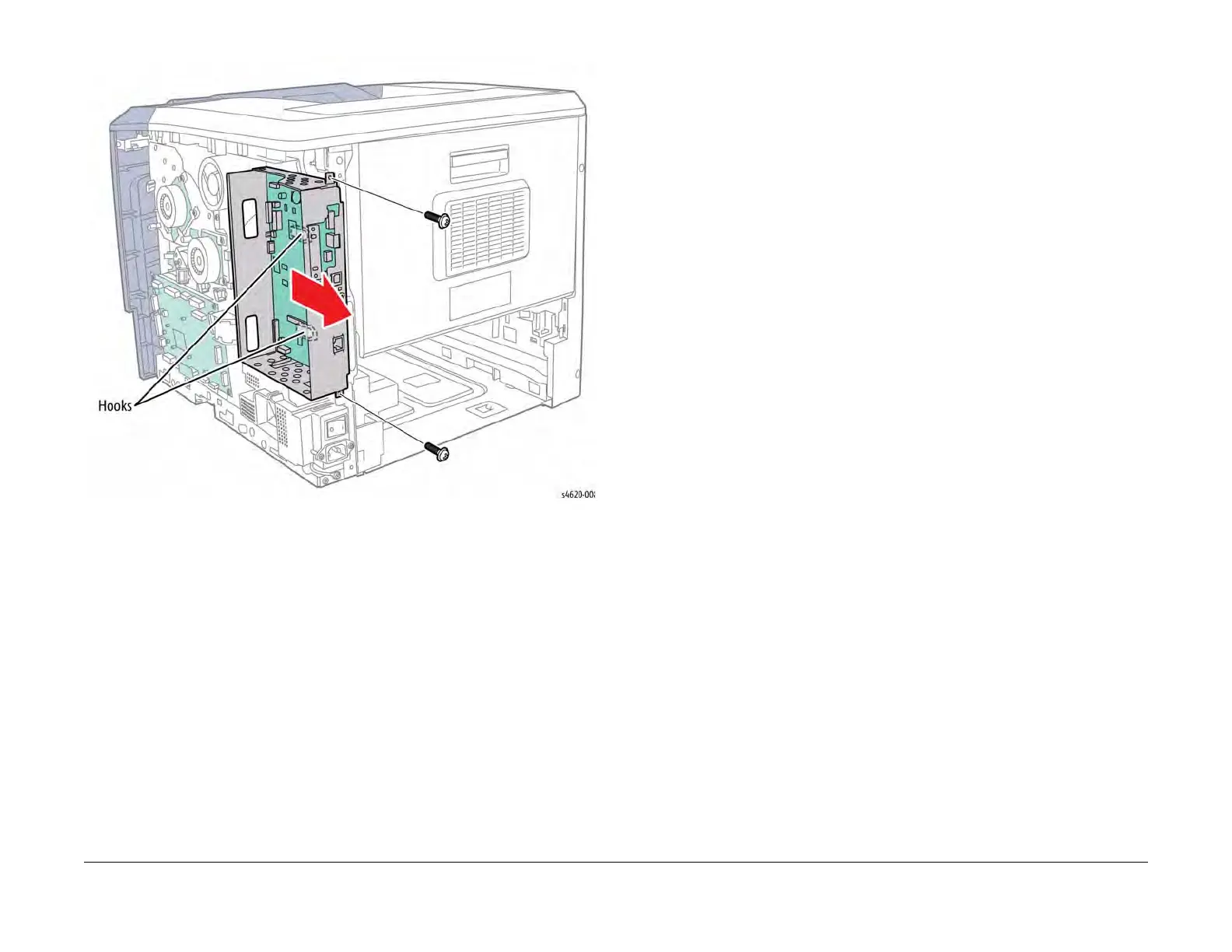

Figure 2 Remove the IP Board Cage
REP 3.6 IP Board
Parts List on PL 3.10 Item 2
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
NOTE: After removal of the MCU Board from the cage, move the Configuration Card, Configu-
ration Card holder and if installed, optional memory and Hard Drive to the new board.
1. Remove Tray 2.
2. Remove the Duplex Unit, REP 10.1.
3. Remove the IP Board Cover, REP 28.1.
4. Disconnect 5 connections (CN8, CN10, CN12, CN13, and CN14) to the IP Board and
feed the harnesses out the holes provided, Figure 1.
To Next Page
