Phaser 4600/4620/4622 Printer Service Manual
REP 12.19, REP 12.20
4 Repairs and Adjustments
Revised
REP 12.19 Tamper Motor
Parts List on PL 12.35 Item 19
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Remove the top cover, REP 12.18.
5. Disconnect the affected Tamper Motor.
6. Remove 2 screws (metal) that secure the Tamper Motor to the Finisher.
7. Slide the motor to feed the gear through the bracket opening, Figure 1.

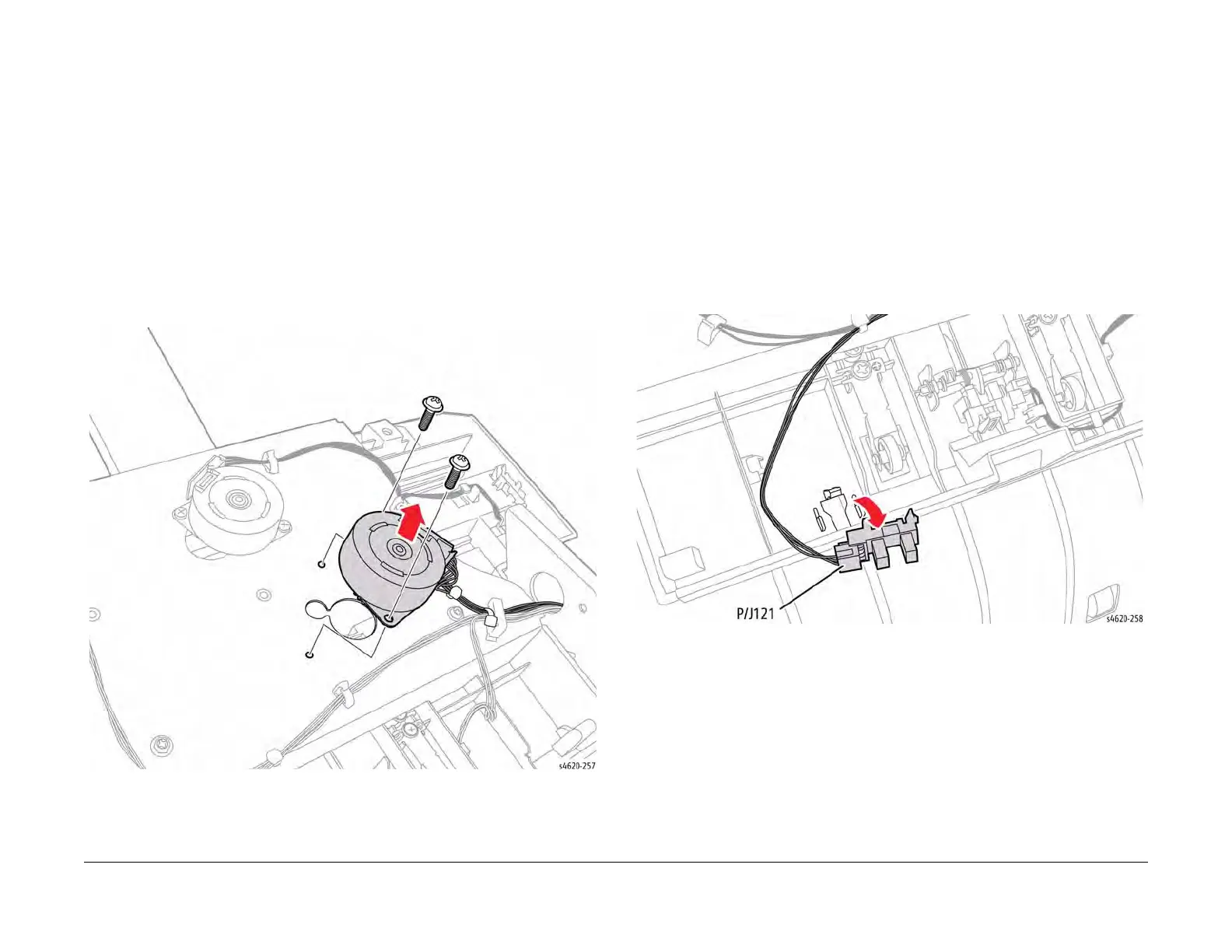

Figure 1 Remove the Tamper Motor
REP 12.20 Finisher Rear Door Open Sensor
Parts List on PL 12.35 Item 10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Remove the top cover, REP 12.18.
5. Release 1 hook that secures the sensor.
6. Disconnect P/J121 to remove the sensor, Figure 1 .
Figure 1 Remove the Rear Door Open Sensor
