Xerox Phaser 4600 Service Manual

04/2016
4-142
Phaser 4600/4620/4622 Printer Service Manual
REP 12.14
Revised
4 Repairs and Adjustments
REP 12.14 Stapler Assembly
Parts List on PL 12.45 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Disconnect P/J122 and P/J123 from the Stapler Assembly, Figure 1.

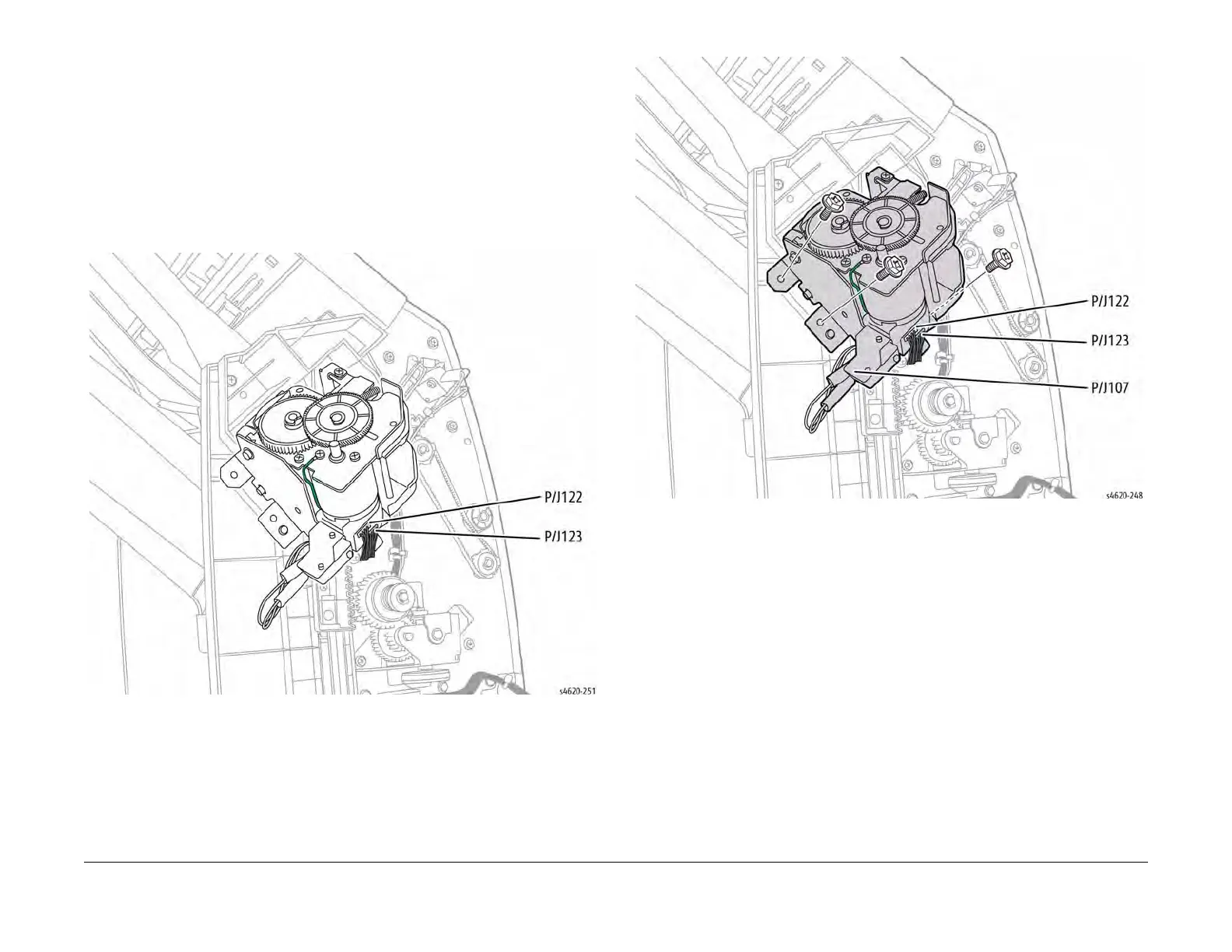

Figure 1 Disconnect the Stapler Assembly
4. Remove 2 screws (metal) that secure the Stapler to the bracket, Figure 2.
Figure 2 Remove the stapler bracket

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
