Xerox Phaser 4600

04/2016
5-52
Phaser 4600/4620/4622 Printer Service Manual
PL 28.15
Revised
5 Parts List

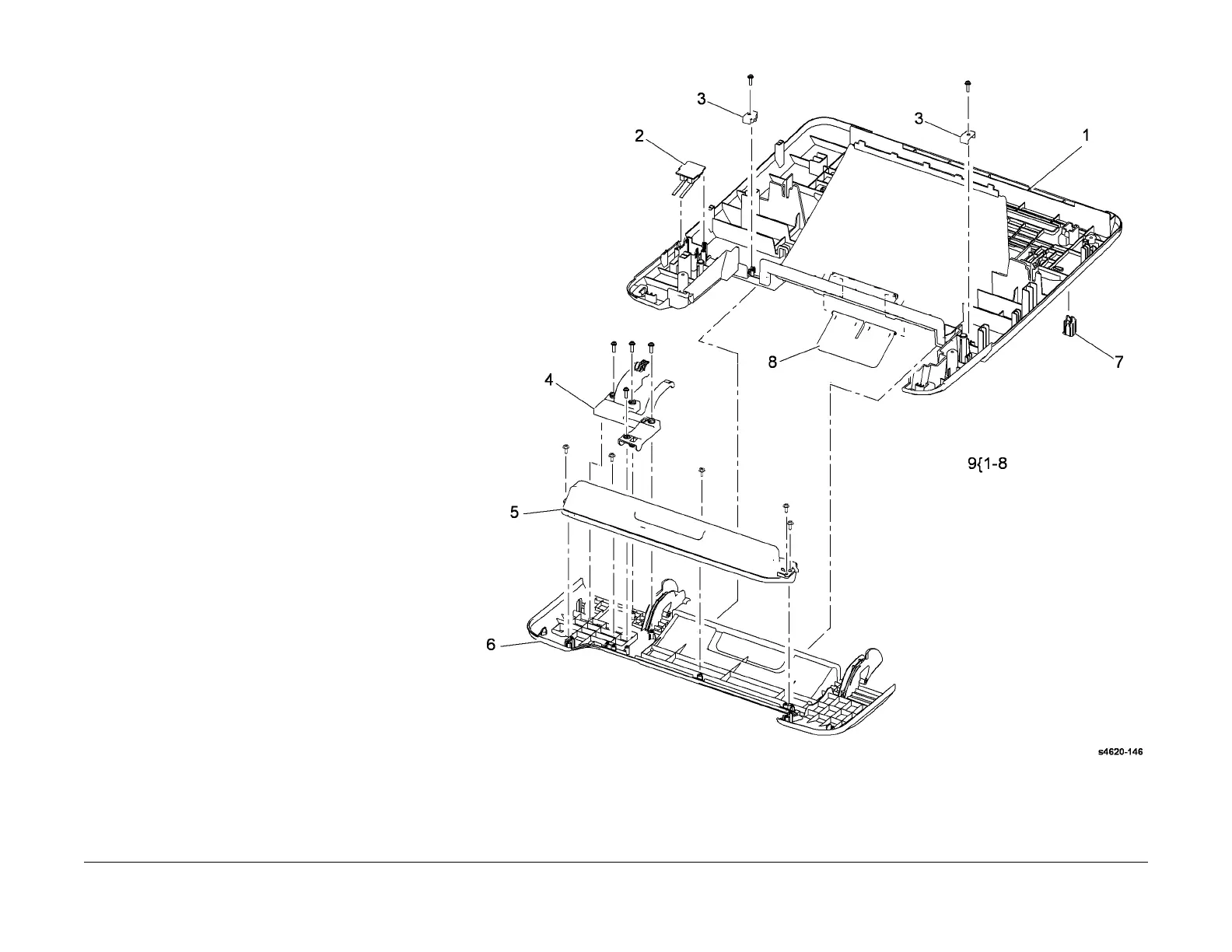

PL 28.15 Top Cover Assembly
Item Part Description
1 002N02981 Top cover
2 130N01558 Top door / Rear Door interlock
Switch (Q01-100) (REP 1.6)
3 – Hinge stopper (P/O PL 28.15 Item
9)
4 – Harness cover (P/O PL 28.15 Item
9)
5 – Control panel assembly (REF: PL
2.10 Item 1)
6 – Top door (P/O PL 28.15 Item 9)
7 – Exit gate actuator (P/O PL 28.15
Item 9)
8 – Stacker guide (P/O PL 28.15 Item
9)
9 002N03100 Top cover assembly (4600)
– 002N02982 Top cover assembly (4620)
– 002N03093 Top cover assembly (4622)
