Phaser 4600/4620/4622 Printer Service Manual
PL 1.10
Revised
5 Parts List

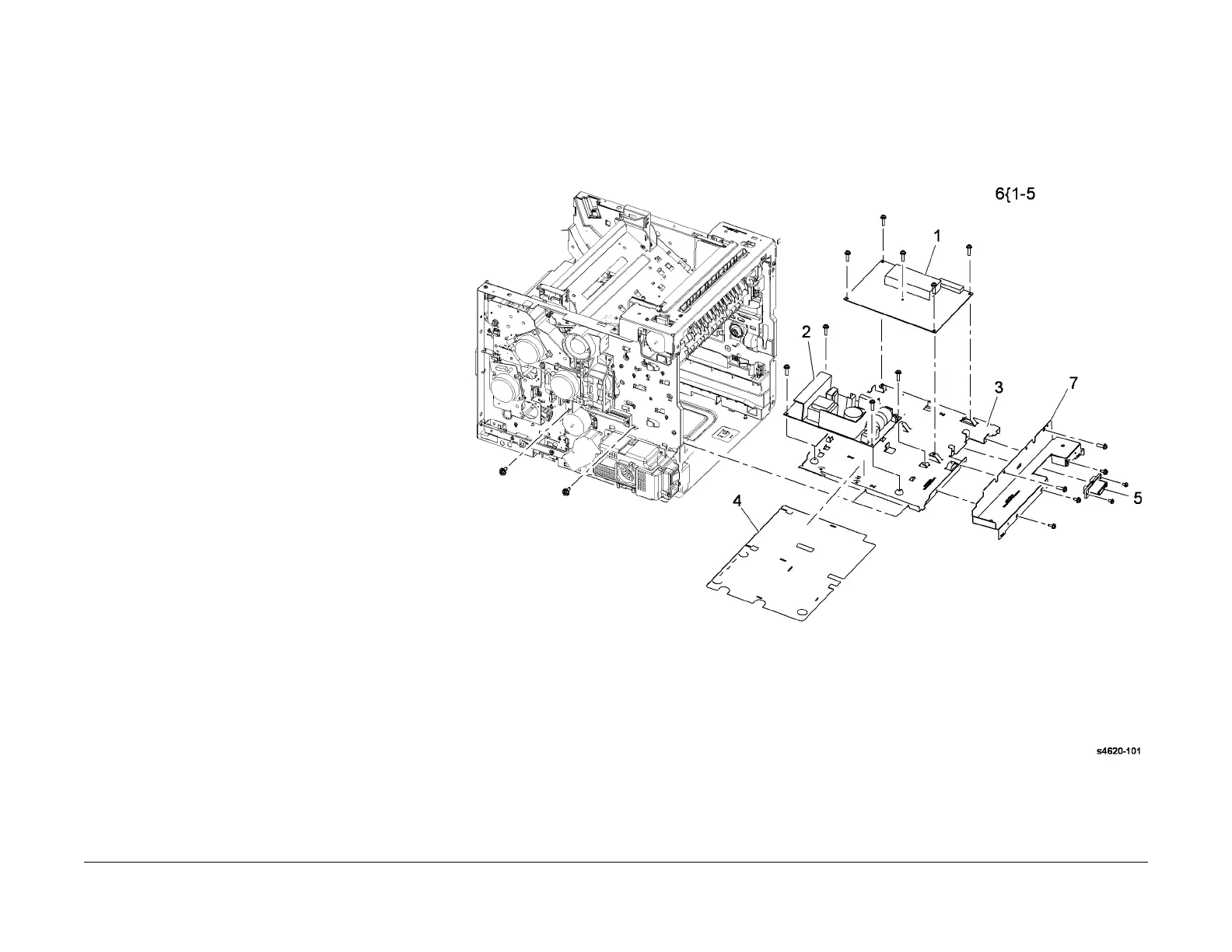

PL 1.10 HVPS/SMPS
Item Part Description
1 105N02193 HVPS (REP 1.4)
2 105N02157 SMPS (110V) (REP 1.5)
3 – HVPS shield (P/O PL 1.10 Item 6)
– 105N02158 SMPS (220V) (REP 1.5)
4 – HVPS insulation sheet (P/O PL
1.10 Item 6)
5 – Fuser connector (P/O PL 1.10 Item
6)
6 – HVPS assembly
7 – Bottom fuser bracket (Not Spared)
