04/2016
4-119
Phaser 4600/4620/4622 Printer Service Manual
REP 10.32, REP 11.1
4 Repairs and Adjustments
Revised

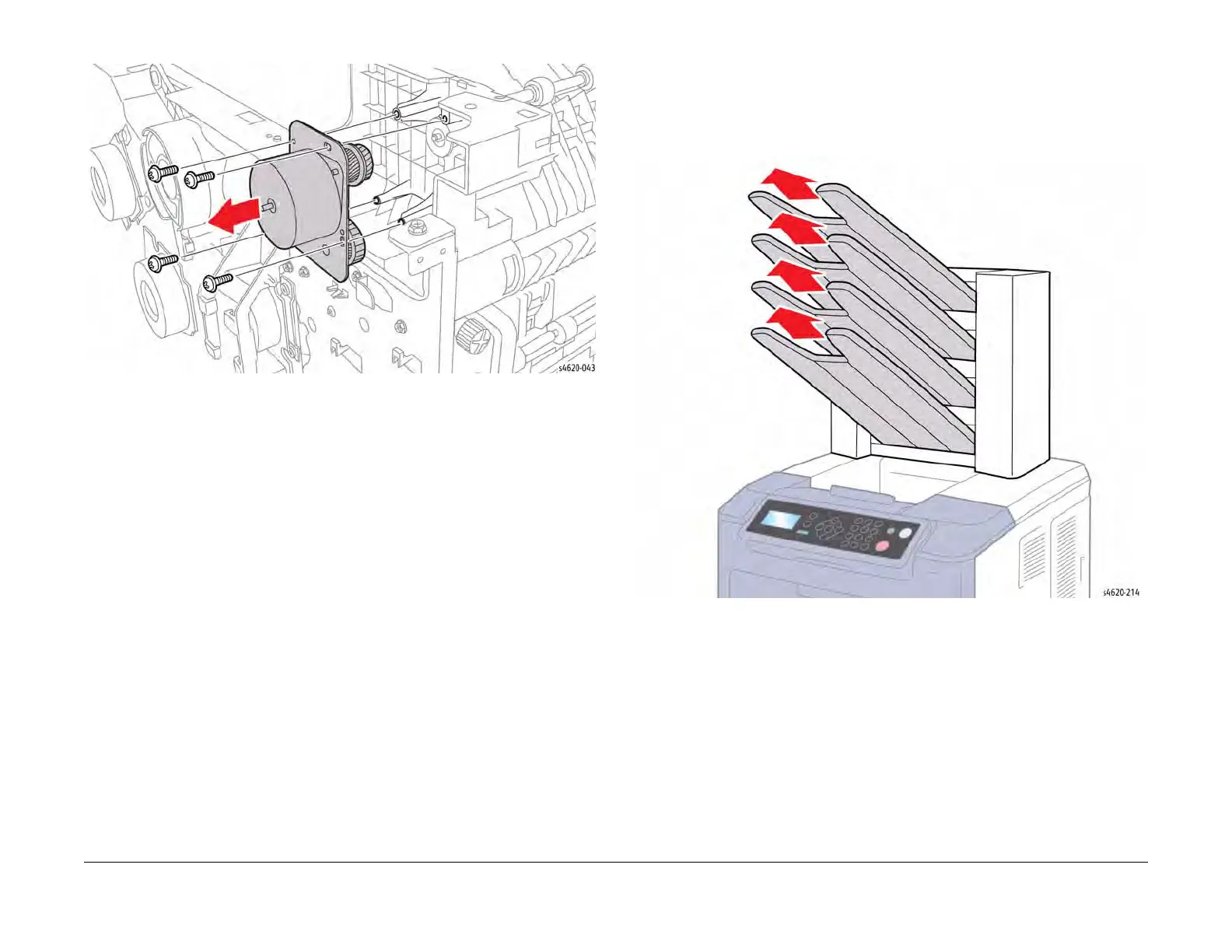

Figure 3 Remove the Exit Drive Assembly
REP 11.1 Mailbox Output Tray
Parts List on PL 11.10 Item 4
Removal
Lift the end of the Output Tray to remove it from the slot on the Mailbox.
Figure 1 Remove the Output Trays
Replacement
Install the Output trays beginning with the lowest tray.
To Next Page
