Phaser 4600/4620/4622 Printer Service Manual
REP 7.16, REP 7.20
Revised
4 Repairs and Adjustments
REP 7.16 Tray 1 Feed Clutch
Parts List on PL 8.10 Item 11
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Cover the Drum Cartridge to prevent light exposure.
1. Remove Tray 2.
2. Open the Top Door.
3. Remove the Duplex Unit, REP 10.1.
4. Remove the IP Board Cover, REP 28.1.
5. Remove the Right Cover, REP 28.2.
6. Remove the Front Cover, REP 28.4.
7. Remove the Tray 1 Feeder Assembly, REP 7.0.
8. Disconnect P/J58 from the feeder harness.
9. Remove the fibre retainer that secures the clutch to the shaft, Figure 1.

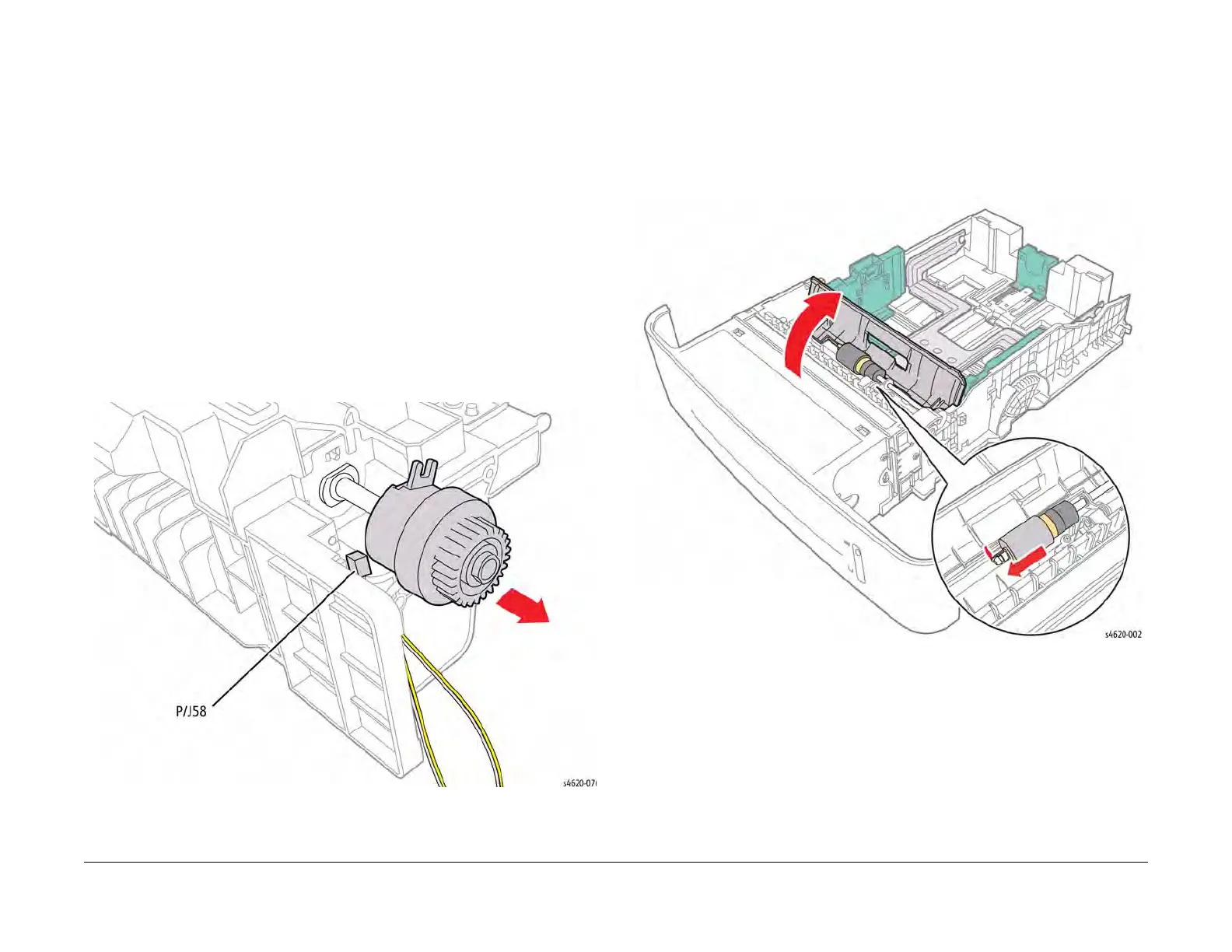

Figure 1 Remove the Feeder Assembly top screws
REP 7.20 Tray Separator Roller
Parts List on PL 7.10 Item 6
Removal
1. Open the Tray.
2. Open the separator cover.
3. Release the hook that secures the roller to the shaft and slide the roller off the shaft, Fig-
ure 1.
Figure 1 Remove the Separator Roller
