04/2016
4-86
Phaser 4600/4620/4622 Printer Service Manual
REP 9.7, REP 9.8
Revised
4 Repairs and Adjustments

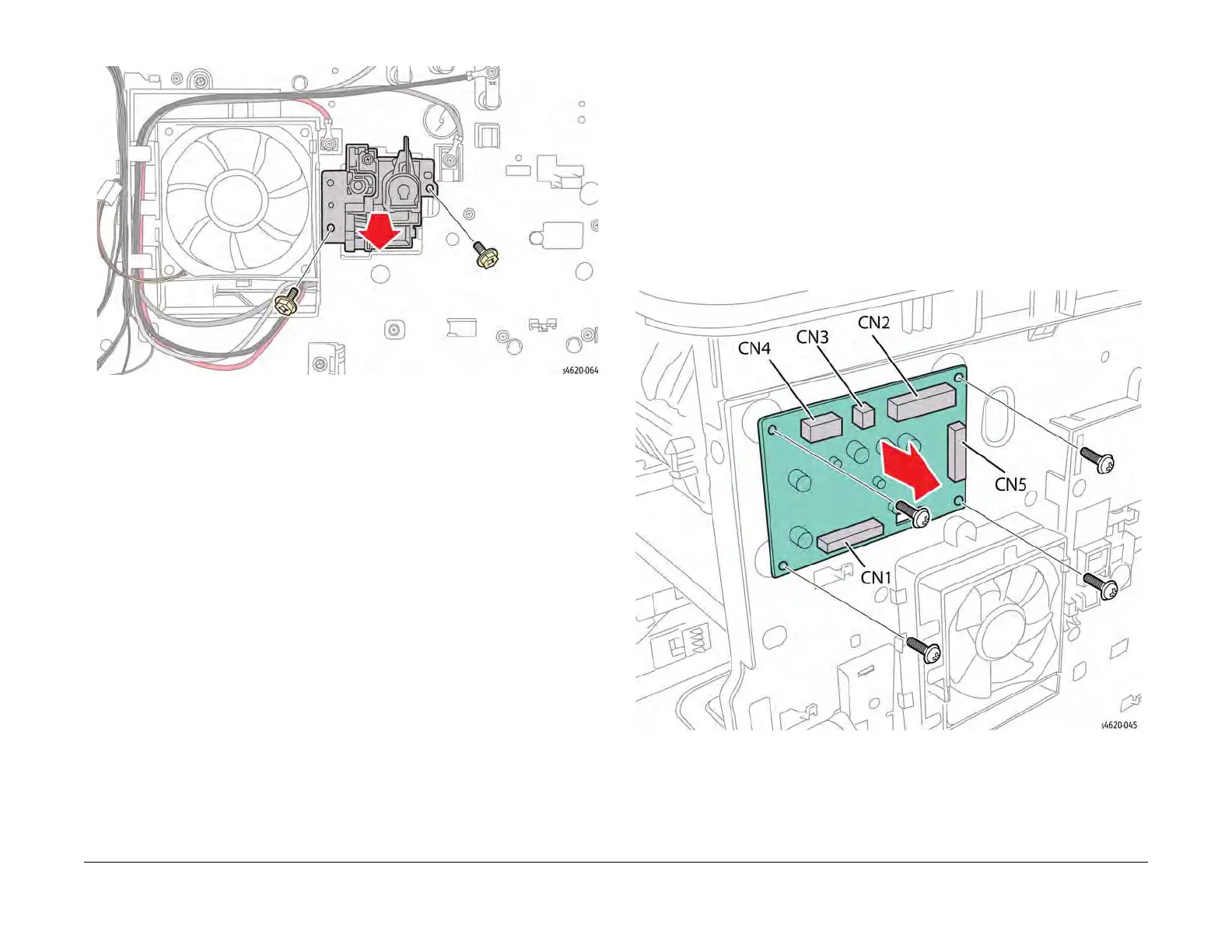

Figure 2 Remove the Pipe Assembly
REP 9.8 Joint Board
Parts List on PL 9.15 Item 7
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the Waste Toner Cartridge.
3. Remove the Left Cover, REP 28.3.
4. Disconnect all connections to the Joint Board.
5. Remove 4 screws (metal) that secure the Joint Board to the chassis, Fgiure 1.
Figure 1 Remove the Interconnect Board screws
To Next Page
