04/2016
4-41
Phaser 4600/4620/4622 Printer Service Manual
REP 7.24, REP 7.25
4 Repairs and Adjustments
Revised
REP 7.24 Feeder Front Cover
Parts List on PL 7.15 Item 3
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP XX. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer GP XX.
2. Remove 4 screws and lift to release 2 hooks that secure the Front Cover, Figure 1.

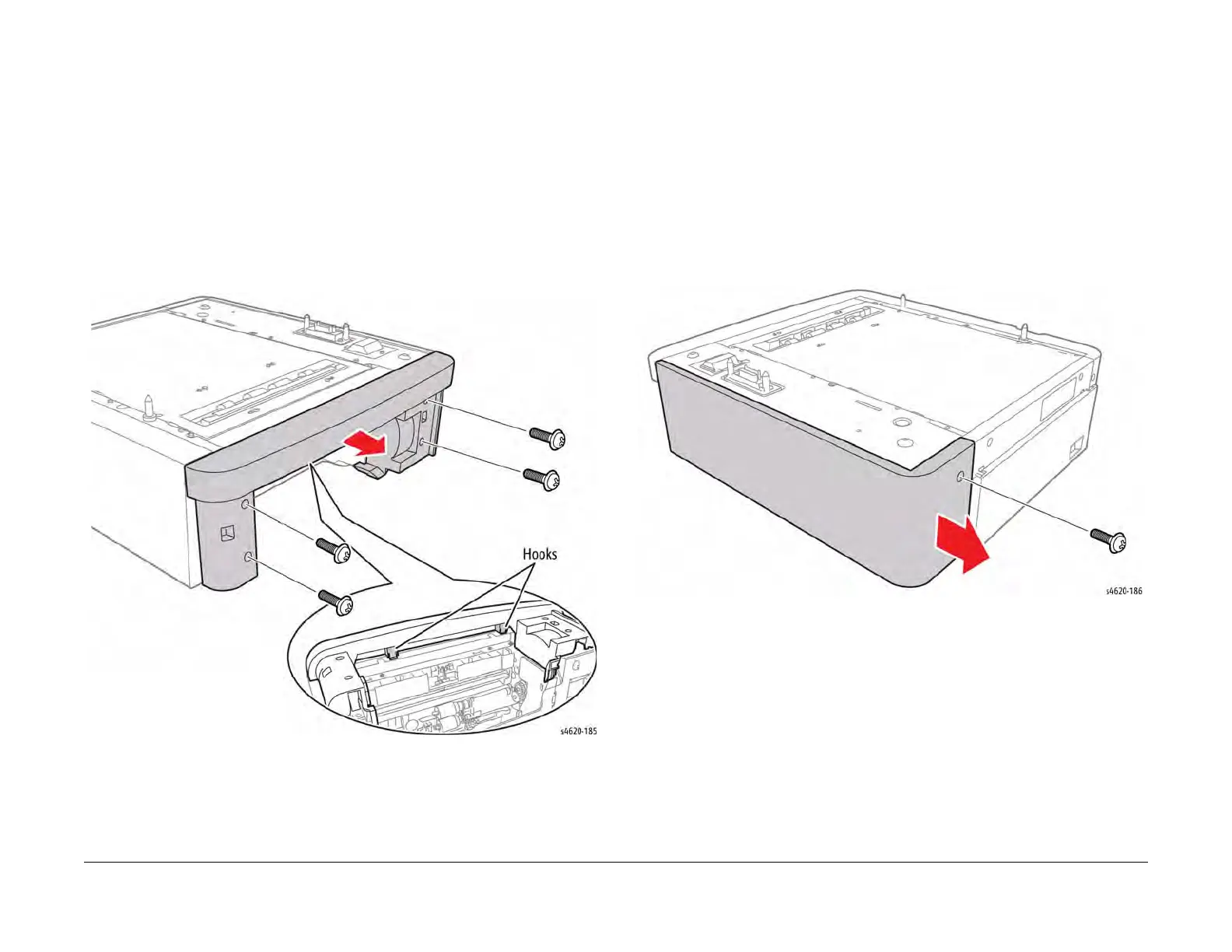

Figure 1 Remove the Front Cover
REP 7.25 Feeder Right Cover
Parts List on PL 7.15 Item 7
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
NOTE: Removal of the Right Cover is possible without removing the feeder from the printer.
1. Remove the Tray.
2. Remove 1 screw (plastic) and slide the cover to the rear to release 6 hooks that secure
the cover, Figure 1.
Figure 1 Remove the Right Cover
To Next Page
