Xerox Phaser 4600 Service Manual

04/2016
4-117
Phaser 4600/4620/4622 Printer Service Manual
REP 10.19
4 Repairs and Adjustments
Revised
REP 10.19 Duplex Unit Timing Belt
Parts List on PL 10.25 Item 11
Removal
1. Remove the Duplex Unit, REP 10.1.

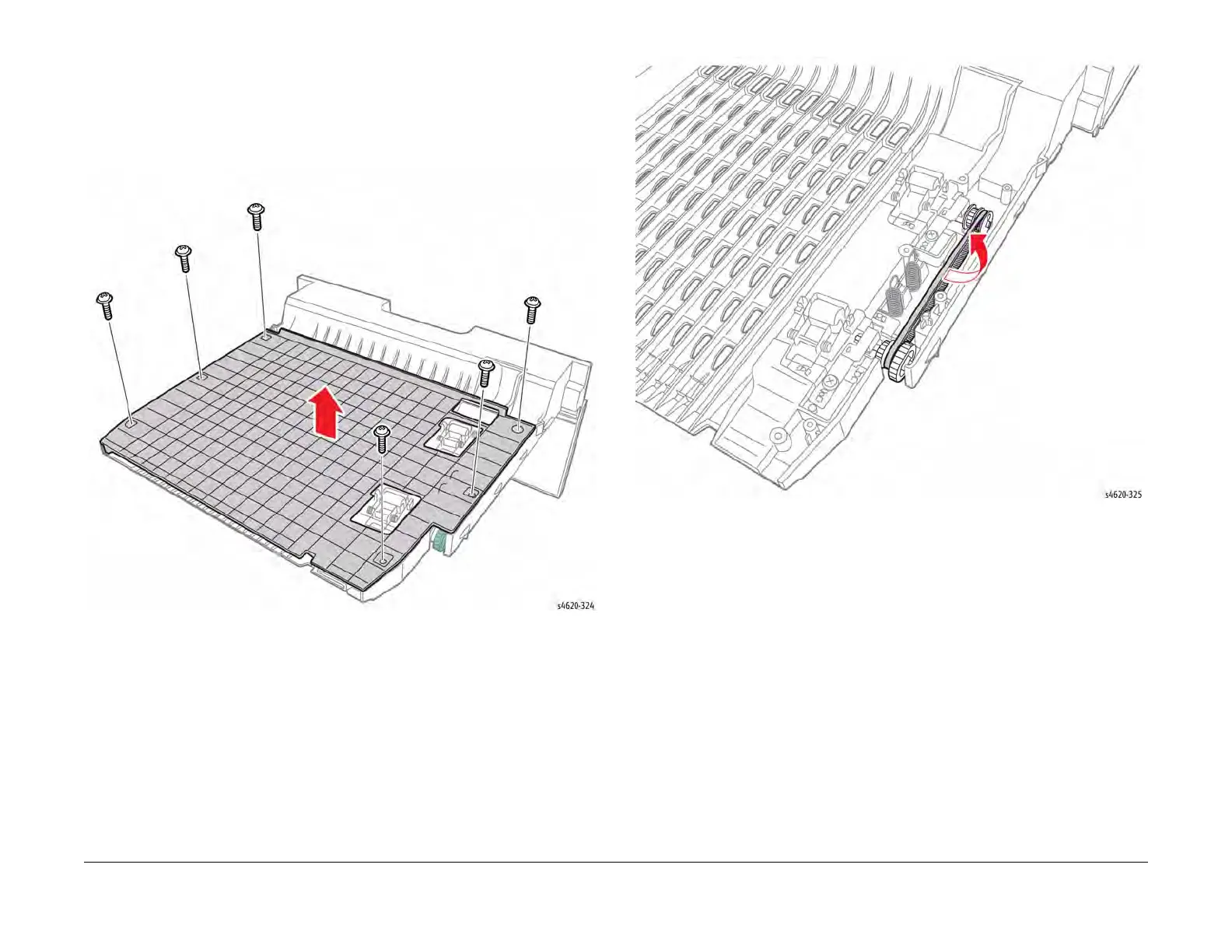

2. Remove 6 screws (plastic) that secure the cover to the Duplex Unit, Figure 1.
Figure 1 Remove the Duplex Unit cover
3. Remove the belt from the rear pulley and belt around the front pulley to release the belt
from the Duplex Unit, Figure 2.
Figure 2 Remove the Duplex Unit Timing Belt

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
