Xerox Phaser 4600 Service Manual

04/2016
4-36
Phaser 4600/4620/4622 Printer Service Manual
REP 7.7, REP 7.8
Revised
4 Repairs and Adjustments
REP 7.7 Tray 2 Lift Motor
Parts List on PL 4.10 Item 11
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove Tray 2.
2. Remove the Duplex Unit, REP 10.1.
3. Remove the IP Board Cover, REP 28.1.
4. Remove the Right Cover, REP 28.2.
5. Remove the MCU Board, REP 3.4.
6. Disconnect P/J49 from the Tray 2 Lift Motor.
7. Remove 3 screws (long, metal) that secure the assembly to the chassis, Figure 1.

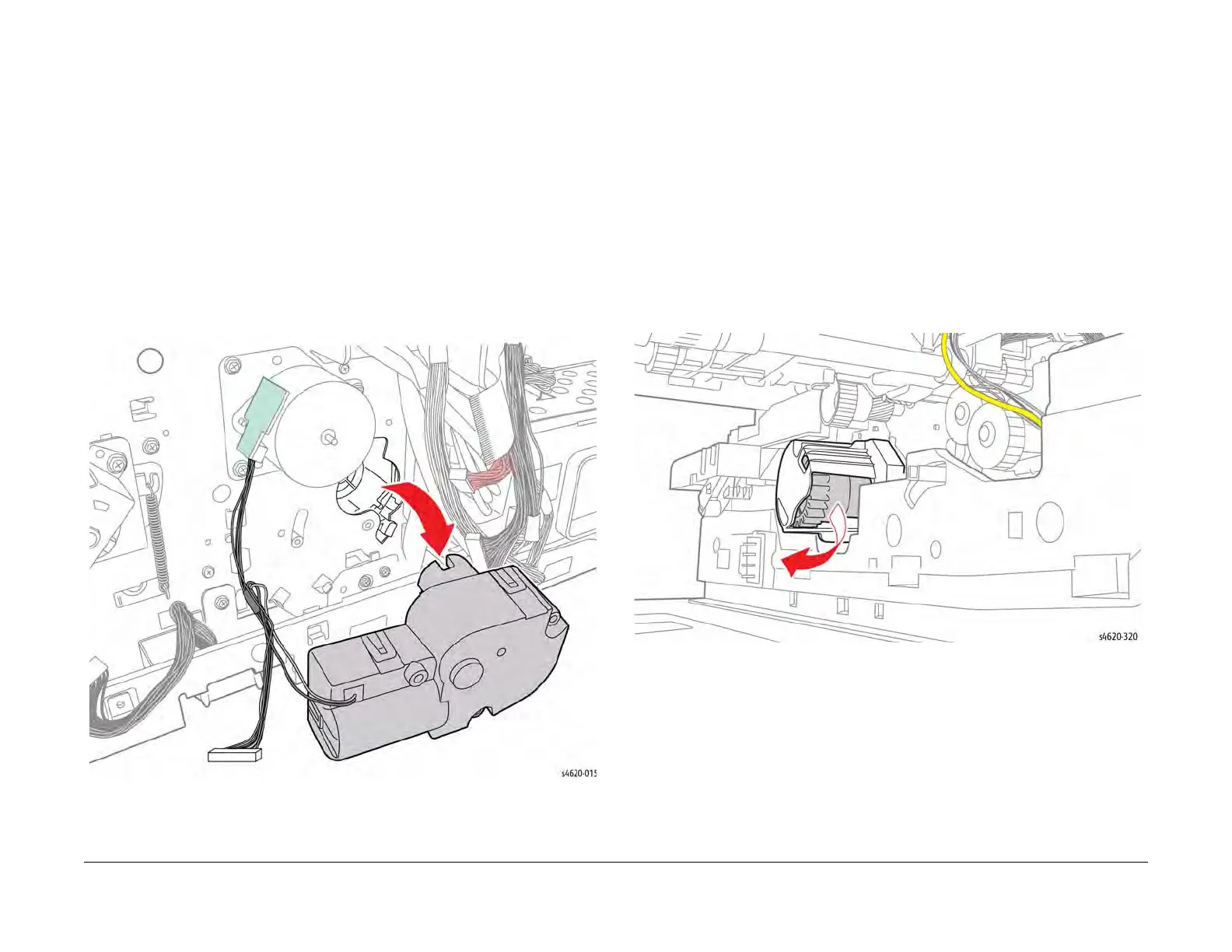

Figure 1 Remove the Tray 2 Lift Motor
REP 7.8 Tray 2 Lift Gear
Parts List on PL 4.10 Item 12
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove Tray 2.
2. Remove the Duplex Unit, REP 10.1.
3. Remove the IP Board Cover, REP 28.1.
4. Remove the Right Cover, REP 28.2.
5. Remove the MCU Board, REP 3.4.
6. Remove the Tray 2 Lift Motor, REP 7.7.
7. Reach into the Tray 2 cavity and remove the gear, Figure 1.
Figure 1 Remove the Tray 2 Lift Gear

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
