Xerox Phaser 4600 Service Manual

04/2016
4-146
Phaser 4600/4620/4622 Printer Service Manual
REP 12.21, REP 12.22
Revised
4 Repairs and Adjustments
REP 12.21 Finisher Exit Sensor
Parts List on PL 12.35 Item 10
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Remove the top cover, REP 12.18.
5. Release 1 hook that secures the sensor.
6. Disconnect P/J120 to remove the sensor, Figure 1.

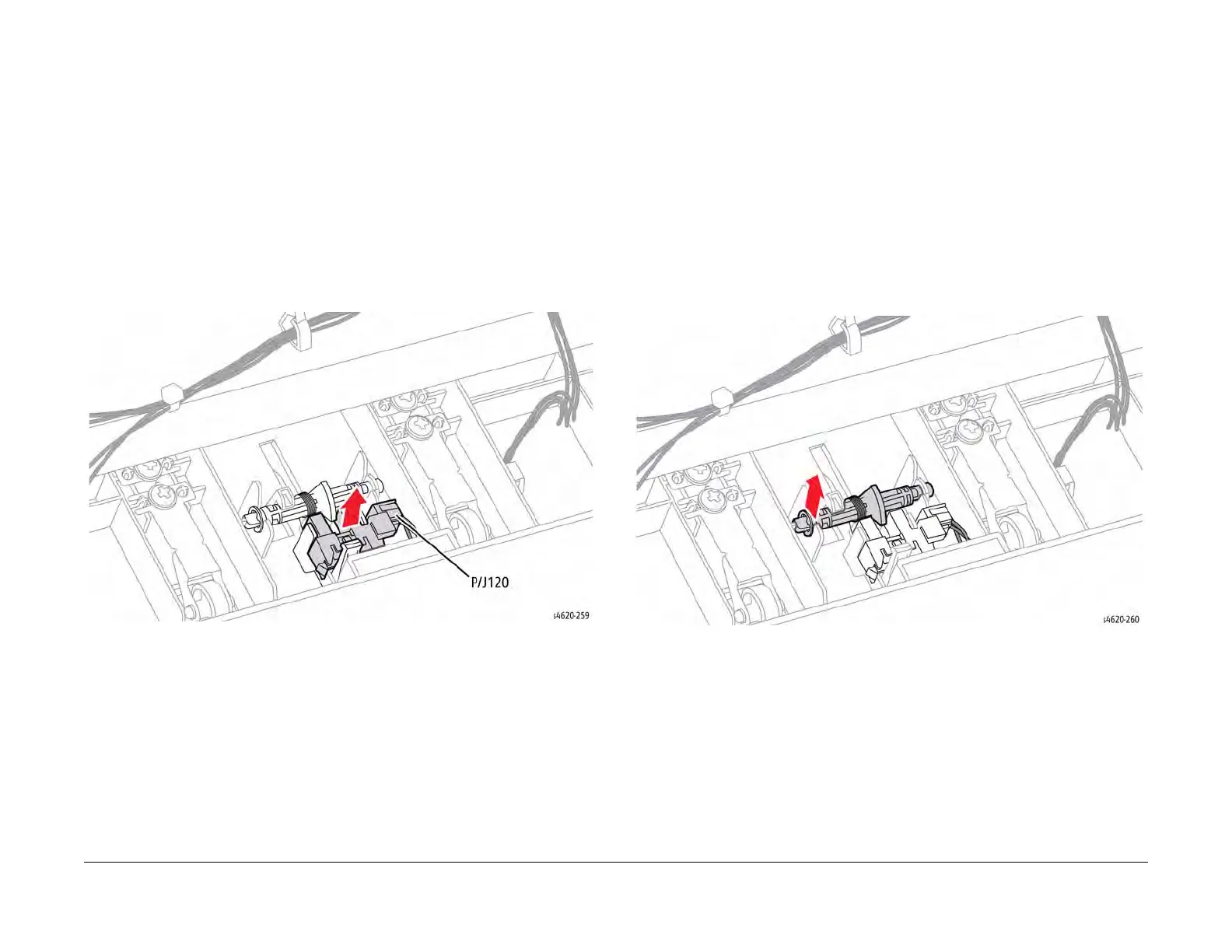

Figure 1 Remove the Finisher Exit Sensor
REP 12.22 Finisher Exit Sensor Actuator
Parts List on PL 12.35 Item 11
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Remove the top cover, REP 12.18.
5. Remove the E-ring that secures the actuator shaft.
6. Slide the actuator to the right, then left to remove the actuator, Figure 1.
Figure 1 Remove the Finisher exit sensor actuator

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
