Phaser 4600/4620/4622 Printer Service Manual
PL 7.20
Revised
5 Parts List

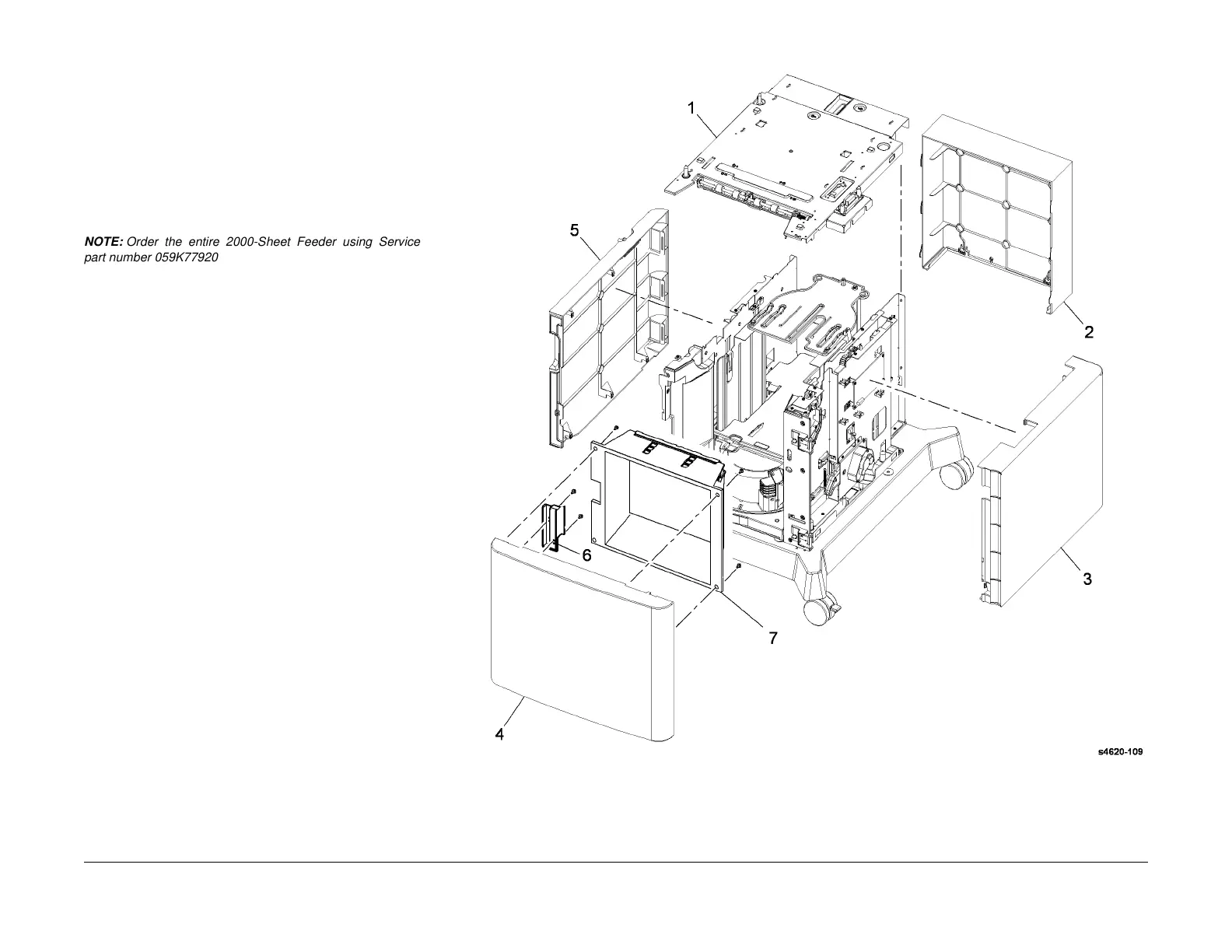

PL 7.20 HCF Covers
Item Part Description
1 – Paper feed assembly (Not Spared)
2 – Rear cover (Not Spared) (REP
7.38)
3 – Right cover (Not Spared) (REP
7.39)
4 – Front cover assembly (Not Spared)
5 – Left cover (Not Spared) (REP 7.40)
6 002N02988 Front cover dummy
7 – Retard cover (Not Spared)
NOTE: Order the entire 2000-Sheet Feeder using Service
part number 059K77920 or Sales part number 097N01875.
