Phaser 4600/4620/4622 Printer Service Manual
PL 10.30
5 Parts List
Revised

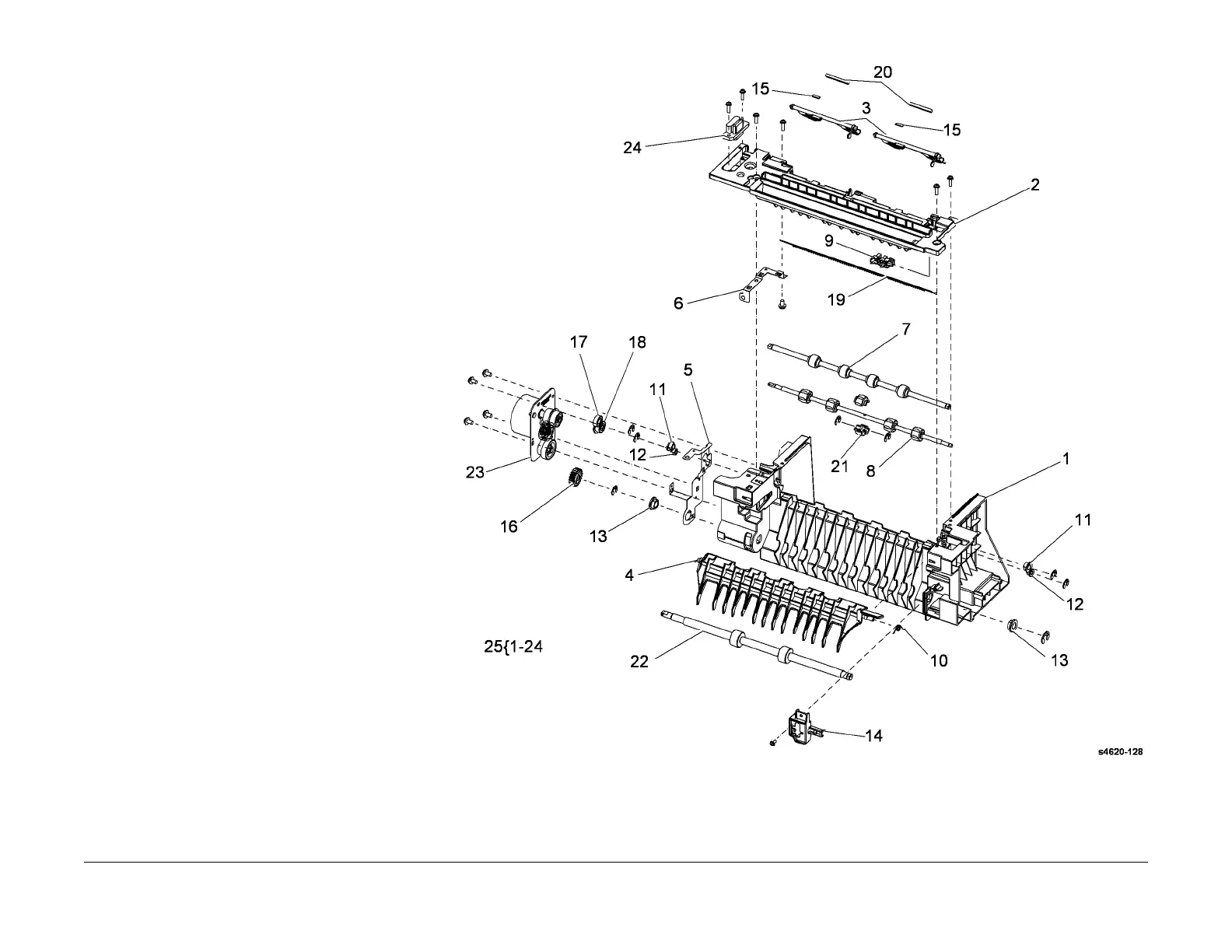

PL 10.30 Exit Assembly
Item Part Description
1 – Exit frame (P/O PL 10.30 Item 25)
2 – Exit chute (P/O PL 10.30 Item 25)
3 – Stacking lever (P/O PL 10.30 Item
25)
4 – Deflector guide (P/O PL 10.30 Item
25)
5 – Exit roller ground (P/O PL 10.30
Item 25)
6 – Exit ground (P/O PL 10.30 Item 25)
7 – Upper exit roller (P/O PL 10.30 Item
25)
8 – Lower exit roller (P/O PL 10.30 Item
25)
9 130N01628 Stack full sensor (Q08-720) (REP
10.7)
10 – Spring (P/O PL 10.30 Item 25)
11 – Bearing (P/O PL 10.30 Item 25)
12 – Bearing (P/O PL 10.30 Item 25)
13 – Bearing (P/O PL 10.30 Item 25)
14 – Rear bracket (P/O PL 10.30 Item
25)
15 – Damper pad (P/O PL 10.30 Item
25)
16 – Duplex exit gear (P/O PL 10.30
Item 25)
17 – Upper exit gear (P/O PL 10.30 Item
25)
18 – Lower exit gear (P/O PL 10.30 Item
25)
19 – Static eliminator (P/O PL 10.30 Item
25)
20 – Stacking lever sponge (P/O PL
10.30 Item 25)
21 – Exit roller cap (P/O PL 10.30 Item
25)
22 – Duplex roller (P/O PL 10.30 Item
25)
23 007N01660 Exit drive assembly (REP 10.32)
24 – Upper option connector (Not
Spared) (REP 10.4)
25 022N02483 Exit assembly (REP 10.6)
