Phaser 4600/4620/4622 Printer Service Manual
PL 12.35
Revised
5 Parts List

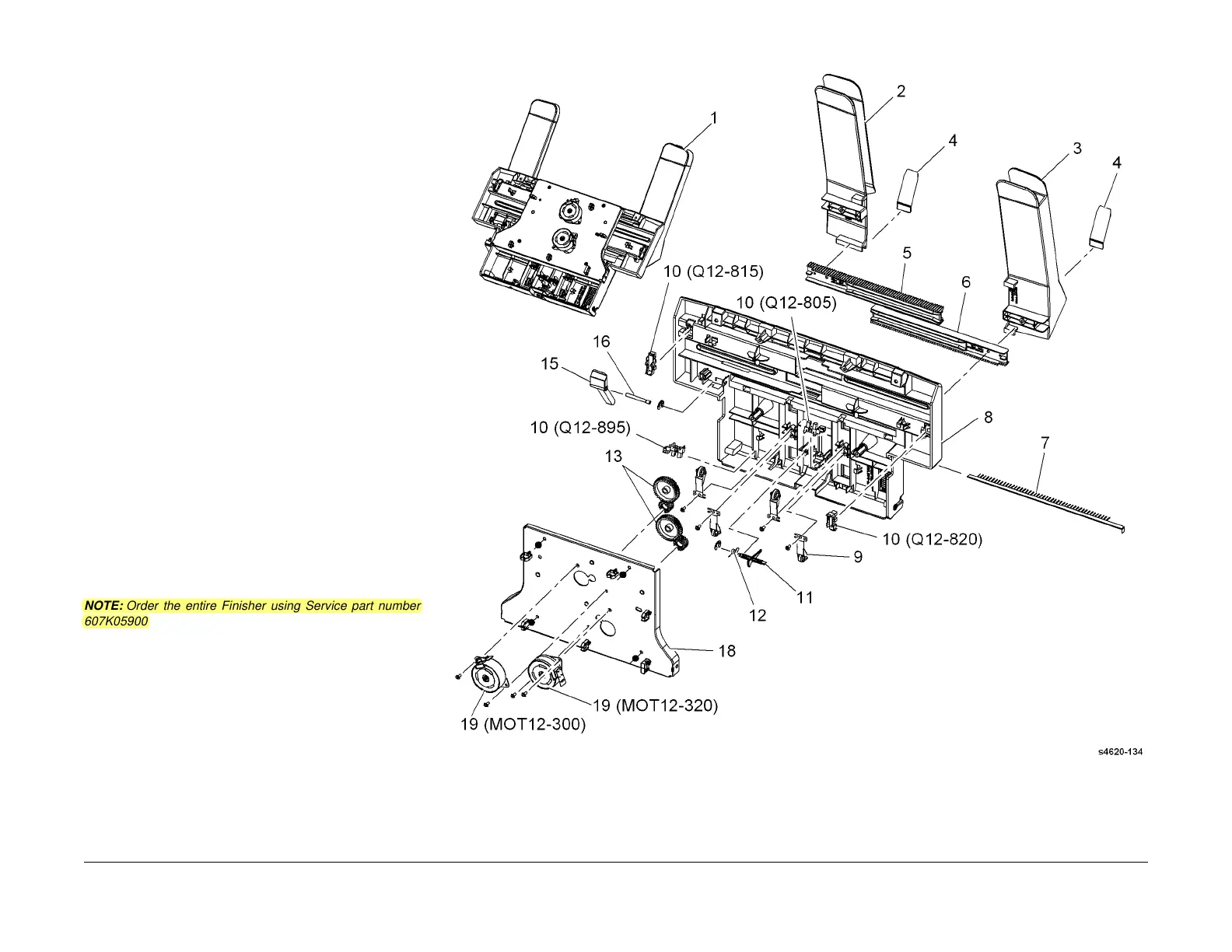

PL 12.35 Finisher Compile Tray
Assembly
Item Part Description
1 022N02482 Compile tray assembly (REP
12.23)
2 – Left guide (P/O PL 12.35 Item 1)
3 – Right guide (P/O PL 12.35 Item 1)
4 – Mylar guide (P/O PL 12.35 Item 1)
5 – Left rack (P/O PL 12.35 Item 1)
6 – Right rack (P/O PL 12.35 Item 1)
7 – Static eliminator (P/O PL 12.35 Item
1)
8 – Compile tray (P/O PL 12.35 Item 1)
9 – Idle roll (P/O PL 12.35 Item 1)
10 130N01628 Left tamper home position sensor
(Q12-820)(REP 12.10)/Rear door
open sensor (Q12-895)(REP
12.20)/Right tamper home position
sensor (Q12-815)(REP 12.12)/Exit
sensor (Q12-805)(REP 12.21)
11 – Exit sensor actuator (P/O PL 12.35
Item 1) (REP 12.22)
12 – Spring (P/O PL 12.35 Item 1)
13 – Drive gear (P/O PL 12.35 Item 1)
14 – Not used
15 – Tamper link arm (P/O PL 12.35
Item 1)
16 – Shaft (P/O PL 12.35 Item 1)
17 – Not used
18 – Mounting bracket (P/O PL 12.35
Item 1)
19 – Right tamper motor (MOT12-300)/
Left tamper motor (MOT12-320) (P/
O PL 12.35 Item 1) (REP 12.19)
NOTE: Order the entire Finisher using Service part number
607K05900 or Sales part number 097N01876.
