Xerox Phaser 4600 Service Manual

04/2016
4-149
Phaser 4600/4620/4622 Printer Service Manual
REP 12.24, REP 28.1
4 Repairs and Adjustments
Revised

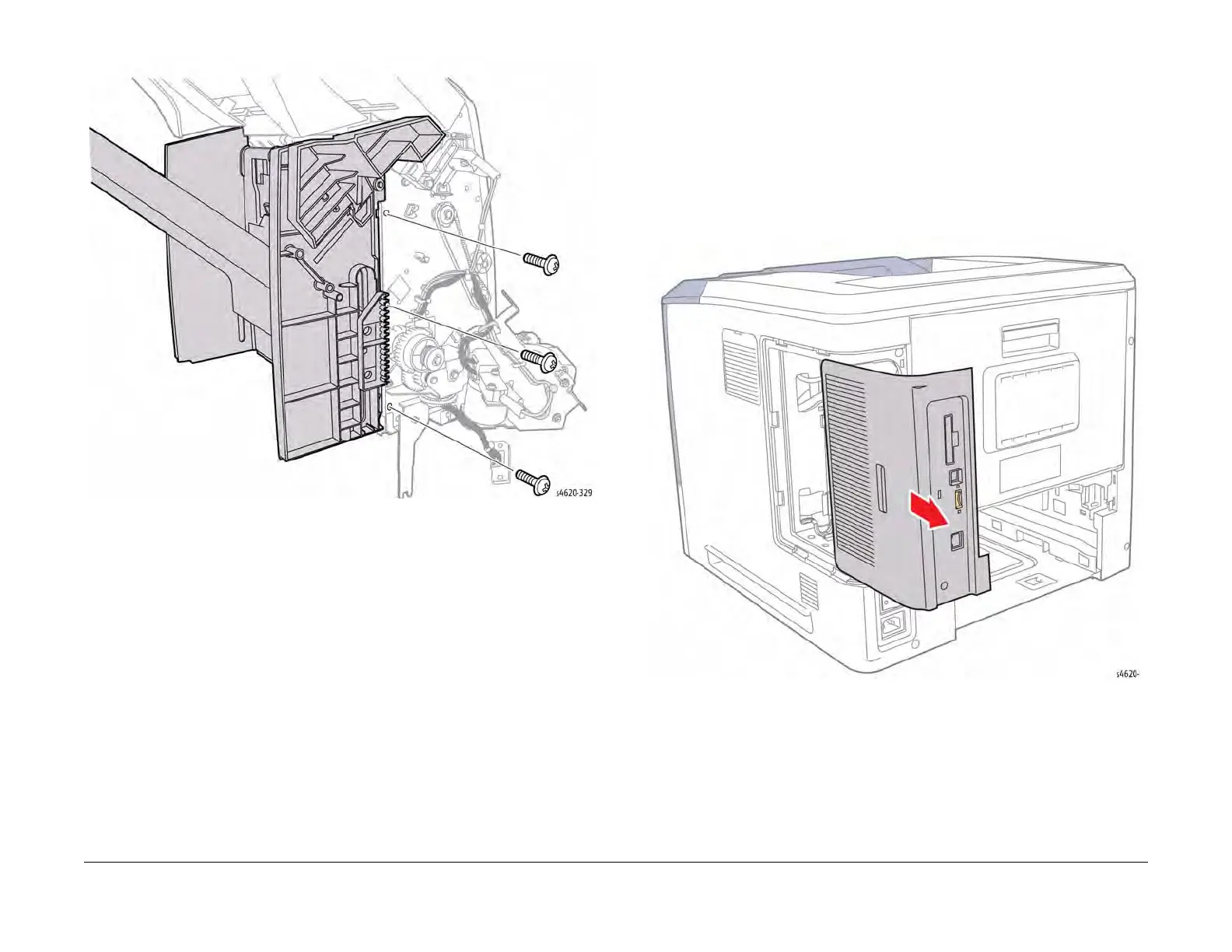

Figure 3 Remove the Stacker Shield Assembly
REP 28.1 IP Board Cover
Parts List on PL 28.10 Item 6
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
Slide the cover to the rear to release the hooks that secure the cover, Figure 1.
Figure 1 Remove the IP Board Cover

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
