Phaser 4600/4620/4622 Printer Service Manual
PL 8.50
Revised
5 Parts List

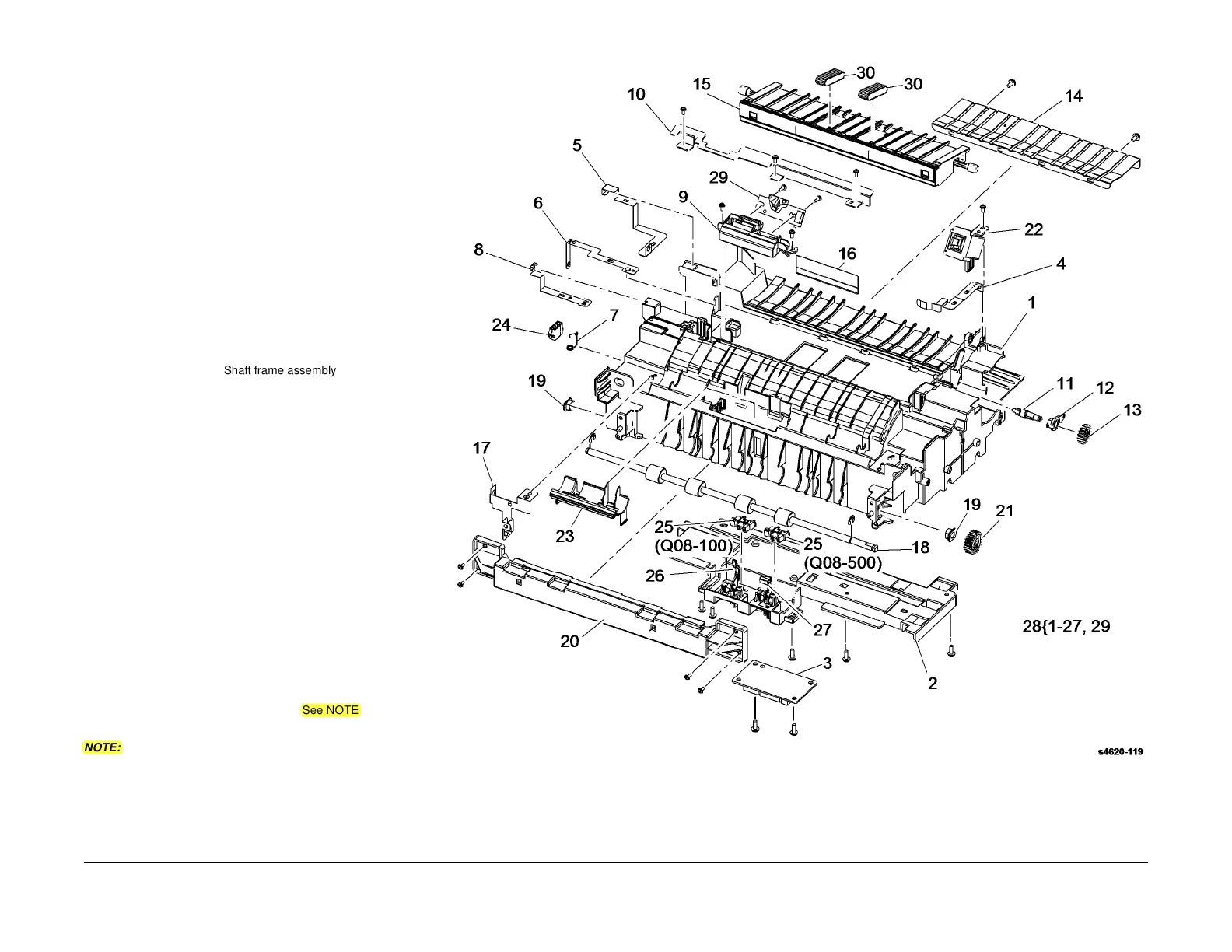

PL 8.50 Middle Frame Assembly
Item Part Description
1 – Base frame (P/O PL 8.50 Item 28)
2 – Actuator frame (P/O PL 8.50 Item 28)
3 – Connector board (P/O PL 8.50 Item
28)
4 – Rear transfer ground (P/O PL 8.50
Item 28)
5 – Saw side ground (P/O PL 8.50 Item
28)
6 – Earth ground (P/O PL 8.50 Item 28)
7 – Spring (P/O PL 8.50 Item 28)
8 – Ground (P/O PL 8.50 Item 28)
9 – ADC sensor holder (P/O PL 8.50 Item
29)
10 – Guide plate (P/O PL 8.50 Item 28)
11 – Shaft (P/O PL 8.50 Item 28)
12 – PMO Bearing (P/O PL 8.50 Item 28)
13 – Exit gear (P/O PL 8.50 Item 28)
14 – Rear transfer guide (P/O PL 8.50 Item
28)
15 001N00526 Shaft frame assembly (REP 8.16)
16 – Feed sheet (P/O PL 8.50 Item 28)
17 – Registration ground (P/O PL 8.50
Item 28)
18 022N02670 Take away roller
19 – Bearing (P/O PL 8.50 Item 28)
20 – Feed frame assembly (P/O PL 8.50
Item 28)
21 – Feed gear (P/O PL 8.50 Item 28)
22 – Drum cartridge CRUM connector (P/O
PL 8.50 Item 28) (REP 8.24)
23 – Actuator cover (P/O PL 8.50 Item 28)
24 – Harness connector (P/O PL 8.50 Item
28)
25 130N01628 Registration sensor (Q08-500)(REP
8.11)/Tray 2 Feed sensor (Q08-100)
(REP 8.12)
26 120N00550 Feed sensor actuator (P/O PL 8.50
Item 28) (REP 8.31)
27 120N00551 Registration sensor actuator (P/O PL
8.50 Item 28) (REP 8.32)
28 – Middle frame assembly (Not Spared)
29 130N01770 ADC sensor (REP 9.2)
30 023N01310 Transport belt (See NOTE) (REP
8.52)
NOTE: Order 2 belts as both belts need to be replaced together.
