Xerox Phaser 4600 Service Manual

04/2016
5-12
Phaser 4600/4620/4622 Printer Service Manual
PL 4.10
Revised
5 Parts List

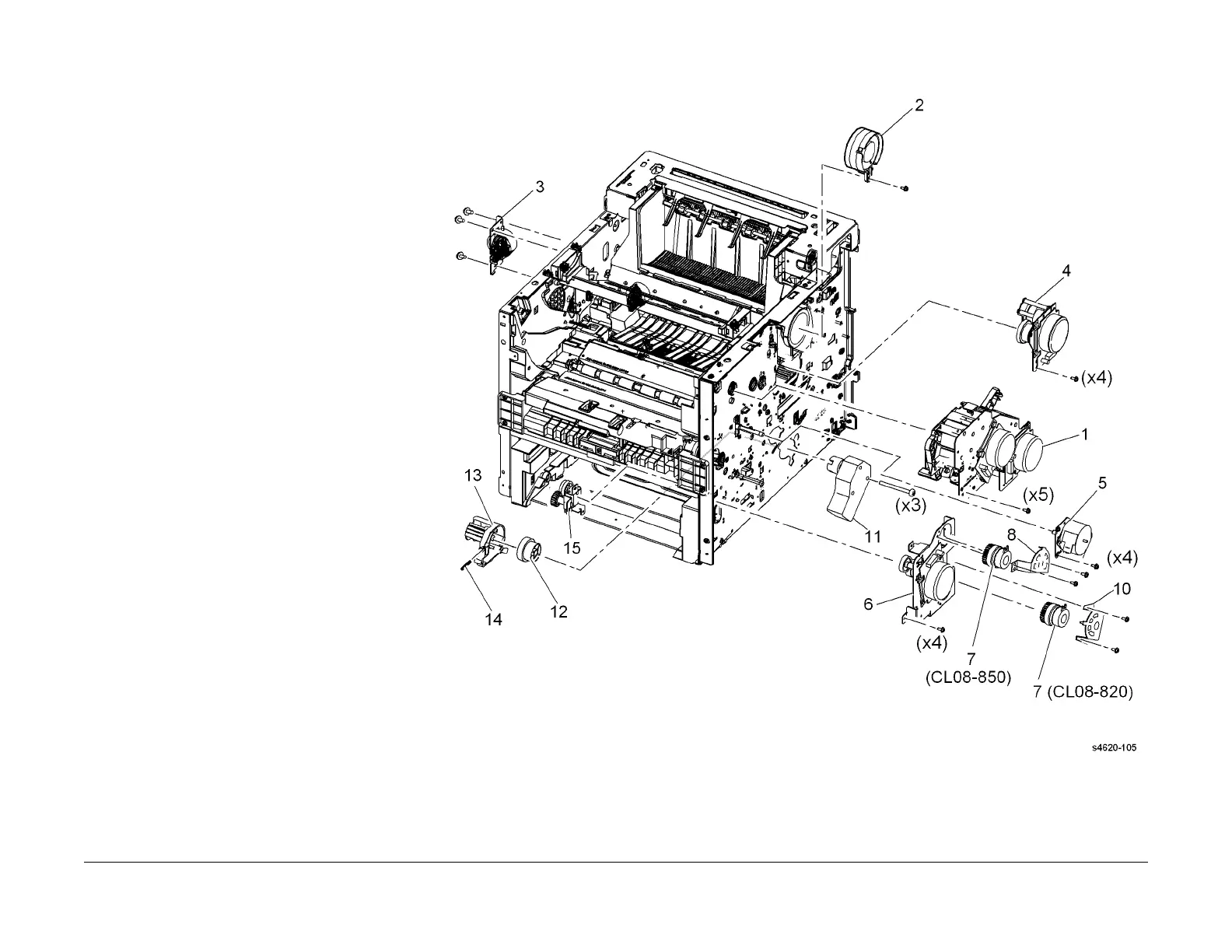

PL 4.10 Main Drives
Item Part Description
1 007N01663 Main drive assembly (REP 4.1)
2 127N07590 Right side chassis fan (MOT06-
300) (REP 4.5)
3 007N01664 Fuser release drive assembly (REP
10.17)
4 007N01659 Fuser drive assembly (REP 10.8)
5 007N01661 Duplex drive assembly (REP 10.9)
6 007N01662 Feed drive assembly (REP 4.4)
7 005N01128 Registration clutch (CL08-
850)(REP 4.3)/Tray 2 feed clutch
(CL08-820)(REP 4.2)
8 – Registration clutch bracket (Not
Spared)
9 – Not Used
10 – Feed clutch bracket (Not Spared)
11 127N07688 Tray 2 lift motor (REP 7.7)
12 007N01665 Tray 2 lift gear (REP 7.8)
13 019N01081 Lift motor housing
14 – Spring (Not Spared)
15 007N01658 Pick-up drive

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
