Xerox Phaser 4600 Service Manual

04/2016
4-126
Phaser 4600/4620/4622 Printer Service Manual
REP 11.10
Revised
4 Repairs and Adjustments
REP 11.10 Mailbox Exit Gate Cam Follower
Parts List on PL 11.25 Item 5
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Mailbox Output Trays, REP 11.1.
2. Separate the Mailbox from the printer, GP 14.
3. Remove the left cover, REP 11.2.
4. Remove the lower Diverter Drive Assembly, REP 11.7.

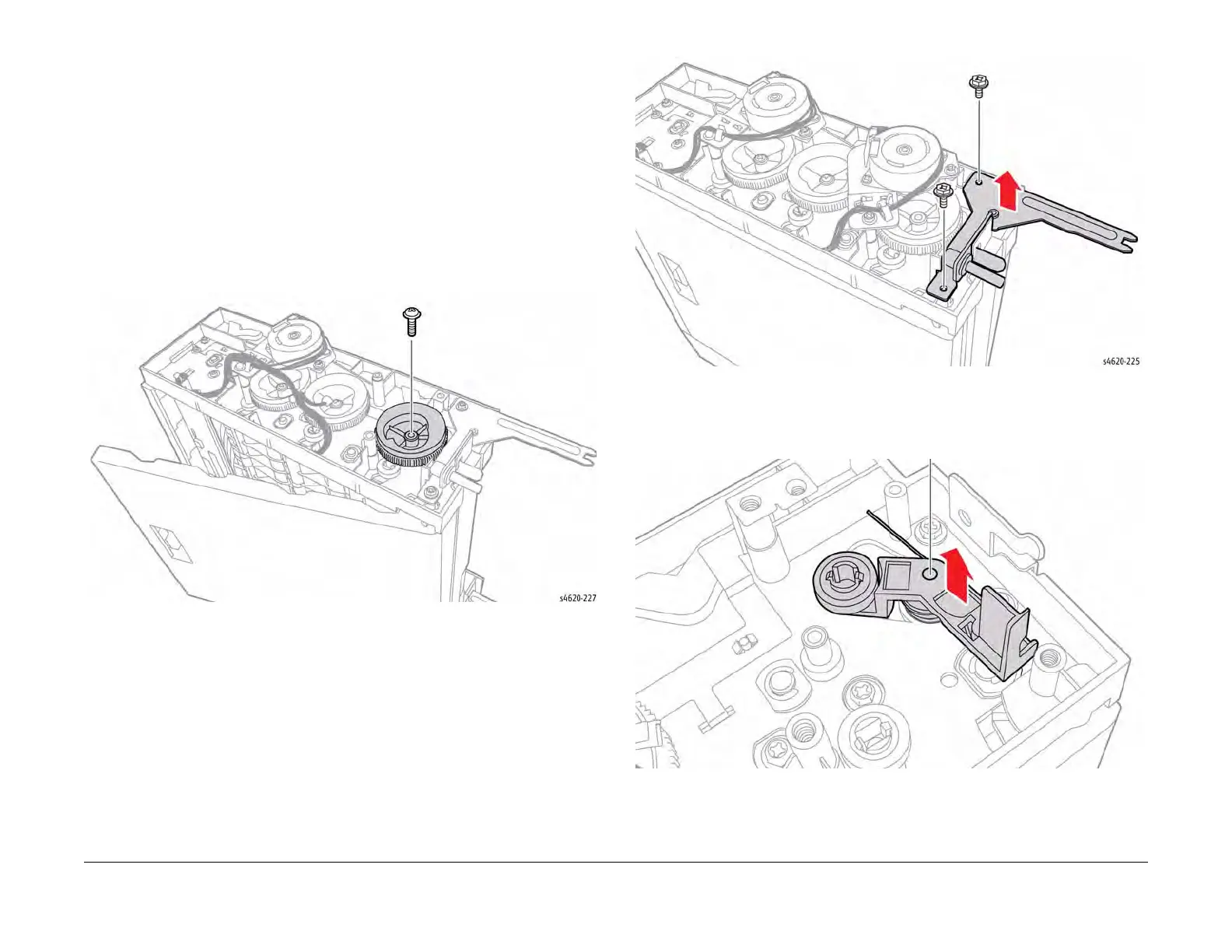

5. Remove 1 screw (plastic) that secures the cam gear. Figure 1.
Figure 1 Remove the cam gear
6. Remove 2 (plastic) screws that secure the mounting bracket, Figure 2.
Figure 2 Remove the exit gate bracket
NOTE: Hold the cam follower spring while removing the cam follower from the Mailbox.
7. Remove 1 (plastic) screw that secures the cam follower to the Mailbox, Figure 3.
Figure 3 Remove the cam follower
