04/2016
4-135
Phaser 4600/4620/4622 Printer Service Manual
REP 12.6, REP 12.7
4 Repairs and Adjustments
Revised
REP 12.6 Finisher Exit Gate Sensor
Parts List on PL 12.40 Item 18
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the left cover, REP 12.1.
3. Disconnect P/J116 and release 3 hooks that secure the sensor to the bracket, Figure 1.

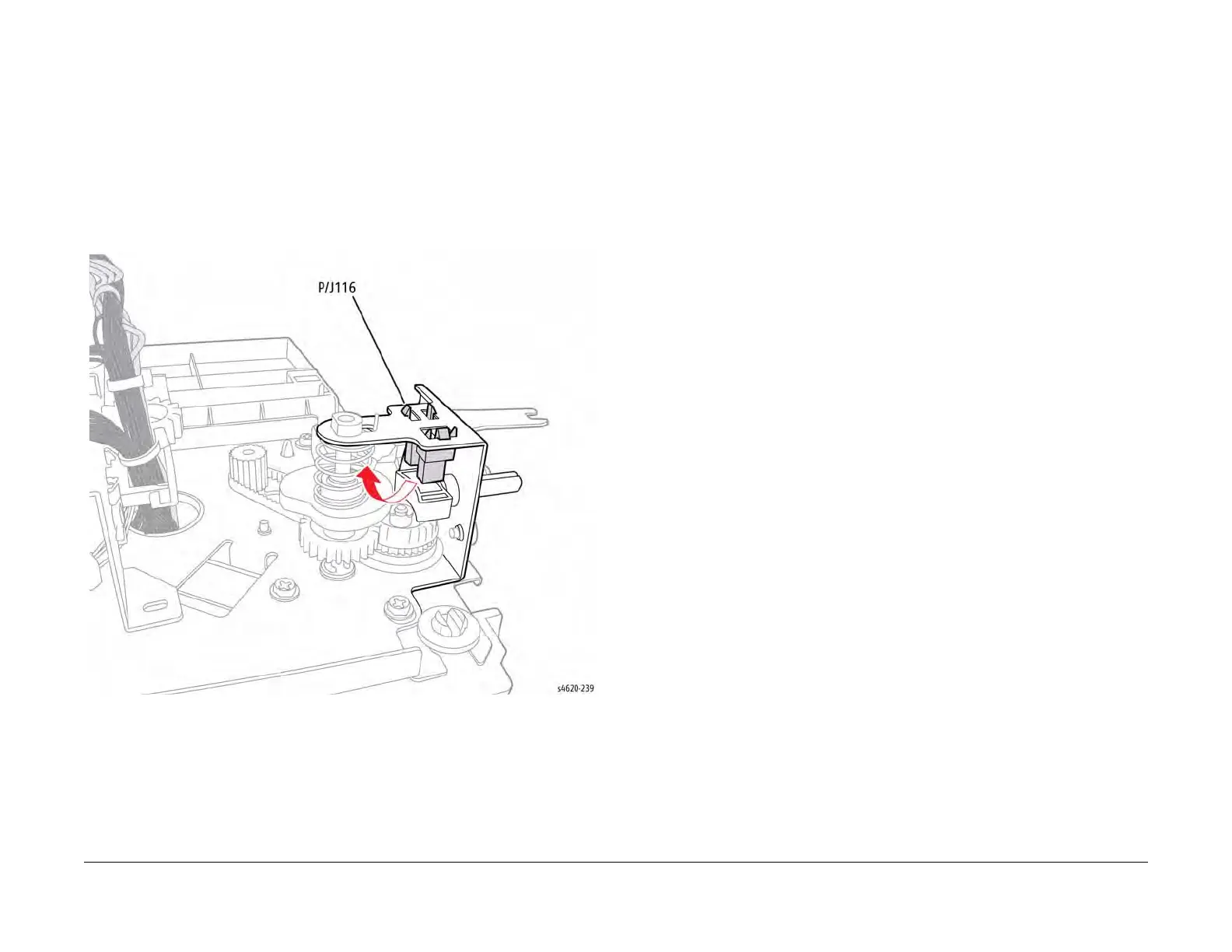

Figure 1 Remove the Exit Gate Sensor
REP 12.7 Finisher Exit Gate Actuator
Parts List on PL 12.40 Item 19
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the left cover, REP 12.1.
3. Remove 2 (metal) screws that secure the actuator bearing to the bracket.
4. Turn the cam lobe to provide clearance to remove the actuator from the bracket, Figure 1.
To Next Page
