Xerox Phaser 4600 Service Manual

04/2016
5-42
Phaser 4600/4620/4622 Printer Service Manual
PL 11.40
Revised
5 Parts List

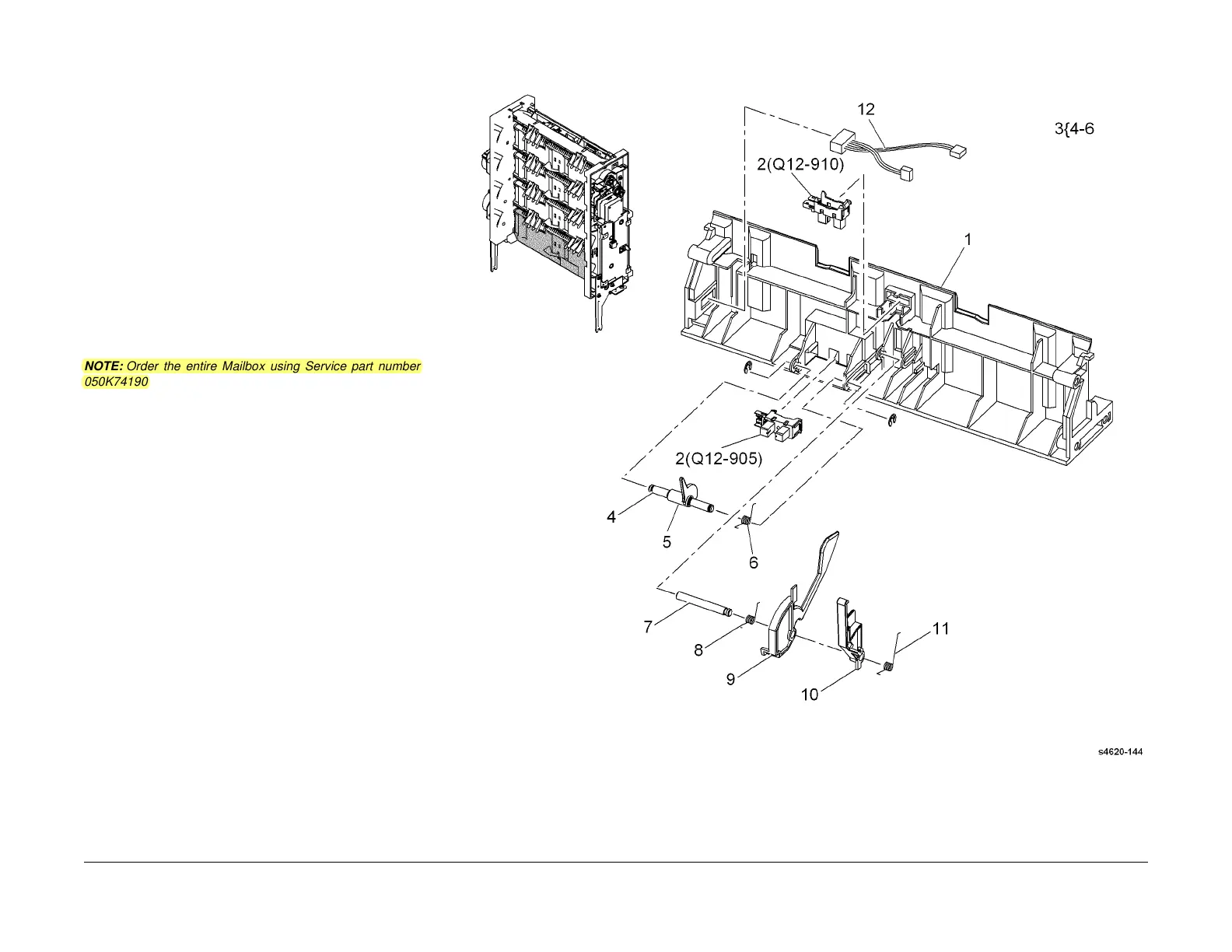

PL 11.40 Mailbox Base Assembly
Item Part Description
1 – Bottom shield (Not Spared)
2 – Entrance feed sensor (Q12-905)/
Stacker empty sensor (Q12-910)
(Not Spared)
3 – Entrance actuator assembly (Not
Spared)
4 – Shaft (Not Spared)
5 – Entrance feed actuator (Not
Spared)
6 – Spring (Not Spared)
7 – Stacker actuator shaft (Not Spared)
8 – Spring (tray empty) (Not Spared)
9 – Stacker empty actuator (Not
Spared)
10 – Exit feed actuator (Not Spared)
11 – Spring (paper path) (Not Spared)
12 – Harness (Not Spared)
NOTE: Order the entire Mailbox using Service part number
050K74190 or Sales part number 097N01877.
