04/2016
4-23
Phaser 4600/4620/4622 Printer Service Manual
REP 4.4
4 Repairs and Adjustments
Revised
REP 4.4 Feed Drive Assembly
Parts List on PL 4.10 Item 6
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the IP Board Cover, REP 28.1.
3. Remove the Right Cover, REP 28.2.
4. Remove the MCU Board, REP 3.4.
5. Remove the Registration Clutch, REP 4.3.
6. Remove the Feed Clutch, REP 4.2.
7. Disconnect P/J53 from the Feed Drive Assembly.
8. Remove 5 screws (Gold, metal) that secure the Feed Drive Assembly.

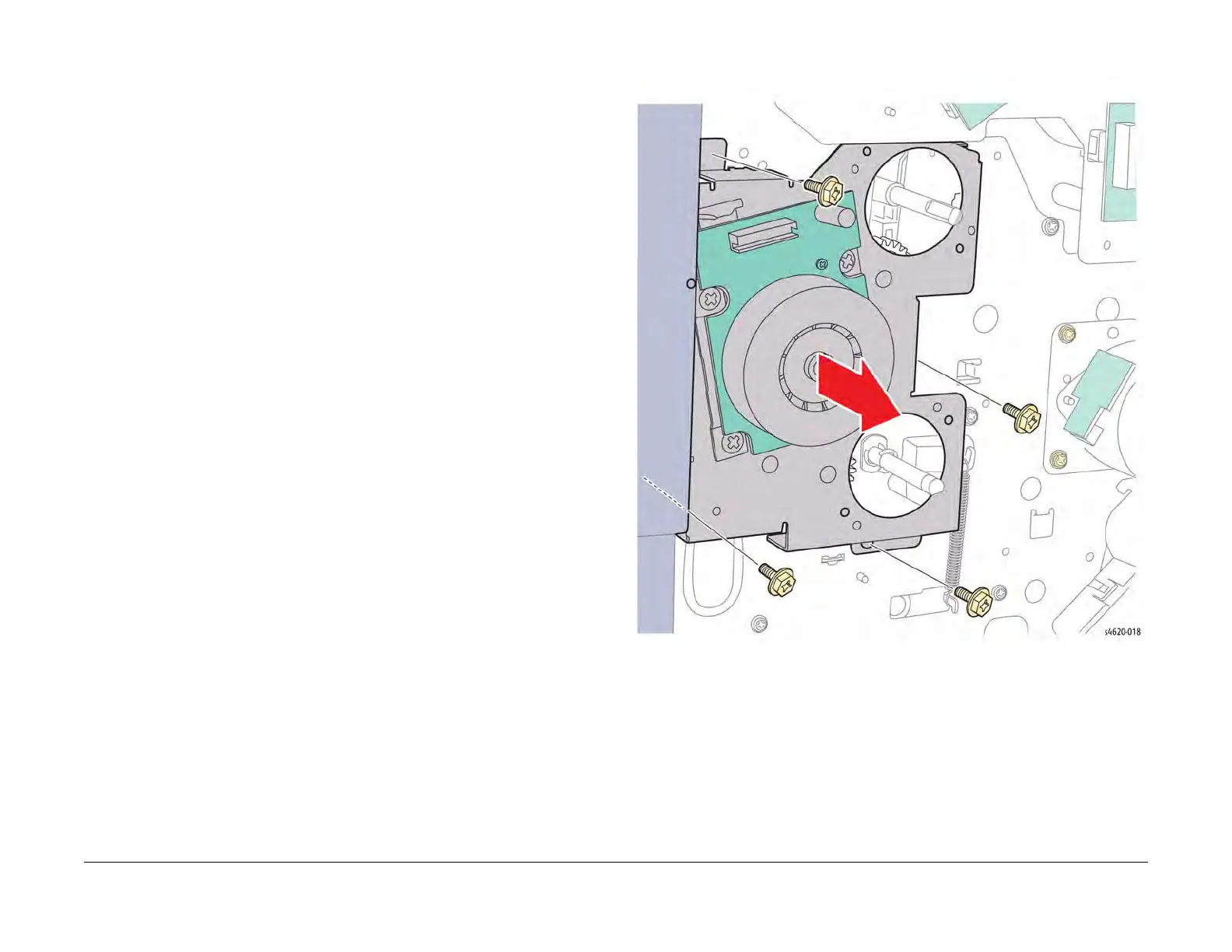

Figure 1 Remove the Feed Drive Assembly
To Next Page
