Xerox Phaser 4600 Service Manual

04/2016
5-45
Phaser 4600/4620/4622 Printer Service Manual
PL 12.20
5 Parts List
Revised

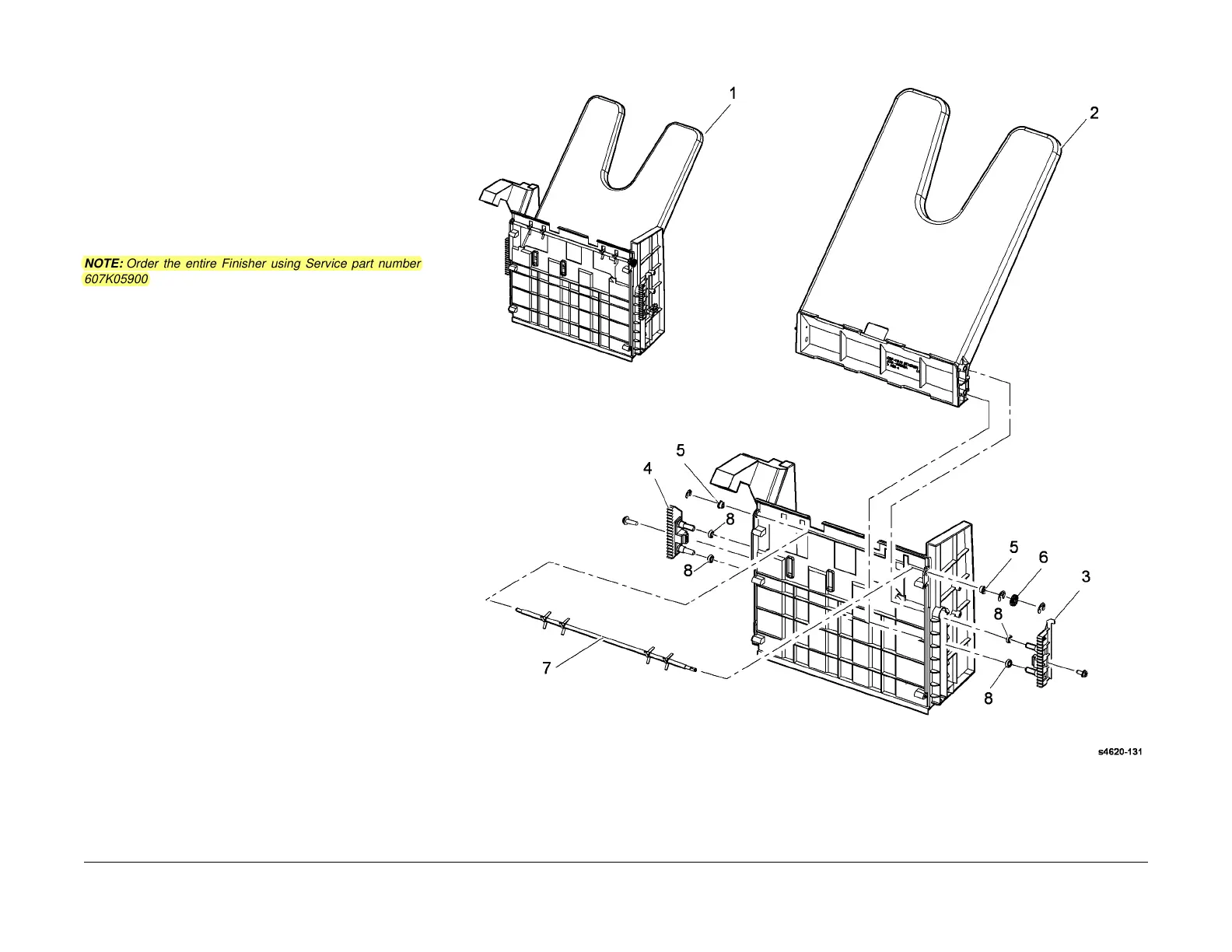

PL 12.20 Finisher Stacker Shield
Assembly
Item Part Description
1 050N00559 Stacker shield assembly (REP
12.24)
2 – Stacker tray (P/O PL 12.20 Item 1)
3 – Left guide (P/O PL 12.20 Item 1)
4 – Right guide (P/O PL 12.20 Item 1)
5 – Bearing (P/O PL 12.20 Item 1)
6 – Gear (P/O PL 12.20 Item 1)
7 – Shaft (P/O PL 12.20 Item 1)
8 – Guide roll (P/O PL 12.20 Item 1)
NOTE: Order the entire Finisher using Service part number
607K05900 or Sales part number 097N01876.
