04/2016
7-5
Phaser 4600/4620/4622 Printer Service Manual
WD 4, WD 5
7 Wiring Data
Revised

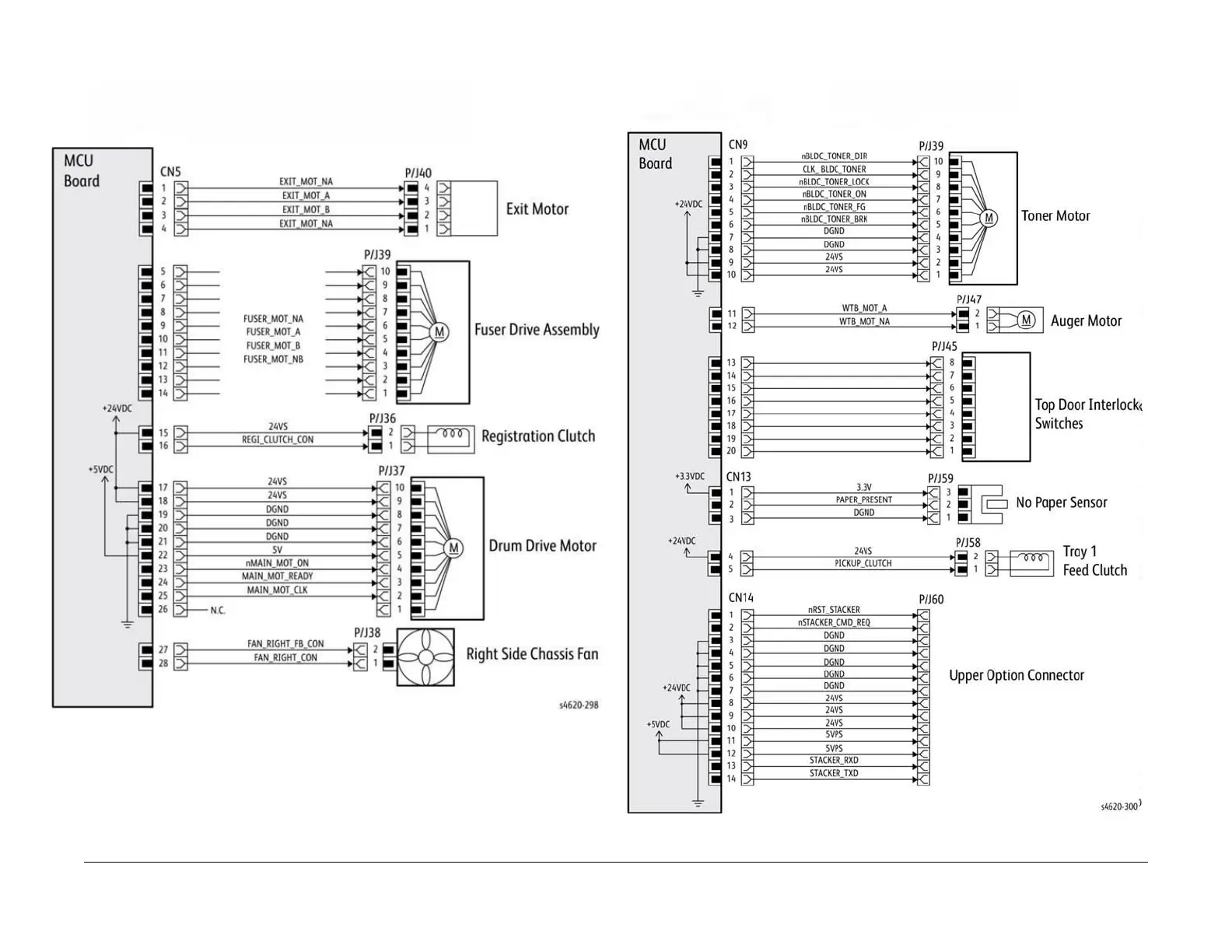

WD 4 MCU Board (2/4)
Figure 4 MCU Board (2/4)
WD 5 MCU Board (3/4)
Figure 5 MCU Board (3/4)
