04/2016
4-59
Phaser 4600/4620/4622 Printer Service Manual
REP 7.49
4 Repairs and Adjustments
Revised
REP 7.49 HCF Top Plate
Parts List on PL 7.25 Item 13
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP 15. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove any installed finishing options from the IOT, GP 14.
2. Separate the HCF feeder from the printer, GP 15.
3. Remove the HCF rear cover, REP 7.38.
4. Remove the HCF right cover, REP 7.39.
5. Remove the HCF left cover, REP 7.40.

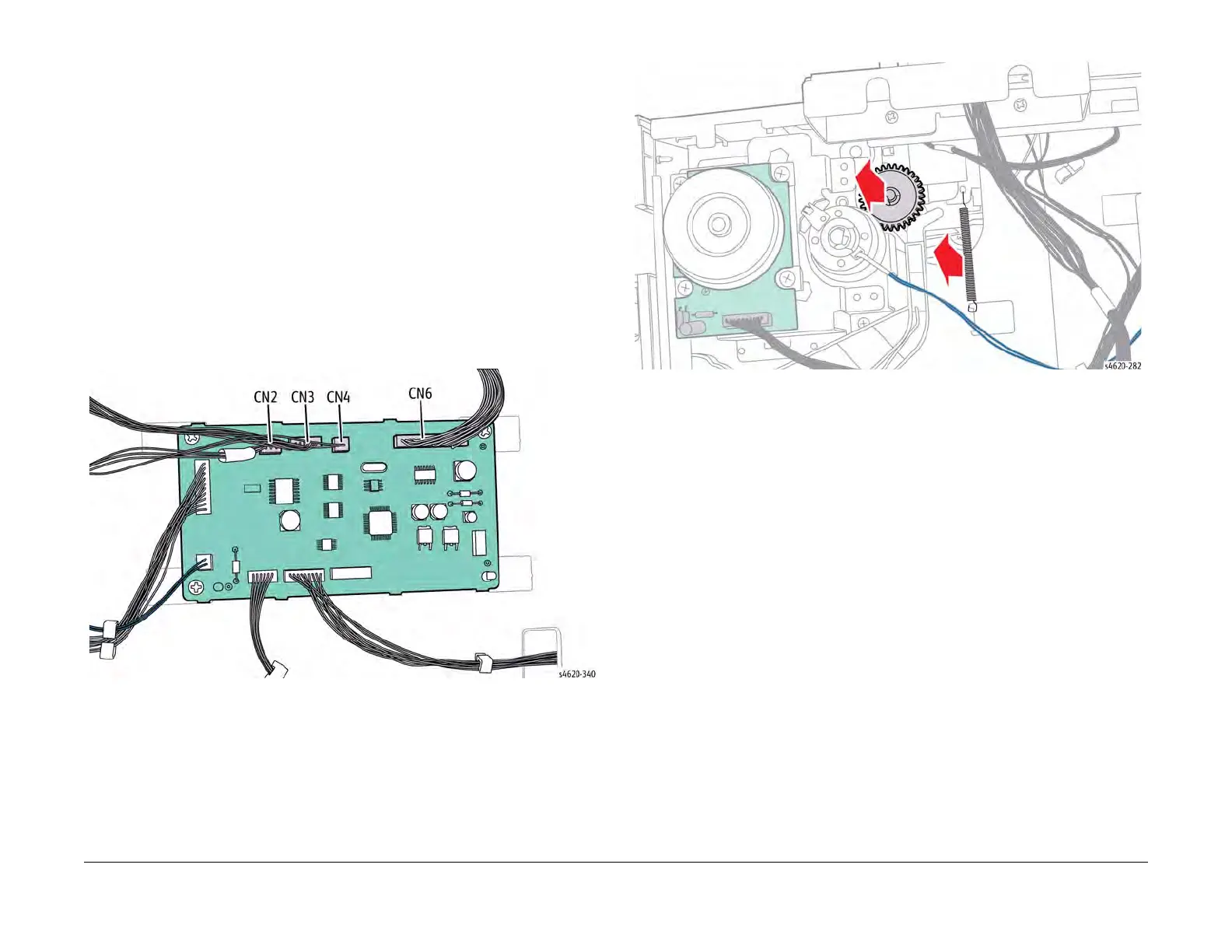

6. Disconnect CN2, CN3, CN4, and CN6 from the HCF Control Board, Figure 1.
Figure 1 Disconnect the harnesses from the HCF Control Board
7. Disconnect CN2 from the Jumper Board.
8. Remove the e-clip and pick gear from the HCF pick Assembly.
9. Release the pick-up spring from the pick assembly, Figure 2.
Figure 2 Remove the pick-up gear and spring
10. Open the Front Door.
11. Remove 12 (metal) and 2 (plastic) screws that secure the top plate, Figure 3.
To Next Page
