Xerox Phaser 4600 Service Manual

04/2016
xi
Phaser 4600/4620/4622 Printer Service Manual
Printer Options
Introduction
Revised
Printer Options
Phaser 4600/4620/4622 options include:
• Additional Memory (512 MB)
• Hard Disk
• Wireless network adaptor
• Printer stand
• 520-sheet Feeder
• 2000-sheet Feeder with casters
• Finisher with stapler, 500-sheet stacker.
• Mailbox, 4-bin, 400-sheets
Table 1 lists both Service and Sales part numbers for available options and accessories.
Hard Disk Drive
The Phaser 4600/4620/4622 supports an internal 160 GB Hard Disk Drive mounted to the IP
Board. Features enabled by Hard Drive installation include:
• Secure Print
•Proof Print
• Save Print
• Disk Collation
Additional Memory
The Phaser 4600/4620/4622 IP Board includes 1 slot for a 512 MB DDR2 DIMM, Figure 1.
Memory must meet these characteristics:
• 200 Pin DDR2 SODIMM
• Unbuffered, Non-parity
The printer’s Configuration page lists the amount of RAM installed in the printer.

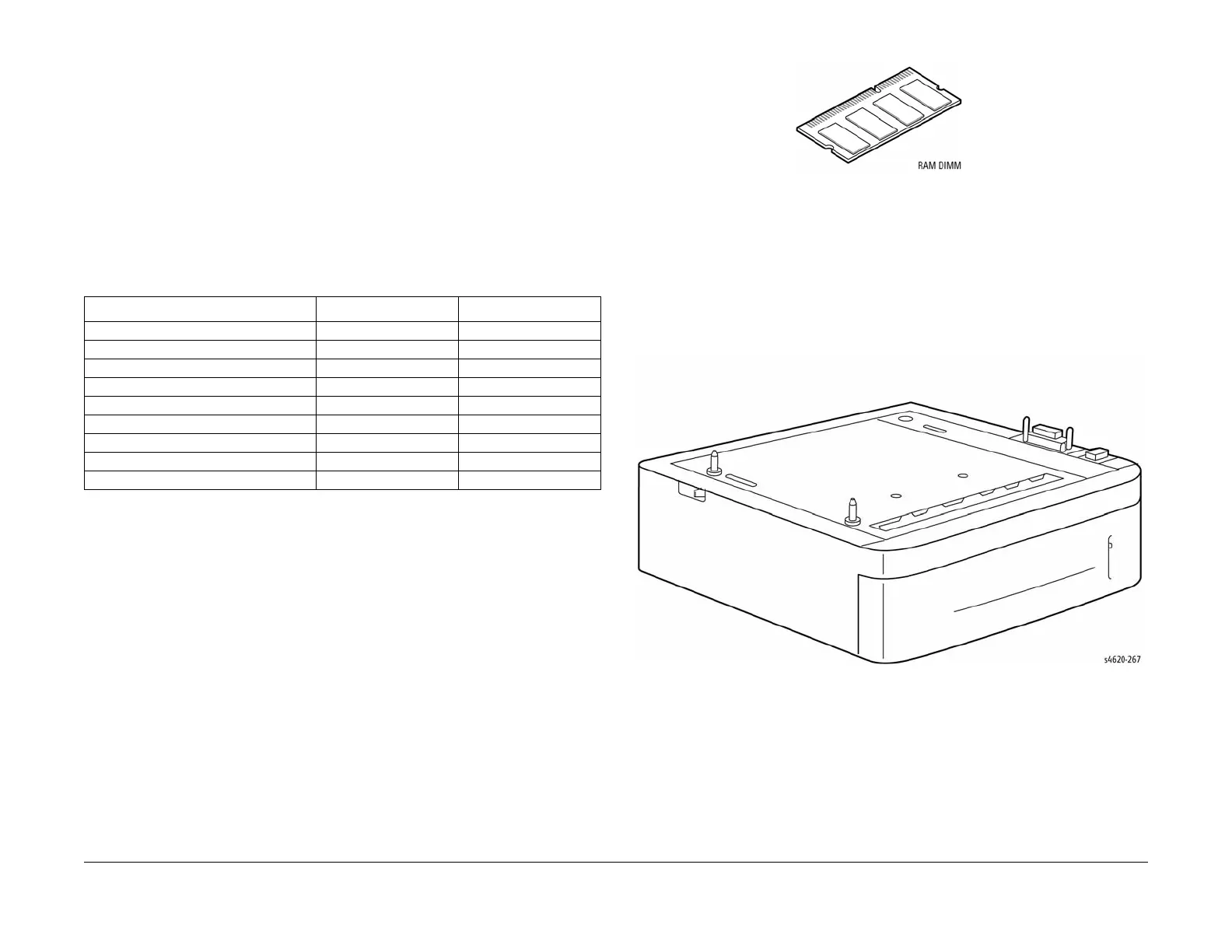

Figure 1 Optional memory
520-Sheet Feeder
The 520-sheet Feeder increases the input capacity of the printer and is attached to the printer
underneath Tray 2. These additional tray combinations are supported:
• One 520-Sheet Feeder (Tray 3)
• Up to 4, 520-Sheet Feeders (Trays 3, 4, 5, and 6)
Figure 2 520-Sheet Feeder
Table 1 Option and Accessory Part Numbers
Item Service Part Number Sales Part Number
520-Sheet Feeder 050K74180 097N01874
2000-Sheet Feeder 059K77920 097N01875
Finisher (500-sheet) 059K77910 097N01876
Mailbox (400-sheet) 050K74190 097N01877
Duplex Unit 022N02484 097N01923
Memory Upgrade 128K01770 097N01878
160MB Hard Disk 007N01651 097N01879
Wireless Network Adaptor 120K03640 097N01880
Stand 078K00870 097N01916
