Xerox Phaser 4600 Service Manual

04/2016
xii
Phaser 4600/4620/4622 Printer Service Manual
Printer Options
Revised
Introduction
2000-Sheet Feeder
The 2000-sheet Feeder increases the input capacity of the printer and is attached to the printer
underneath Tray 2 or installed 520-sheet Feeders. These additional tray combinations are sup-
ported:
• One 2000-Sheet Feeder (Tray 3)
• Up to 2 520-Sheet Feeders (Trays 3, 4) and 1 2000-Sheet Feeder (Tray 5).

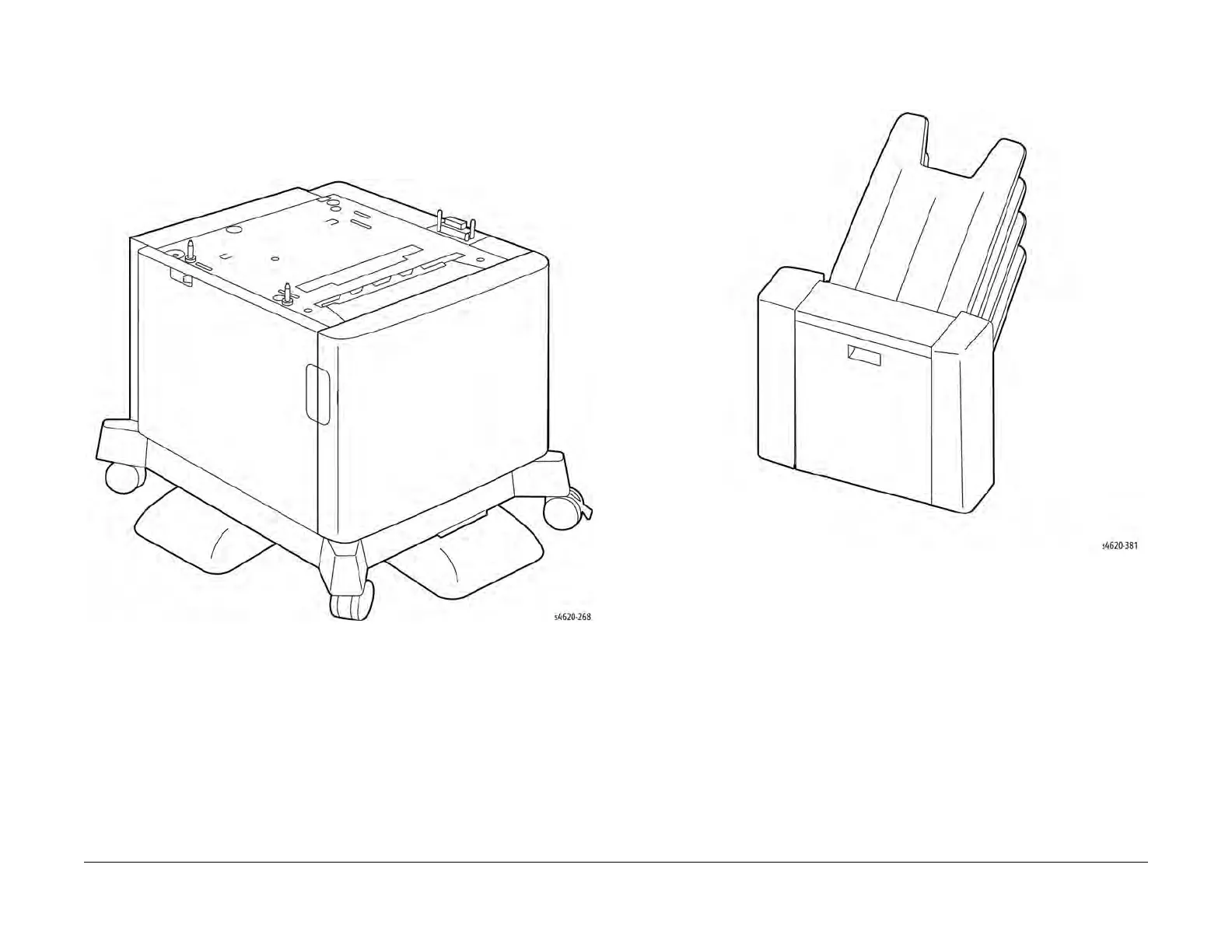

Figure 3 2000-Sheet Feeder
Mailbox
The Mailbox provides four 100-sheet output trays.
Figure 4 Optional Mailbox

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
