REP 8.41 Feeder Feed Clutch
Parts List on PL 8.30 Item 2
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP 15. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer, GP 15.
2. Remove the Tray.
3. Remove the Front Cover, REP 7.24.
4. Remove the Right Cover, REP 7.25.
5. Remove the Rear Cover, REP 7.27.
6. Remove the right side frame, REP 7.34
7. Remove 2 screws (metal) that secure the clutch bracket to the Feed Motor Assembly.
8. Remove the E-clip that holds the bracket to the clutch.
9. Disconnect P/J89 to remove the clutch from the shaft, Figure 1.

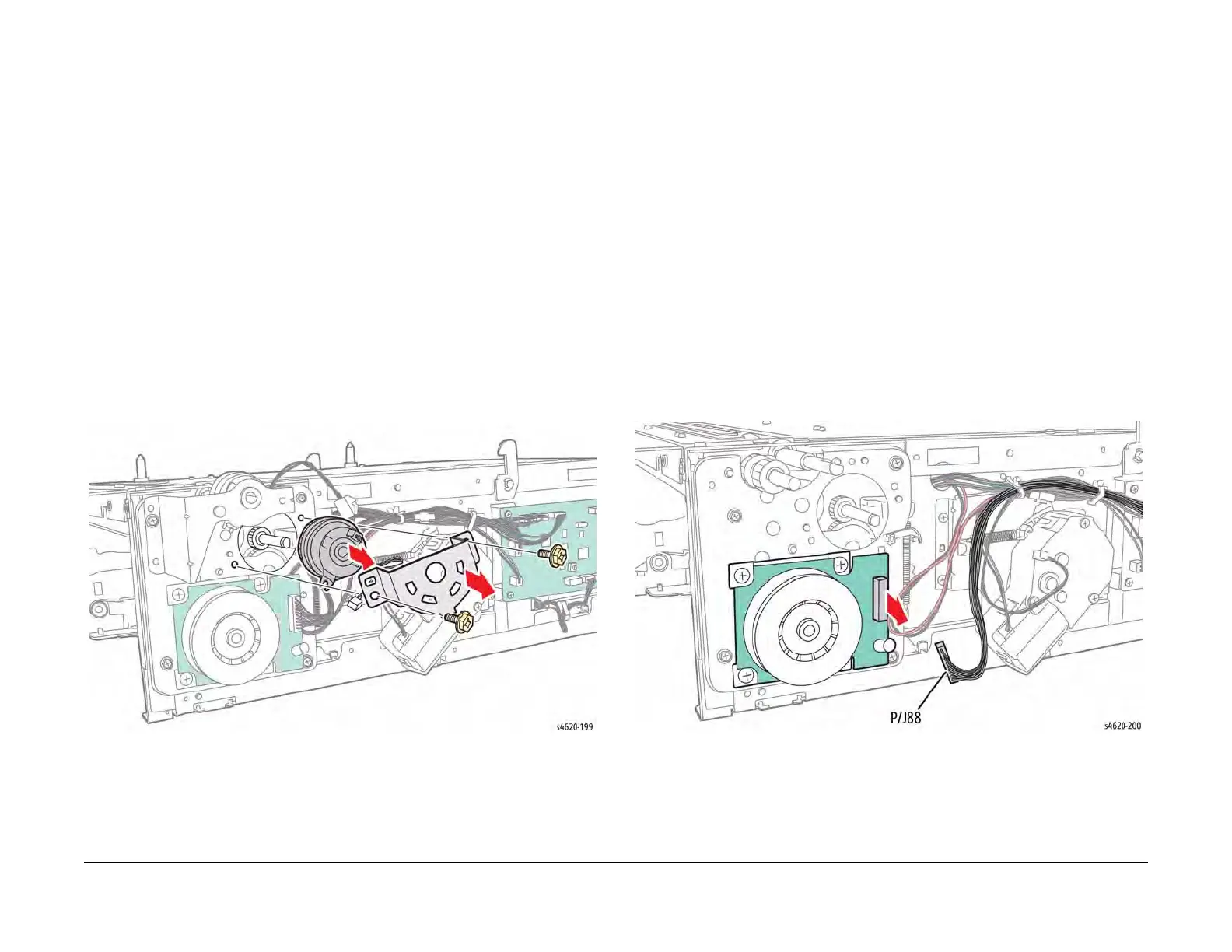

Figure 1 Remove the Feed Clutch
REP 8.42 Feeder Feed Drive Assembly
Parts List on PL 8.30 Item 1
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP 15. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer, GP 15.
2. Remove the Tray.
3. Remove the Front Cover, REP 7.24.
4. Remove the Right Cover, REP 7.25.
5. Remove the Rear Cover, REP 7.27.
6. Remove the right side frame, REP 7.34.
7. Remove the Take Away Clutch, REP 8.40.
8. Remove the Feed Clutch, REP 8.41
9. Disconnect P/J88 from the motor and release the harnesses from the clamp, Figure 1.
Figure 1 Disconnect the Feed Drive Assembly
10. Remove 4 screws (Gold, metal) that secure the assembly to the chassis, Figure 2.
