04/2016
4-30
Phaser 4600/4620/4622 Printer Service Manual
REP 7.5, REP 7.6
Revised
4 Repairs and Adjustments

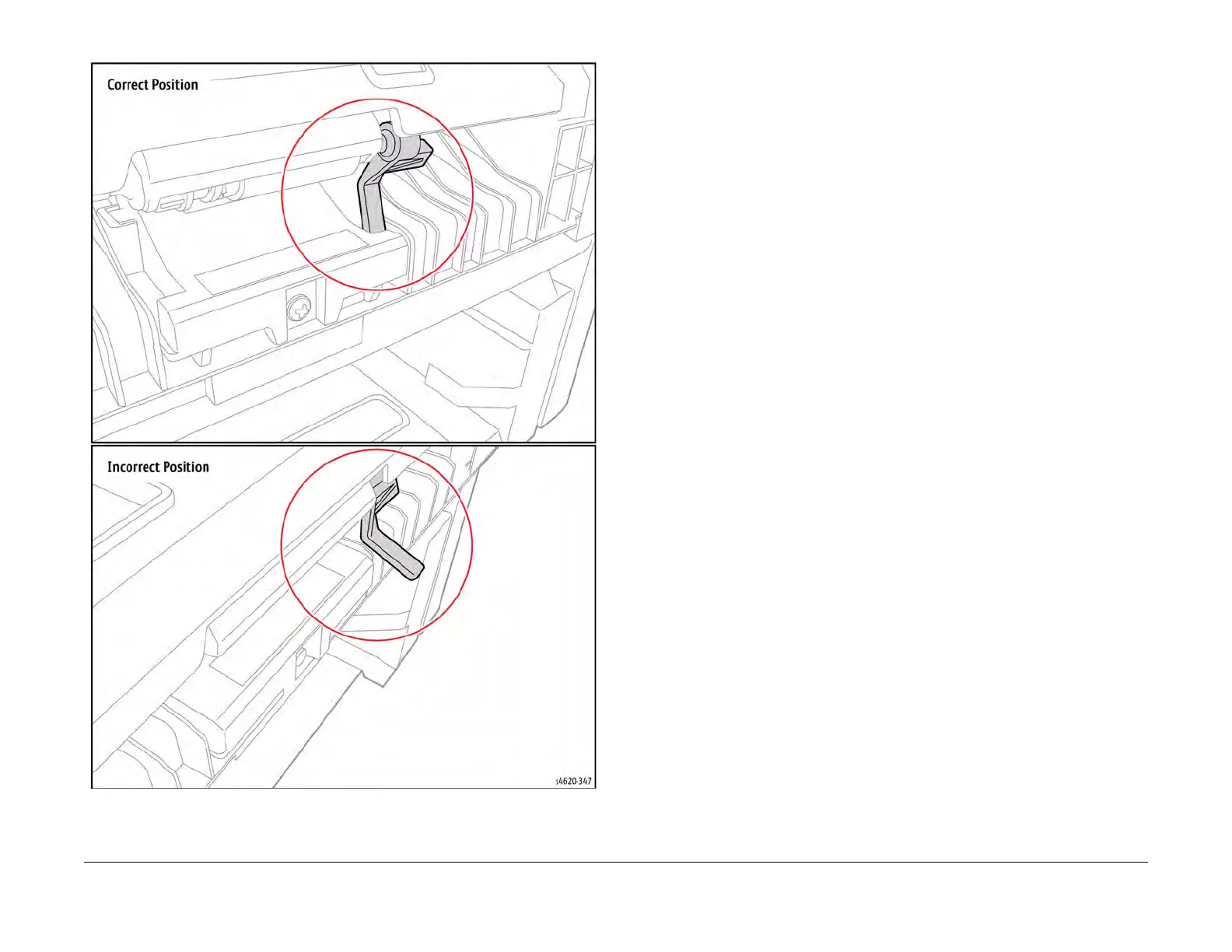

Figure 5 Tray 1 No Paper Sensor actuator position
REP 7.6 Tray 2 Feeder Assembly
Parts List on PL 8.15 Item 21
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
CAUTION
Cover the Drum Cartridge to prevent light exposure.
NOTE: To service or replace the Tray 2 Feeder Assembly requires separation of the left side
chassis. With the left side chassis separated, the chassis is prone to collapse, As you release
the left side chassis, use a prop placed in the Tray 2 cavity to maintain, as best as possible,
chassis alignment.
1. Remove Tray 2.
2. Open the Top Door.
3. Remove the Toner Cartridge.
4. Remove the Drum Cartridge.
5. Remove the Duplex Unit, REP 10.1.
6. Remove the IP Board Cover, REP 28.1.
7. Remove the Right Cover, REP 28.2.
8. Remove the Top Cover, REP 28.5.
9. Remove 5 screws (2 plastic, 3 metal) that secure the rear support bracket to the chassis.
10. Lift the bracket and rest on the printer chassis, Figure 1.
To Next Page
