Phaser 4600/4620/4622 Printer Service Manual
REP 7.45, REP 7.46
4 Repairs and Adjustments
Revised
REP 7.45 HCF Lift Motor Assembly
Parts List on PL 7.25 Item 19
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
NOTE: Cover removal is possible without removing the feeder from the printer.
1. Remove the HCF rear cover, REP 7.38.
2. Remove the HCF right cover, REP 7.39.
3. Release the spring from the lift linkage.
4. Disconnect the motor and remove 4 screws (metal) that secure the assembly to the chas-
sis, Figure 1.

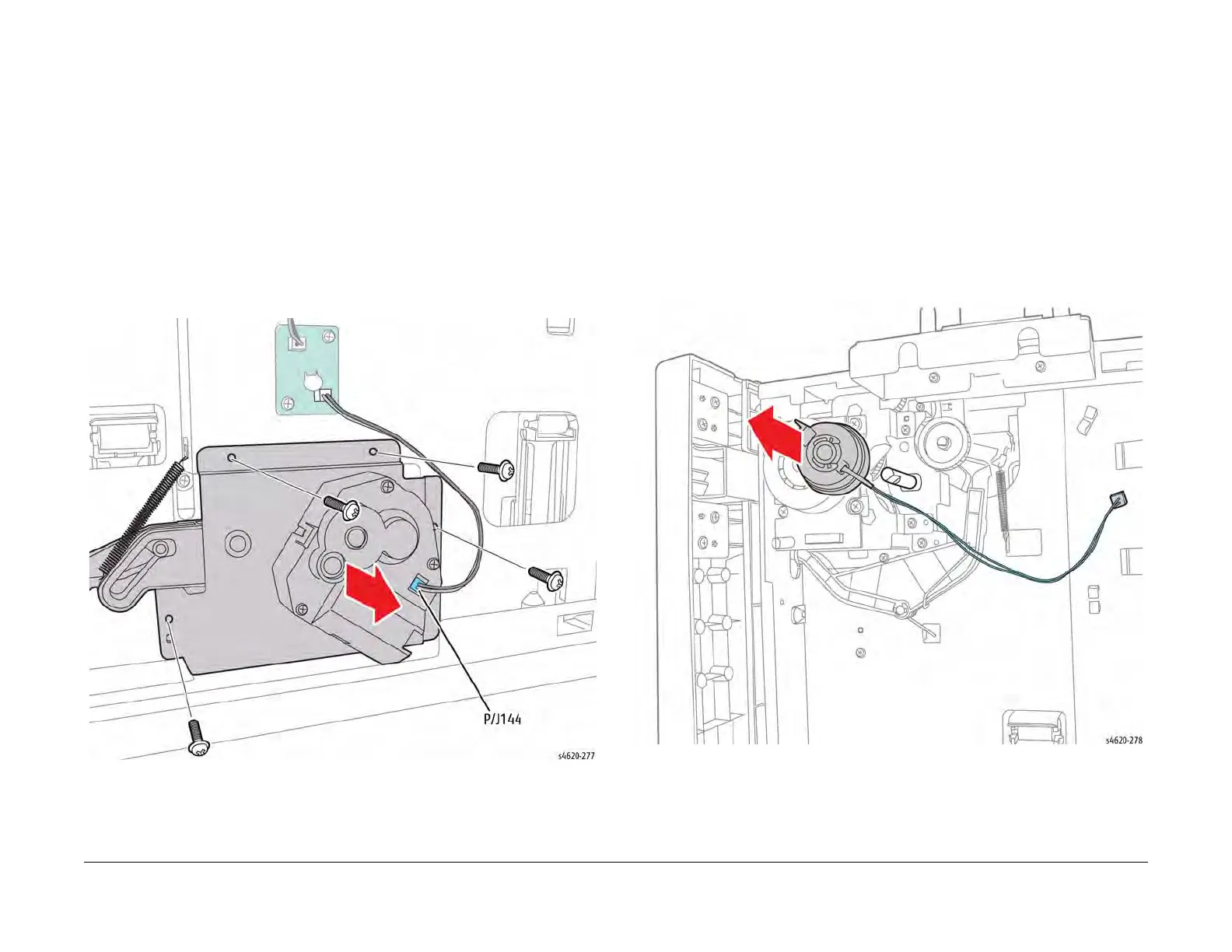

Figure 1 Remove the Lift Motor Assembly
REP 7.46 HCF Feed Clutch
Parts List on PL 7.25 Item 24
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
NOTE: Cover removal is possible without removing the feeder from the printer.
1. Remove the HCF rear cover, REP 7.38.
2. Remove the HCF right cover, REP 7.39.
3. Disconnect CN9 from the HCF Control Board.
4. Remove the E-clip that secures the clutch to the shaft, Figure 1.
Figure 1 Remove the Feed Clutch
