Xerox Phaser 4600 Service Manual

04/2016
5-17
Phaser 4600/4620/4622 Printer Service Manual
PL 7.25
5 Parts List
Revised

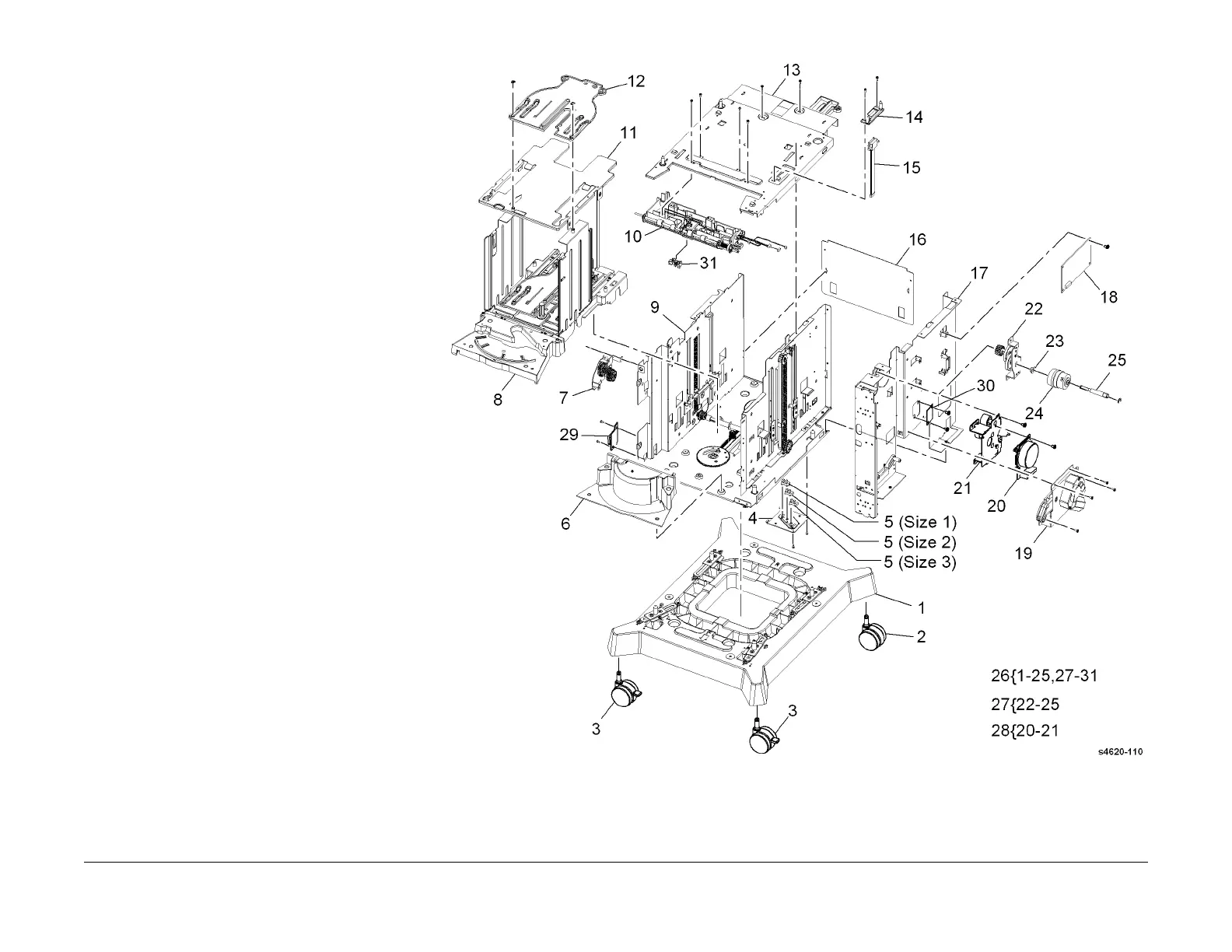

PL 7.25 HCF Assembly
Item Part Description
1 – Base unit (P/O PL 7.25 Item 26)
2 017N00295 Caster (REP 7.41)
3 017N00294 Locking caster
4 – Sensor bracket (P/O PL 7.25 Item 26)
5 110K14300 Size 1 sensor / Size 2 sensor / Size 3
sensor (see NOTE)
6 – Safety cover (P/O PL 7.25 Item 26)
7 007N01669 Reduction gear assembly (REP 7.42)
8 – Lift plate housing (P/O PL 7.25 Item
26)
9 – Left side plate (P/O PL 7.25 Item 26)
10 022N02481 Paper feeder
11 – Lift plate (lower) (P/O PL 7.25 Item
26)
12 – Lift plate (upper) (P/O PL 7.25 Item
26)
13 – Top plate (P/O PL 7.25 Item 26) (REP
7.49)
14 – Harness mount (P/O PL 7.25 Item 26)
15 – Harness (P/O PL 7.25 Item 26)
16 – Rear plate (P/O PL 7.25 Item 26)
17 – Right side plate (P/O PL 7.25 Item 26)
18 140N63469 HCF control board (REP 7.44)
19 127N07669 Lift motor (see NOTE) (REP 7.45)
20 127N07588 Feed motor (see NOTE) (REP 7.48)
21 – Feed motor gear bracket (P/O PL
7.25 Item 28)
22 – Clutch bracket assembly (P/O PL 7.25
Item 27)
23 – Bearing (P/O PL 7.25 Item 27)
24 121N01206 Feed clutch (see NOTE) (REP 7.46)
25 – Clutch shaft (P/O PL 7.25 Item 27)
26 059K77920 HCF assembly
27 121N01205 Clutch assembly
28 007N01667 Feed drive assembly (REP 7.47)
29 110N01452 Front door interlock switch (see
NOTE) (REP 7.43)
30 140N63395 Jumper board
31 – Feed sensor (P/O PL 7.25 Item 26)
(see NOTE)
NOTE: The component control codes are dependent on the
machine configuration.
