Xerox Phaser 4600 Service Manual

04/2016
4-24
Phaser 4600/4620/4622 Printer Service Manual
REP 4.5, REP 6.1
Revised
4 Repairs and Adjustments
REP 4.5 Right Side Chassis Fan
Parts List on PL 4.10 Item 2
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the IP Board Cover, REP 28.1.
3. Remove the Right Cover, REP 28.2.
4. Disconnect P/J38 from the harness.
5. Remove 1 screw (plastic) that secures the fan in the duct.
6. Pull the fan from the duct to remove.

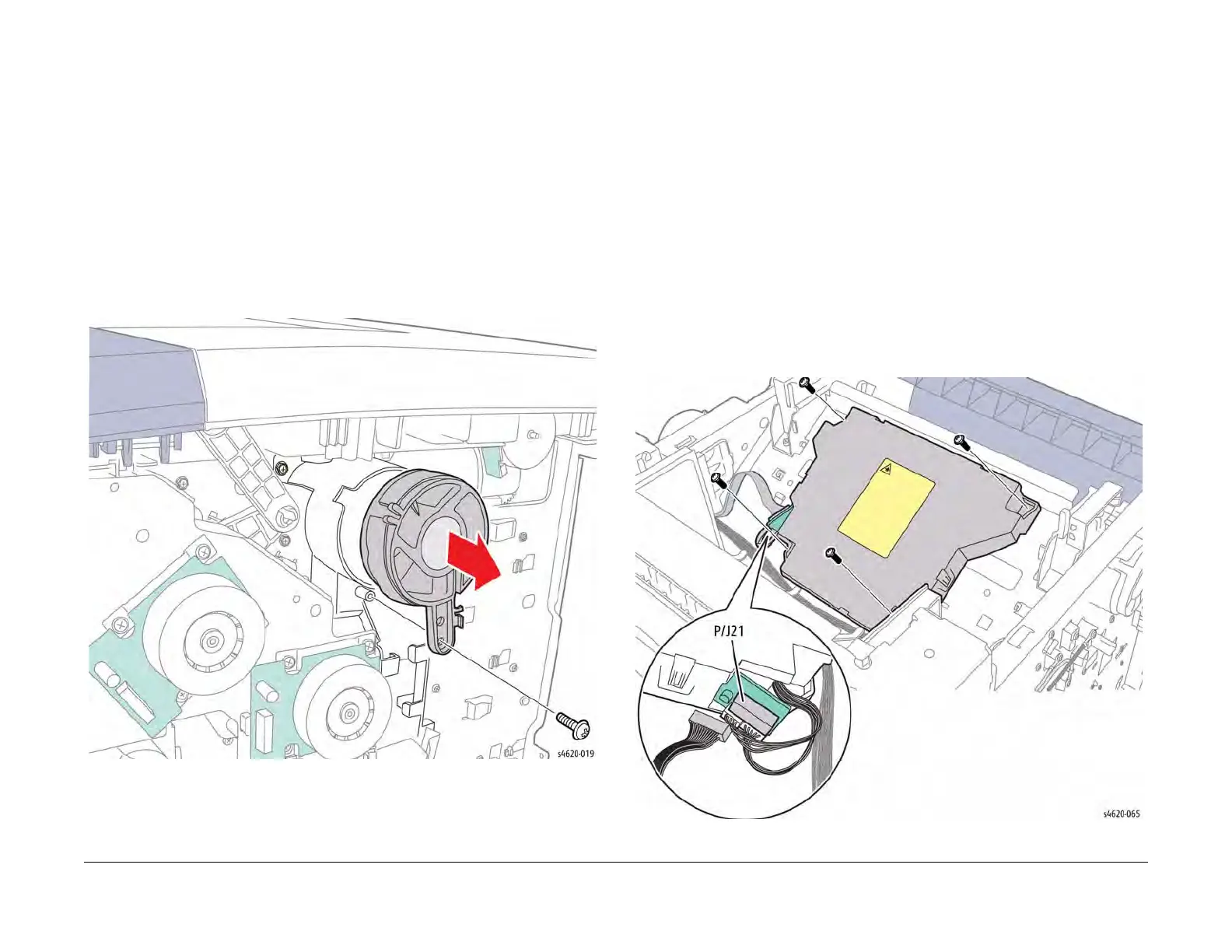

Figure 1 Remove the Right Side Chassis Fan
REP 6.1 Laser Unit
Parts List on PL 6.10 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
NOTE: Laser Unit part numbers vary by model.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the IP Board Cover, REP 28.1.
3. Remove the Right Cover, REP 28.2.
4. Remove the Waste Toner Cartridge.
5. Remove the Left Cover, REP 28.3.
6. Remove the Top Cover, REP 28.5.
7. Disconnect P/J21 from the Laser Unit.
8. Remove 4 screws (metal) that secure the Laser Unit to the chassis, Figure 1.
Figure 1 Remove the Laser Unit
