04/2016
4-152
Phaser 4600/4620/4622 Printer Service Manual
REP 28.4, REP 28.5
Revised
4 Repairs and Adjustments

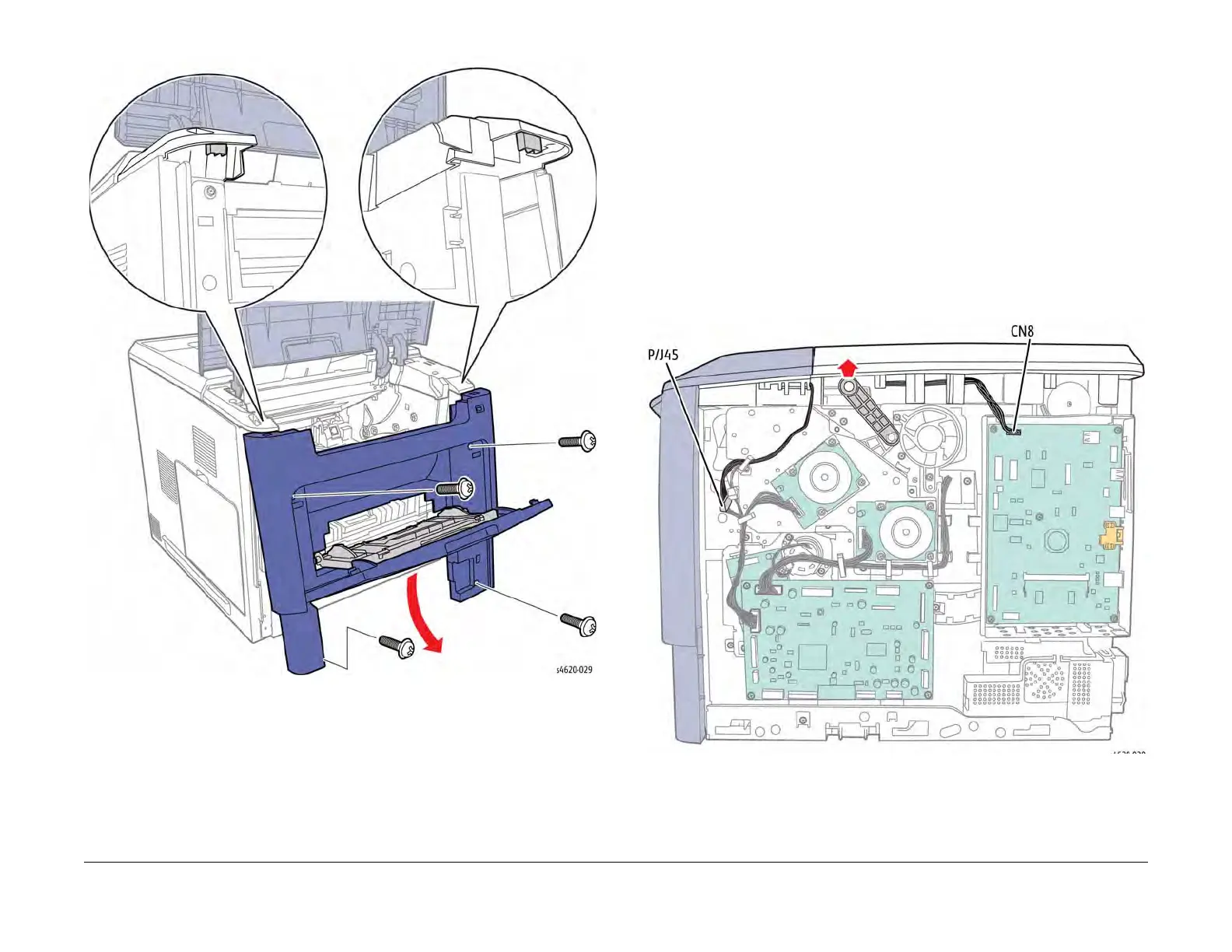

Figure 1 Remove the Front Cover
REP 28.5 Top Cover
Parts List on PL 28.10 Item 7
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Duplex Unit, REP 10.1.
2. Remove the Waste Toner Cartridge.
3. Remove the Left Cover, REP 28.3.
4. Remove the Right Cover, REP 28.2.
5. Release the Top Door linkage from the Main Drive Assembly.
6. Disconnect CN8 from the IP Board and P/J45 from the harness, Figure 1.
Figure 1 Disconnect the Control Panel and Top Door linkage
7. Remove the option panel and raise the top door to remove 4 screws (metal).
8. Release 2 hooks that secure the cover to the chassis, Figure 2.
To Next Page
