Xerox Phaser 4600

04/2016
5-51
Phaser 4600/4620/4622 Printer Service Manual
PL 28.10
5 Parts List
Revised

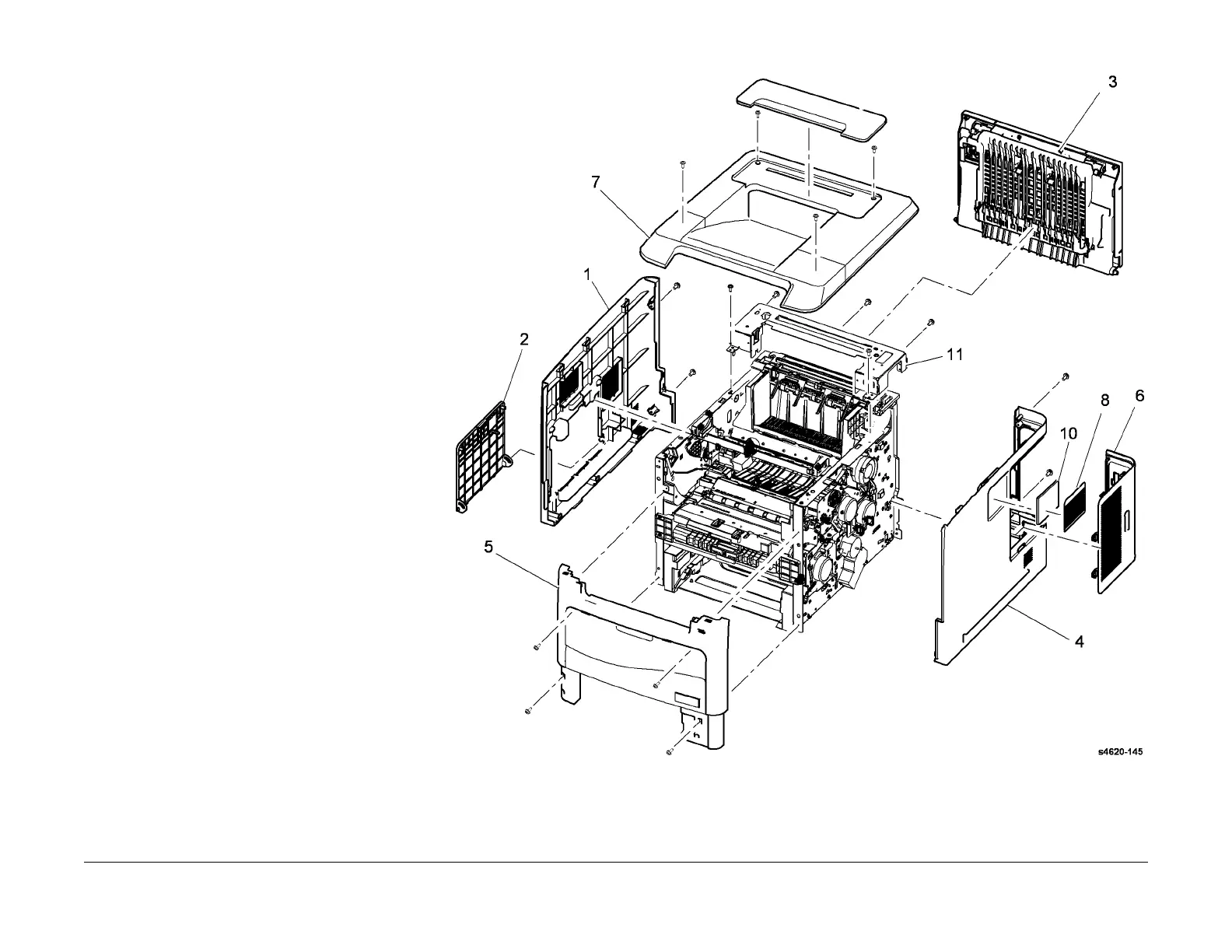

PL 28.10 Main Covers
Item Part Description
1 002N02984 Left cover (REP 28.3)
2 002N03024 Waste toner box cover
3 002N02996 Rear door assembly (REP 28.1)
4 002N02986 Right cover (REP 28.2)
5 002N02995 Front cover assembly (REP 28.4)
6 002N02985 MCU board cover (REP 28.1)
7 – Top cover (REF: PL 28.15) (REP
28.5)
8 – Right fan cover (Not Spared)
10 035N00428 Right seal filter
11 – Rear support bracket (Not Spared)
