04/2016
4-147
Phaser 4600/4620/4622 Printer Service Manual
REP 12.23
4 Repairs and Adjustments
Revised
REP 12.23 Compile Tray Assembly
Parts List on PL 12.35 Item 1
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Remove the top cover, REP 12.18.
5. Disconnect the 5 connections in Figure 1.
6. Remove and disconnect the Finisher Exit Sensor.
7. Release the Compile Tray harness from 6 clips, Figure 1.

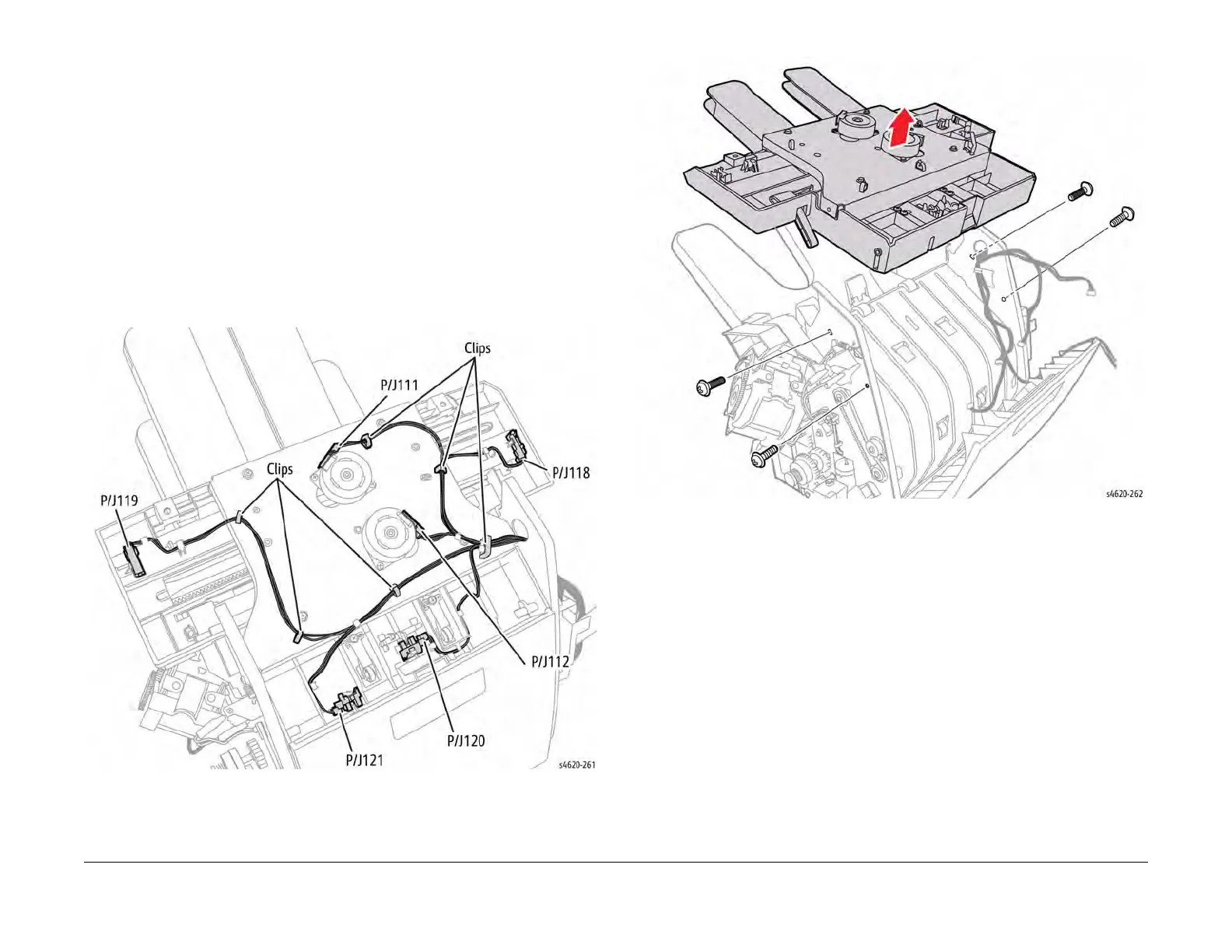

Figure 1 Release the Compile Tray harness
8. Remove 4 screws (2 plastic, 2 metal) that secure the assembly to the Finisher.
9. Lift to remove the Compile Tray from the Finisher,
Figure 2 Remove the Compile Tray Assembly
To Next Page
