04/2016
4-128
Phaser 4600/4620/4622 Printer Service Manual
REP 11.12, REP 11.13
Revised
4 Repairs and Adjustments

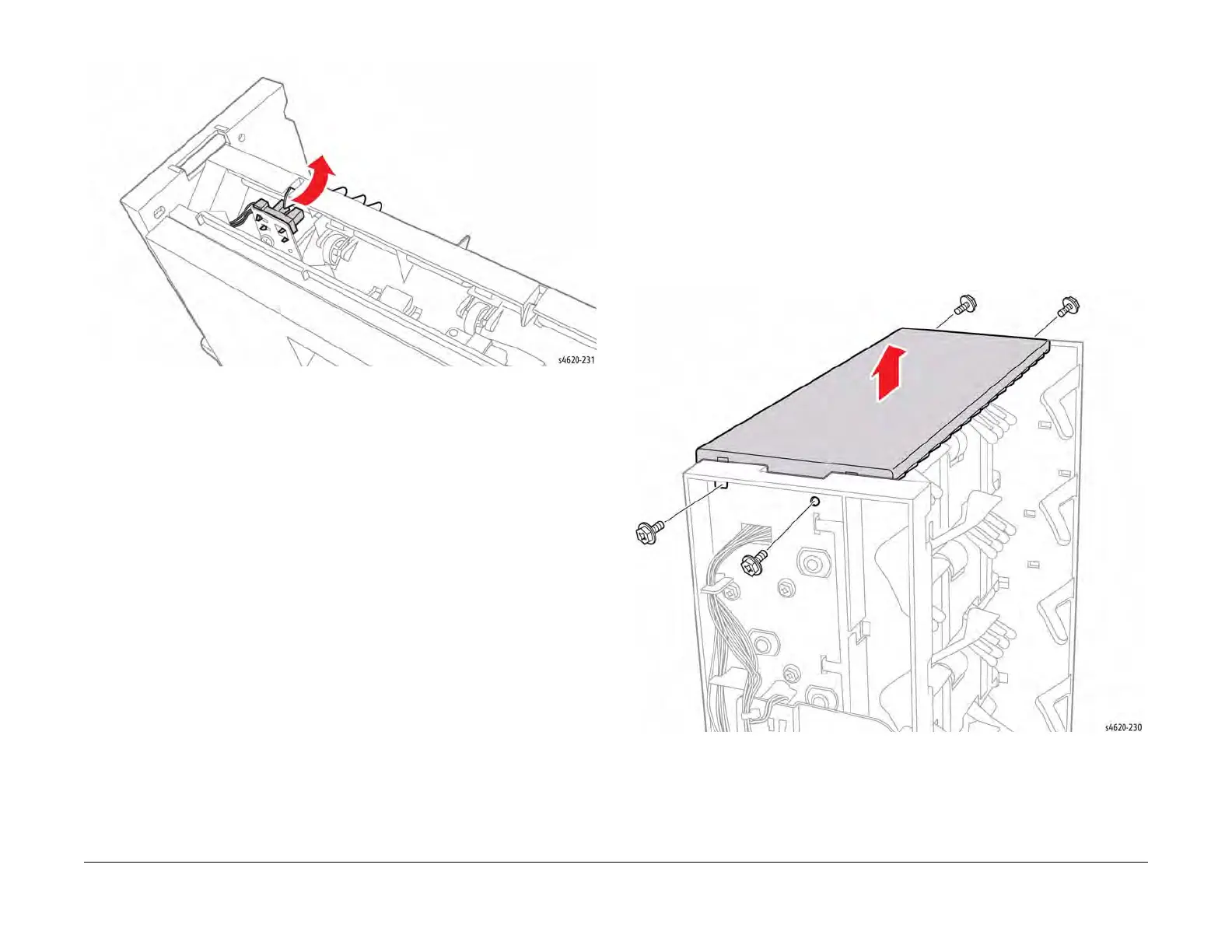

Figure 2 Remove the Stack Full Sensor
REP 11.13 Mailbox Rear Door Interlock Switch
Parts List on PL 11.30 Item 4
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Remove the Mailbox Output Trays, REP 11.1.
2. Separate the Mailbox from the printer, GP 14.
3. Remove the right cover, REP 11.3.
4. Remove the left cover, REP 11.2.
5. Remove 4 screws (plastic) that secure the Top Cover to the Mailbox, Figure 1.
Figure 1 Remove the top cover
6. Lift the hook and slide the switch to release the switch.
7. Slide the insulation off the switch terminals and using a small screwdriver, release the har-
ness connectors from the switch, Figure 2.
To Next Page
