Xerox Phaser 4600 Service Manual

04/2016
4-138
Phaser 4600/4620/4622 Printer Service Manual
REP 12.9
Revised
4 Repairs and Adjustments
REP 12.9 Finisher Exit Gate Cam Shaft
Parts List on PL 12.40 Item 25
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the left cover, REP 12.1.
3. Remove the exit gate actuator, REP 12.7.
4. Remove but do not disconnect the Exit Gate Sensor, REP 12.6.
5. Compress the spring and remove the E-clip that secures the outer bearing in the bracket,
Figure 1.

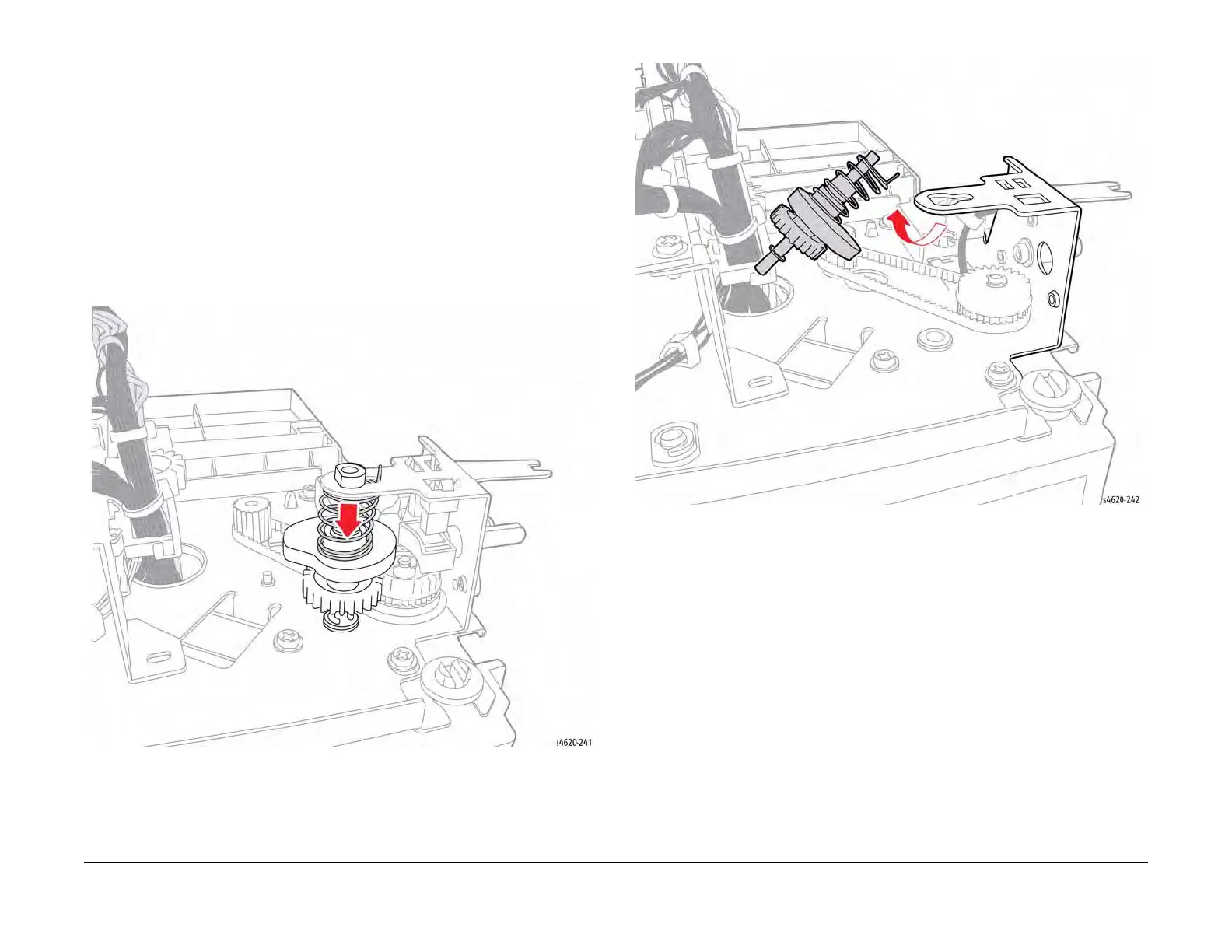

Figure 1 Release the bearing from the bracket
6. Move the shaft outwards to release the shaft from the Finisher, then tilt the shaft up to
remove, Figure 2.
Figure 2 Remove the shaft from the bracket

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
