Xerox Phaser 4600 Service Manual

04/2016
4-137
Phaser 4600/4620/4622 Printer Service Manual
REP 12.8
4 Repairs and Adjustments
Revised

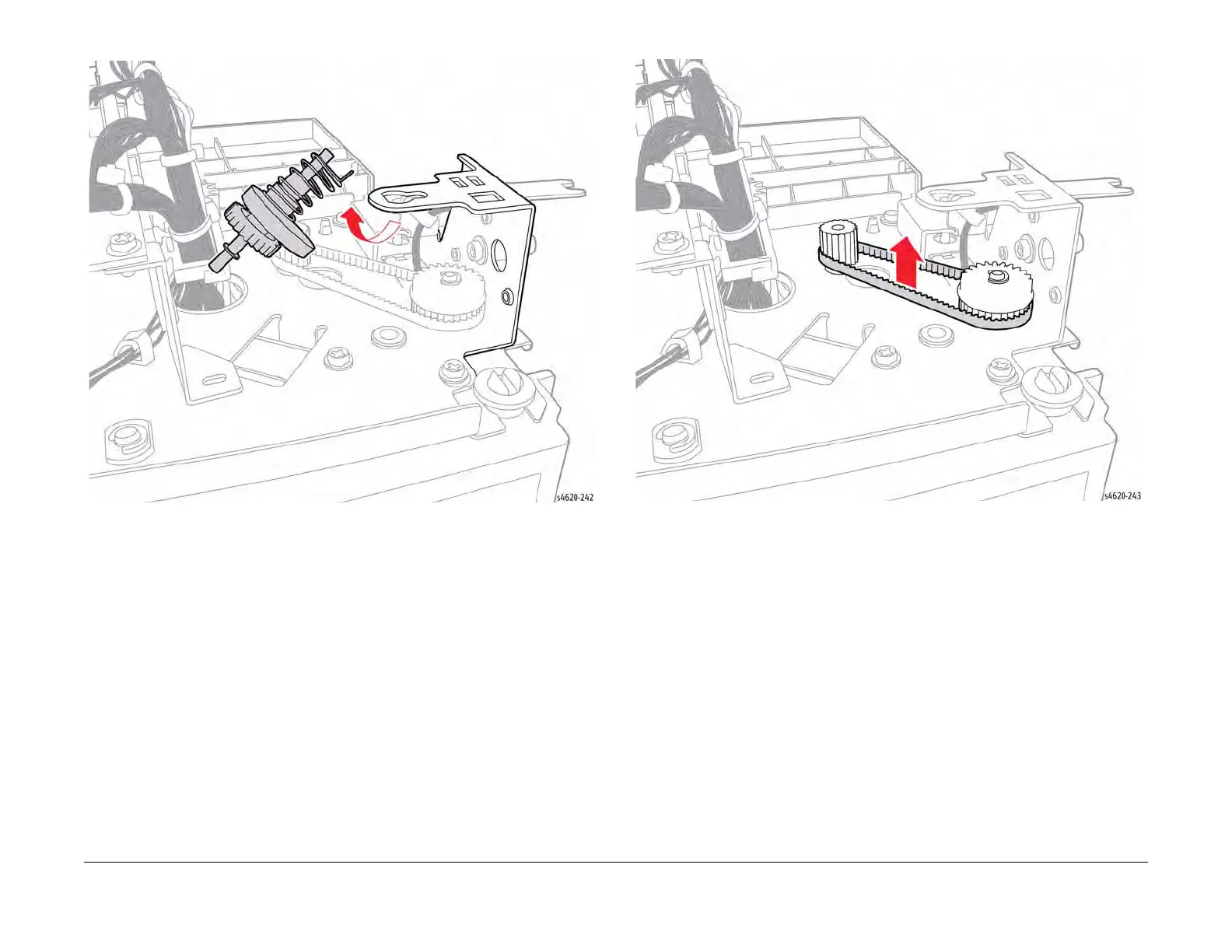

Figure 2 Remove the shaft from the bracket
7. Remove the belt from the entrance motor shaft and pulley, Figure 3.
Figure 3 Remove the Entrance Drive Belt
