Xerox Phaser 4600 Service Manual

04/2016
5-32
Phaser 4600/4620/4622 Printer Service Manual
PL 10.15
Revised
5 Parts List

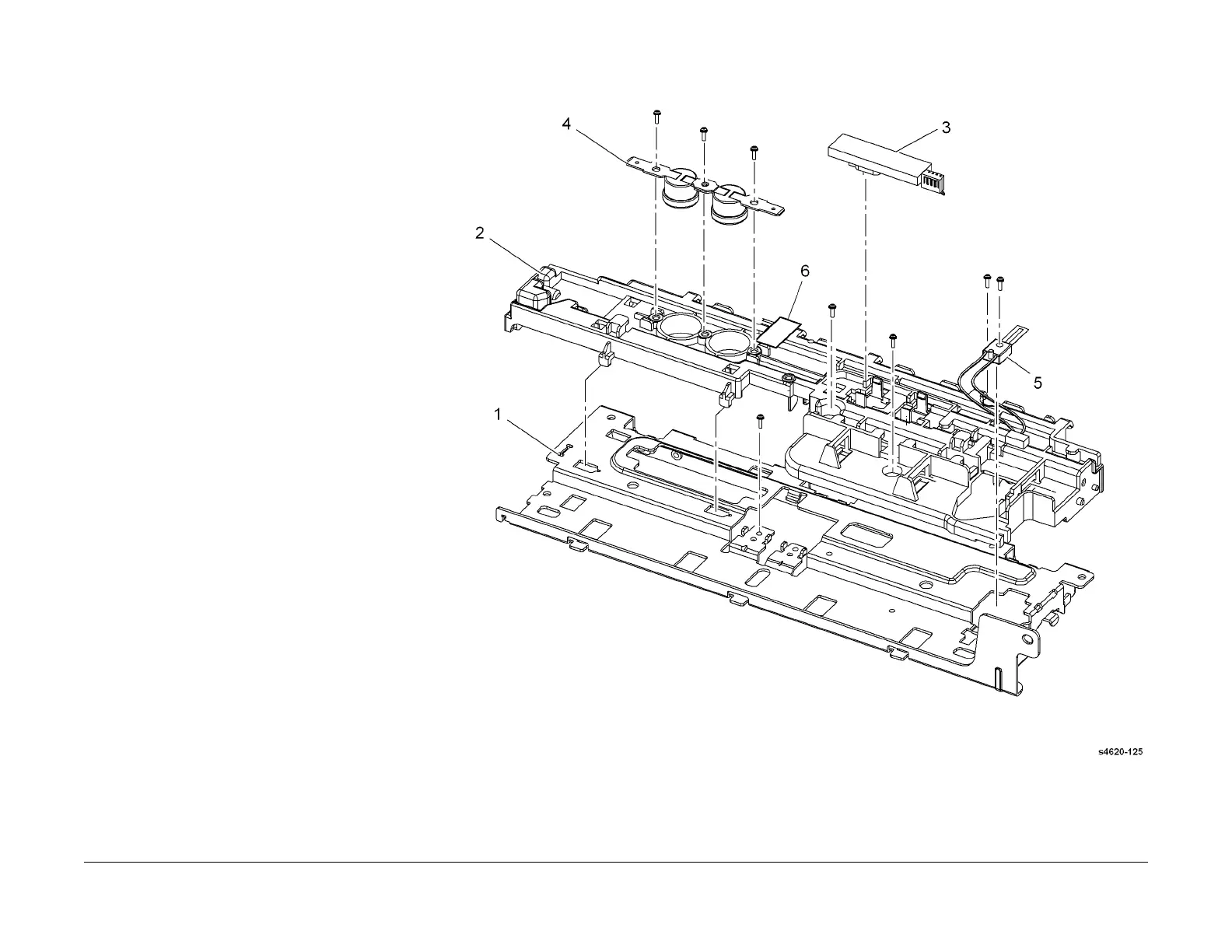

PL 10.15 Upper Fuser Bracket
Assembly
Item Part Description
1 – Upper bracket (Not Spared)
2 – Thermostat holder (Not Spared)
3 130N01561 Thermistor NTC (REP 10.11)
4 – Thermostat (Not Spared) (REP
10.12)
5 130N01641 Thermistor NTC (side)
6 130N01615 Thermistor NTC (center)
