Phaser 4600/4620/4622 Printer Service Manual
REP 2
8.10
Revised
4 Repairs and Adjustments
REP 28.10
Rear Seal
Filter
Part
s List on
PL 28.2
5 Item 12
Removal
1.
Remove the
Rear Door
,
REP 28.6
.
2.
Remove, but do not disconnect the Rear Door Fan,
REP 28.7
.
3.
Remove the filter from the door
,

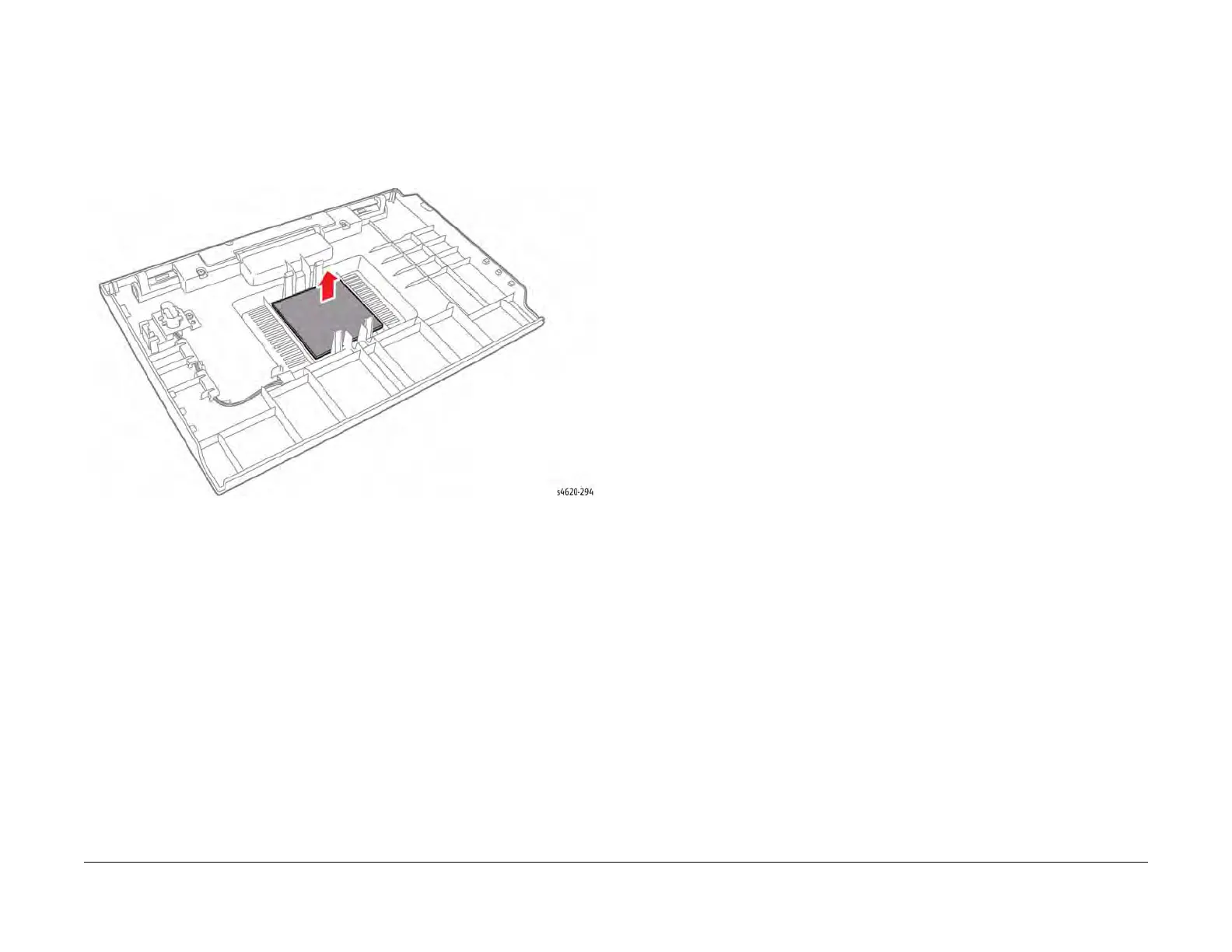

Figure 1
.
Figure 1 Remove the Rear Seal Filter
277
279
