Xerox Phaser 4600 Service Manual

04/2016
5-22
Phaser 4600/4620/4622 Printer Service Manual
PL 8.30
Revised
5 Parts List

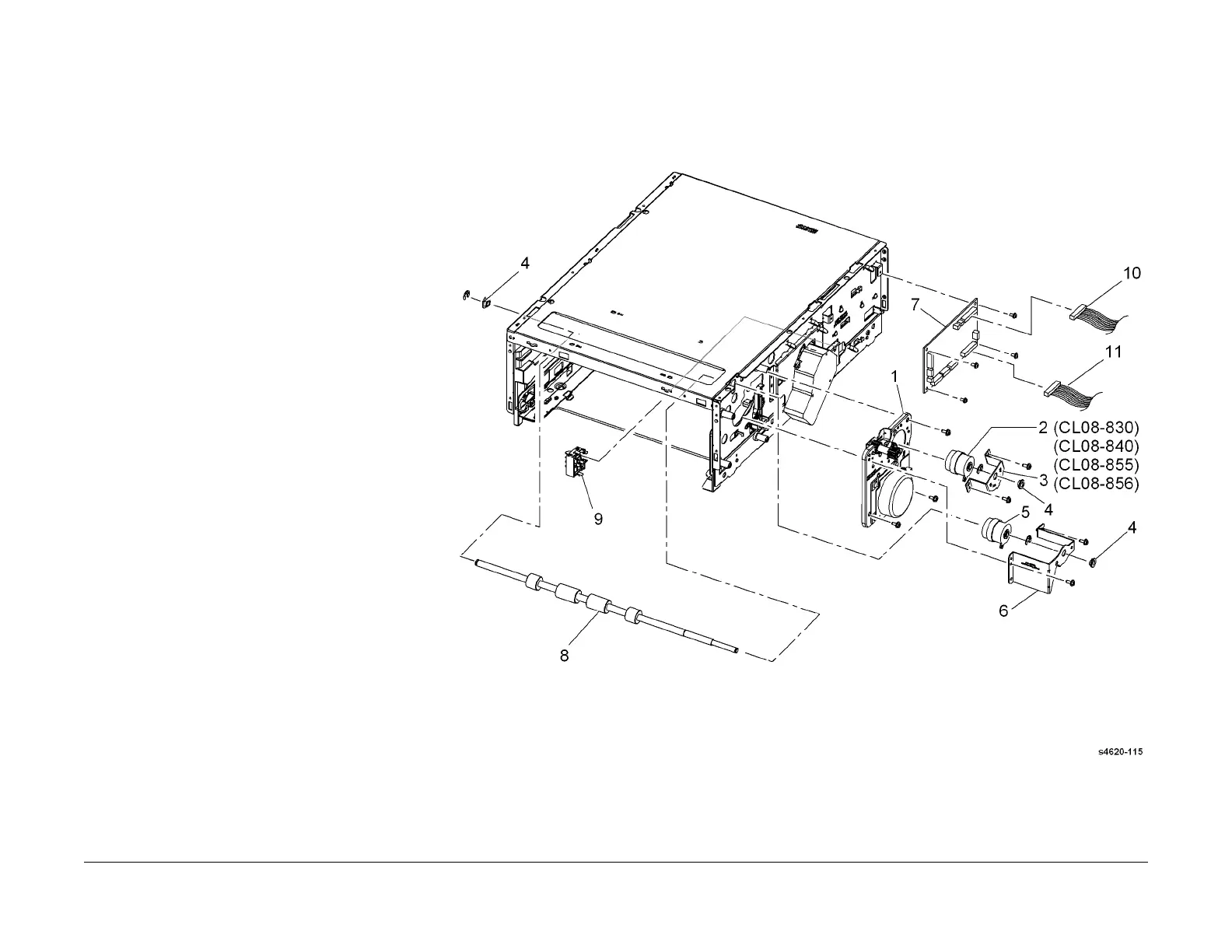

PL 8.30 Optional Feeder Main Drives
Item Part Description
1 007N01666 Feed drive assembly (REP 8.42)
2 005N01116 Tray 3 feed clutch (CL08-830), Tray
4 feed clutch (CL08-840), Tray 5
feed clutch (CL08-855), Tray 6 feed
clutch (CL08-856) (see NOTE)
(REP 8.41)
3 – Bracket (Not Spared)
4 – Bearing (Not Spared)
5 005N01085 Take away clutch (see NOTE) (REP
8.40)
6 – Bracket (Not Spared)
7 140N63468 Feeder board (REP 7.28)
8 – Take away roller (Not Spared) (REP
8.45)
9 – Size switch (Not Spared) (see
NOTE) (REP 7.30)
10 – Upper option harness (Not Spared)
(REP 7.31)
11 – Lower option harness (Not Spared)
(REP 7.32)
NOTE: The component control codes are dependent on the
machine configuration.

Xerox Phaser 4600 Specifications

General

Print Technology	Laser
Print Resolution	Up to 1200 x 1200 dpi
Monthly Duty Cycle	Up to 275, 000 pages
Maximum Paper Capacity	3, 750 sheets
Processor	533 MHz
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet 10/100/1000Base-T
Memory	256 MB
Maximum Paper Size	8.5 x 14 inches
Print Languages	PCL 6, PostScript 3
Duplex Printing	Standard
Weight	25.9 kg
