04/2016
5-44
Phaser 4600/4620/4622 Printer Service Manual
PL 12.15
Revised
5 Parts List

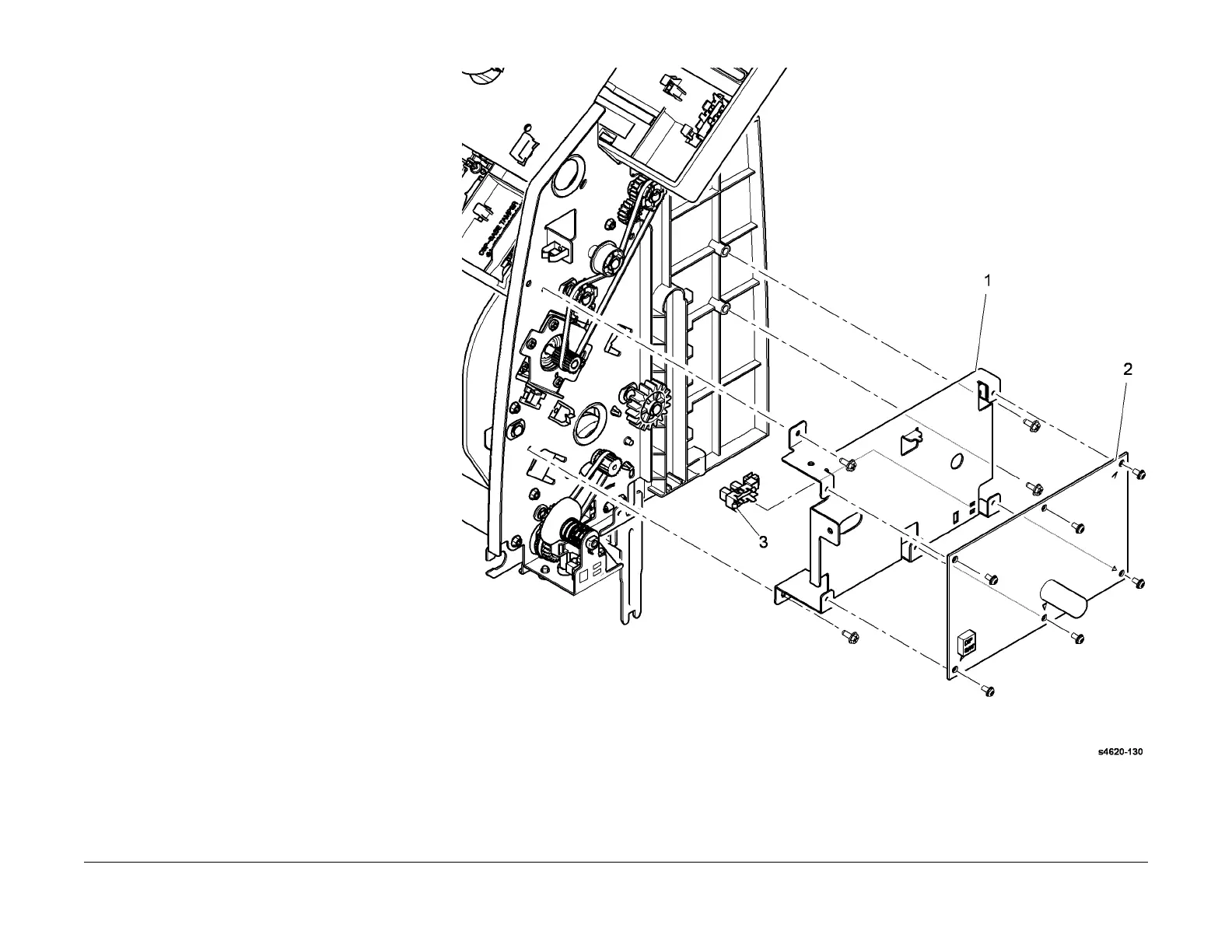

PL 12.15 Finisher Control Board
Item Part Description
1 – Control board bracket (Not Spared)
(REP 12.3)
2 140N63471 Control board (REP 12.2)
3 – Stacker full sensor (Q12-845) (Not
Spared) (REP 12.3)
