Xerox Phaser 4600 Service Manual

04/2016
4-144
Phaser 4600/4620/4622 Printer Service Manual
REP 12.17, REP 12.18
Revised
4 Repairs and Adjustments
REP 12.17 Finisher Rear Door
Parts List on PL 12.10 Item 4
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Release the hinges from the 2 bearings and remove the door, Figure 1.

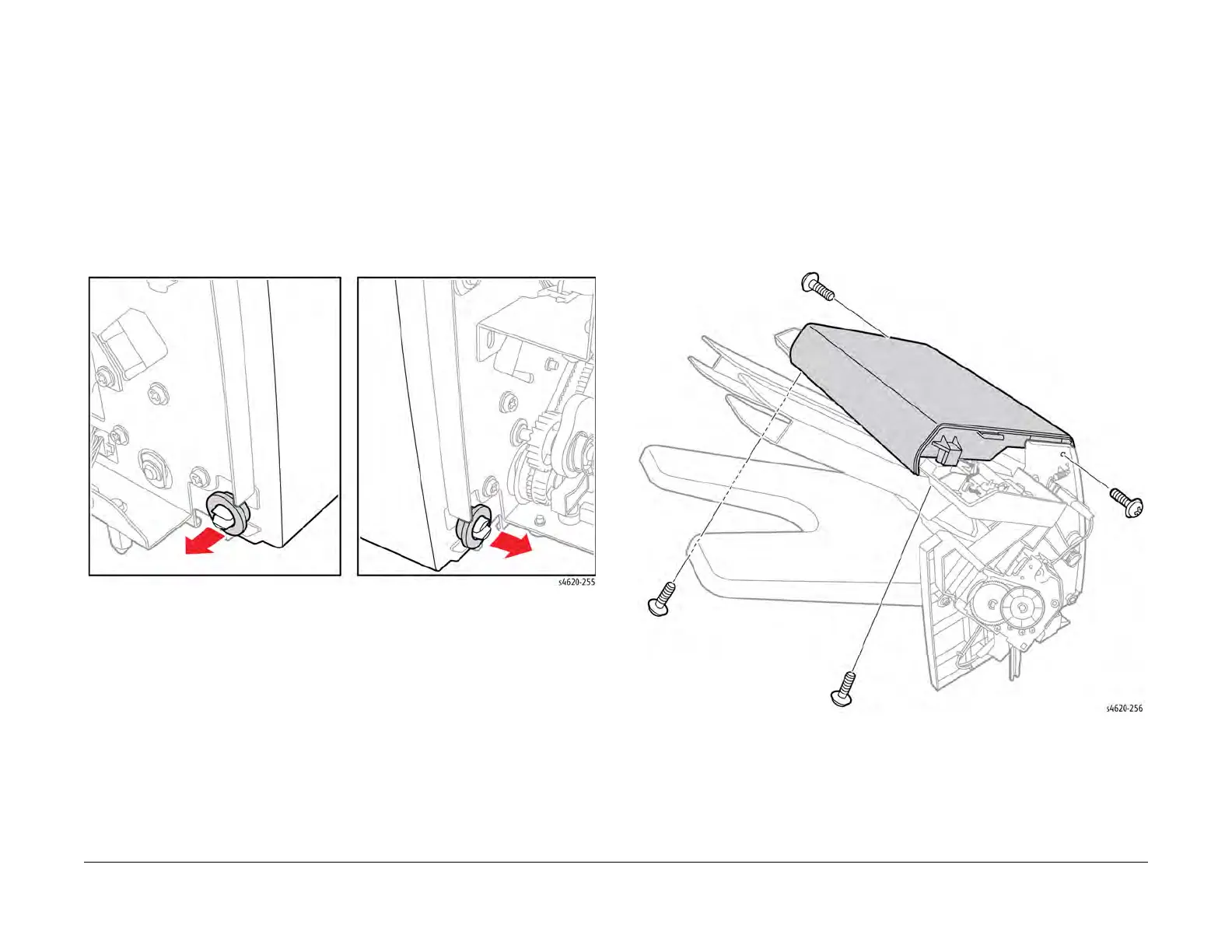

Figure 1 Remove the rear door
Replacement
Install the bearings with the Rear Door closed and hinges in the slots.
REP 12.18 Finisher Top Cover
Parts List on PL 12.10 Item 6
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the Finisher from the printer, GP 14.
2. Remove the right cover, REP 12.11.
3. Remove the left cover, REP 12.1.
4. Remove 4 screws (plastic) that secure the top cover to the Finisher, Figure 1.
Figure 1 Remove the top cover
