Xerox Phaser 4600 Service Manual

04/2016
4-70
Phaser 4600/4620/4622 Printer Service Manual
REP 8.42, REP 8.43
Revised
4 Repairs and Adjustments

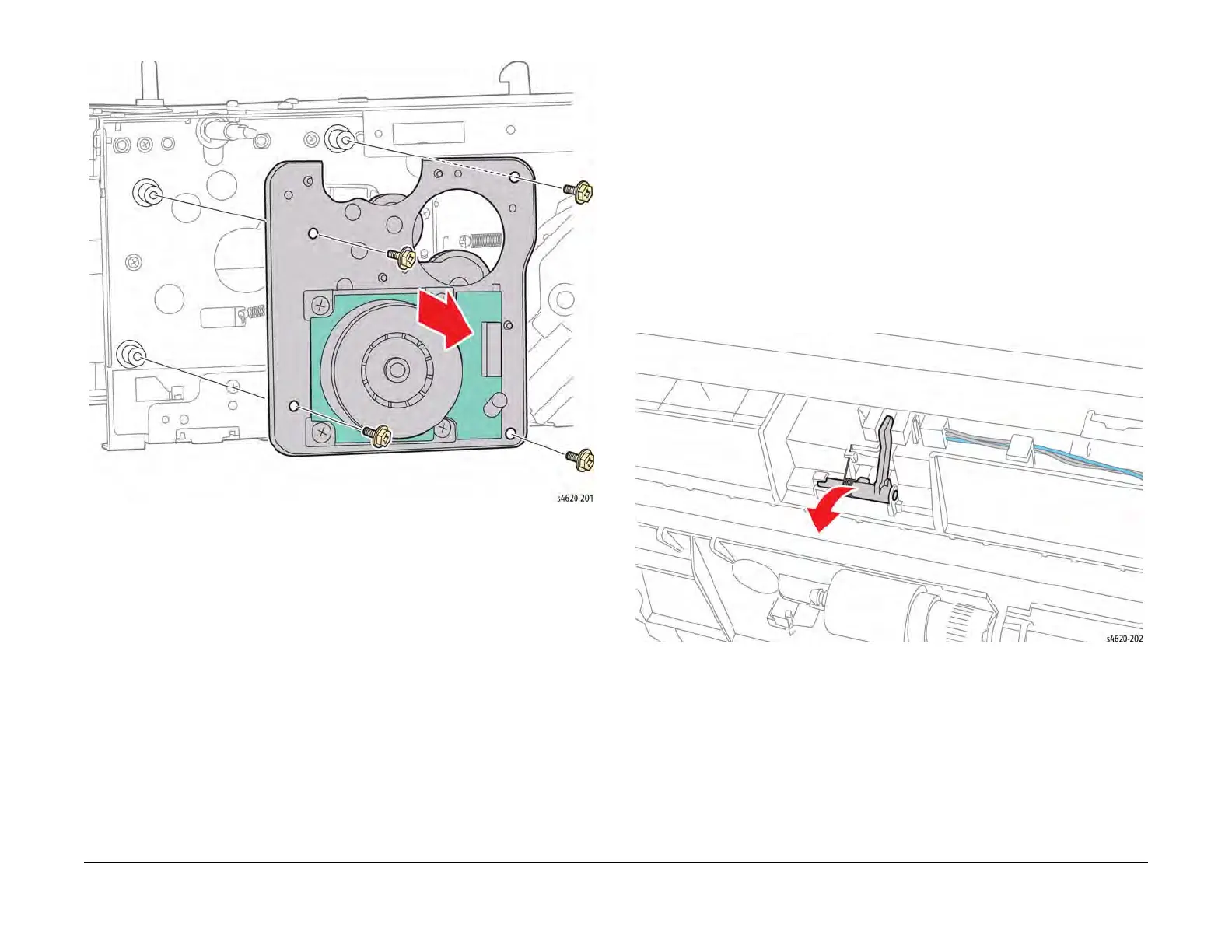

Figure 2 Remove the Feed Drive Assembly
REP 8.43 Feeder Take Away Sensor Actuator
Parts List on PL 8.40 Item 9
Removal
WARNING
Use safe handling procedures when removing the module. Refer to GP XX. The module
is heavy.
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
1. Separate the option feeder from the printer GP XX.
2. Remove the Tray.
3. Remove the Front Cover, REP 7.24.
4. Release the actuator from the tabs to remove, Figure 1.
Figure 1 Remove the Take Away Sensor Actuator
